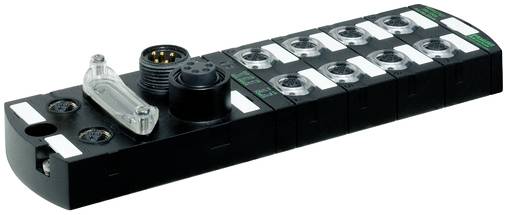

IMPACT67 E DIO16 4P
- SIMATIC S7-200 is easy: programming software with Windows user interface
- instructions for quick access to PLC technology
- easy installation onto a top hat profile rail
- SIMATIC S7-200 is compact: e.g. CPU 222: (W x H x D) 90 x 80 x 62 mm
- own S7-200 net with PPI protocol
- freely programmable interface.
Technical specifications
- Product family: Impact67
- Inputs 16
- Suitable for mounting method: 2-hole screw mounting
- Ethernet/IP system
- CE 1
- Protection class IP67
- Signal type: Digital
- UKCA 1
- Short-circuit-proof: Yes
- Depth: 225
- Outputs: 16
- Width: 63
- Min. Operating temperature: -25
- Height: 39
- Max. Operating temperature: 55
- Min. Storage temperature: -40
- Storage temperature max.: 85
- Connection type 1: X0-X7
- LED-display: Ethernet-connection/ data traffic
- Housing material: Plastic
- Connection type 2: XD1
- Number of slots: 8
- Addressing: BOOTP;DIP switch;DHCP
- CONNECTION TECHNOLOGY I/O M12
- Connection type 3: XD2
- Overload-proof: Yes
- Ethernet/IP 1
- Connection type 4: XF1, XF2
- CULus 1
- Diagnostics by LED: Per module and channel
- Actuator warning: Per channel via LED and BUS
- Diagnostics: Advanced
- Diagnostics via BUS: Per module and channel
- MATERIAL SHORT TEXT: IMPACT67 E DIO16 4P
- Type input: For 3-wire sensors or mechanical switches; PNP
- Operating voltage standard IEC / EN 61131-2
- CIP Sync: Yes
- Composite test revision CT14
- Device level ring: Yes
- Multiple connections: Yes
- Power connection 7/8" (4-pin)
- Operating voltage UA DC:24
- Total current UA max.: 9
- Total current US max.: 9
- Ambient temperature: -40 °C - 85 °C
- Operating voltage US DC: 24
- Sensor current US per input max.: 0.2
- Output current per pin max. 1.6
- 10 lamp load
- Supports quick connection 360
- Product type
Expansion
- No. of digital inputs (max.)
16
- No. of inputs (max.)
16
- No. of outputs (max.)
16
- Operating voltage
24 V DC
- Height
39 mm
- Width
63 mm
- Type
IMPACT67 E DIO16 4P
- Manufacturer part #
55142
- Dim
(W x H x D) 63 x 39 x 225 mm
- Max. ambient temperature
85 °C
- Min. ambient temperature
-40 °C
- Depth
225 mm
- Ethernet ports
8
- Protection class
IP67
- Max. temperature
55 °C
- Min. temperature
-25 °C
- UKCA
yes
