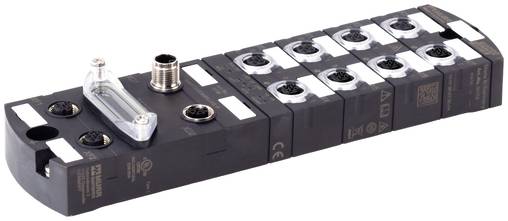

Murrelektronik 55150 Impact67 PN DIO16 M12L 4P Expansion 24 V
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details
IMPACT67 PN DIO16 M12L 4P
- SIMATIC S7-200 is easy: programming software with Windows user interface
- instructions for quick access to PLC technology
- easy installation onto a top hat profile rail
- SIMATIC S7-200 is compact: e.g. CPU 222: (W x H x D) 90 x 80 x 62 mm
- own S7-200 net with PPI protocol
- freely programmable interface.
Technical specifications
- Product family: Impact67
- Inputs 16
- Suitable for mounting method: 2-hole screw mounting
- System: PROFINET
- CE 1
- Supported protocols: PROFINET
- Protection class IP67
- Signal type: Digital
- UKCA 1
- Fast start-up: Yes
- Short-circuit-proof: Yes
- Depth: 225
- Outputs: 16
- Width: 63
- Min. Operating temperature: -25
- Height: 37
- Max. Operating temperature: 55
- Min. Storage temperature: -25
- Storage temperature max.: 70
- Connection type 1: X4-X7
- LED-display: Ethernet-connection/ data traffic
- Housing material: Plastic
- Conformance Class C
- Connection type 2: XD1
- Number of slots: 8
- Addressing: DCP
- CONNECTION TECHNOLOGY I/O M12
- Netload Class III
- Connection type 3: XD2
- Specification V2.3
- Overload-proof: Yes
- IRT network communication: Yes
- Connection type 4: XF1, XF2
- Shared Device/Input: Yes
- CULus 1
- Diagnostics by LED: Per module and channel
- Actuator warning: Per channel via LED and BUS
- Diagnostics: Advanced
- Diagnostics via BUS: Per module and channel
- Material short text: Imact67 PN DIO16 M12L 4P
- Type input: For 3-wire sensors or mechanical switches; PNP
- Operating voltage standard IEC / EN 61131-2
- Cable break: Per port
- Power connection M12 (4-pin)
- Operating voltage UA DC:24
- Total current UA max.: 16
- Total current US max.: 16
- Ambient temperature: -25 °C to 70 °C
- Operating voltage US DC: 24
- Sensor current US per input max.: 0.2
- Output current per pin max. 1.6
- Total current outputs max.: 9
- Number of active connections: 2
- 10 lamp load
- Fast-start-up time max.: 0.5
- Product type
Expansion
- No. of digital inputs (max.)
16
- No. of inputs (max.)
16
- No. of outputs (max.)
16
- Operating voltage
24 V
- Height
37 mm
- Width
63 mm
- Type
Impact67 PN DIO16 M12L 4P
- Manufacturer part #
55150
- Dim
(W x H x D) 63 x 37 x 225 mm
- Max. ambient temperature
55 °C
- Min. ambient temperature
-25 °C
- Depth
225 mm
- Ethernet ports
8
- Protection class
IP67
- Max. temperature
55 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762703 Murrelektronik 55150 Impact67 PN DIO16 M12L 4P Expansion 24 V
Datasheet 3762703 Murrelektronik 55150 Impact67 PN DIO16 M12L 4P Expansion 24 V
User & Safety Instructions
User & Safety Instructions 3762703 Murrelektronik 55150 Impact67 PN DIO16 M12L 4P Expansion 24 V
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Application areas such as:
small and special machine construction: packaging, strapping and coiling machines · food industry: kneading, cutting machines, mix granulating machines · laboratories: laboratory mixers, heating cabinets, vacuum pumps, suction equipment.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU by a connector.
Application areas such as:
small and special machine construction: packaging, strapping and coiling machines · food industry: kneading, cutting machines, mix granulating machines · laboratories: laboratory mixers, heating cabinets, vacuum pumps, suction equipment.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU by a connector.
