Name: Murrelektronik 55308 MVK-MP DIO8 (DI8) Expansion 24 V DC
Brand: Murrelektronik
SKU: 3762699

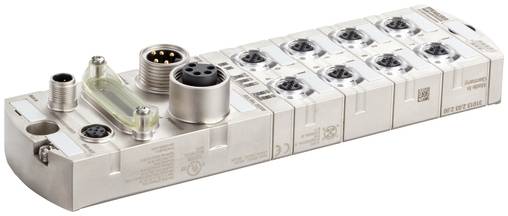

Industrial electronic control module with multiple connected sensor ports and translucent cover, shown on a white background.<br>

Datasheet (PDF)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

MVK I/A compact module, metal design

SIMATIC S7-200 is easy: programming software with Windows user interface
instructions for quick access to PLC technology
easy installation onto a top hat profile rail
SIMATIC S7-200 is compact: e.g. CPU 222: (W x H x D) 90 x 80 x 62 mm
own S7-200 net with PPI protocol
freely programmable interface.

Technical specifications

Product family: MVK
Inputs 8
Suitable for mounting method: 2-hole screw mounting
System: Profibus
CE 1
Protection class IP67
Signal type: Digital
UKCA 1
Short-circuit-proof: Yes
Depth: 225
Outputs: 8
Width: 63
Min. Operating temperature: -25
Height: 42
Max. Operating temperature: 55
Min. Storage temperature: -25
Storage temperature max.: 70
Connection type 1: 4-7
LED-display: Ethernet-connection/ data traffic
Case material: metal
Connection type 2: Bus in
Number of slots: 8
CONNECTION TECHNOLOGY I/O M12
Connection type 3: Bus out
Overload-proof: Yes
Connection type 4: Power in
CULus 1
Short-circuit diagnosis: Yes
Connection type 5: Power out
Diagnostics by LED: Per module and channel
Actuator warning: Per channel via LED and BUS
Overload diagnosis: Yes
Diagnostics: Advanced
Address setting: Rotary switch
Diagnostics via BUS: Per module and channel
MATERIAL SHORT TEXT MVK-MP DIO8 (DI8)
Type input: For 3-wire sensors or mechanical switches; PNP
Operating voltage standard IEC / EN 61131-2
Cable break: Per port
Power connection 7/8" (5-pin)
Operating voltage UA DC:24
Total current UA max.: 9
Total current US max.: 9
Ambient temperature: -25 °C to 70 °C
Operating voltage US DC: 24
Sensor current US per input max.: 0.2
Address range max.: 99
Output current per pin max. 1.6
Min. Address range: 1
10 lamp load

Product type: Expansion

No. of digital inputs (max.): 8

No. of inputs (max.): 8

No. of outputs (max.): 8

Operating voltage: 24 V DC

Height: 42 mm

Width: 63 mm

Type: MVK-MP DIO8 (DI8)

Manufacturer part #: 55308

Dim: (W x H x D) 63 x 42 x 225 mm

Max. ambient temperature: 70 °C

Min. ambient temperature: -25 °C

Depth: 225 mm

Ethernet ports: 8

Protection class: IP67

Max. temperature: 55 °C

Min. temperature: -25 °C

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3762699 Murrelektronik 55308 MVK-MP DIO8 (DI8) Expansion 24 V DC

User & Safety Instructions

User & Safety Instructions 3762699 Murrelektronik 55308 MVK-MP DIO8 (DI8) Expansion 24 V DC

Description

The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Application areas such as:
small and special machine construction: packaging, strapping and coiling machines · food industry: kneading, cutting machines, mix granulating machines · laboratories: laboratory mixers, heating cabinets, vacuum pumps, suction equipment.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU by a connector.
