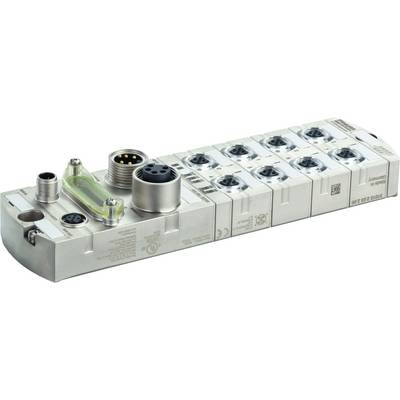

A rectangular, silver electronic module with multiple ports, slots, and cable connections for industrial applications.

Image similar

A rectangular, silver electronic module with multiple ports, slots, and cable connections for industrial applications.

Image similar

Packaging type

Piece

Product type

Sensor & actuator box (active)

No. of signal spaces

16

Type

55309

Status indicator

LED

Datasheet (PDF)

Murrelektronik

Fast track dispatch on Mon, 5 Oct

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 789.08 / piece)

€ 789.08

plus VAT.

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

MVK I/O compact module, metal design Profibus DP, 16 multi-functional channels MVK-MP DIO8 + 8xDiagnose/DIO

Connection type: M12 socketStatus display with LED
This text is machine translated.

Technical specifications

Actuator supply UA: 24 V DC, max. 9 A
Actuator warning: Per channel per LED and BUS
Diagnostics via BUS: Per module and channel
Diagnostics via LED: Per module and channel
Fieldbus: PROFIBUS 12 Mbit/s; M12, B-coded
Short circuit and overload: Yes
Lamp load 10 W
Cable break: Per port
Pin 2: Input/Output/Diagnostic
Pin 4: Input/output
Switching current per output: Max. 1.6 A (short-circuit and overload-proof)
Sensor supply US: 24 V DC, max. 200 mA (M12 socket), short-circuit and overload proof
Monitoring - no voltage: Yes
Monitoring - undervoltage: Yes

Packaging type: Piece

Product type: Sensor & actuator box (active)

No. of signal spaces: 16

Type: 55309

Status indicator: LED

Signal type: PNP

Connection: Screws

Width: 63 mm

Length: 225 mm

: IP67

Max. power rating per slot: 1.6 A

Total current (direct supply): 9 A

Max. temperature: +55 °C

Min. temperature: -25 °C

Connector type (distribution boxes): M12 socket

Case material: Metal

Total no. of pins: 5

Manufacturer part #: 55309

Content: 1 pc(s)

Number of pins: 5

Height: 42 mm

RoHS-compliant: Yes

Power rating (total): 9 A

Power rating per I/O: 1.6 A

UKCA: not relevant

Documents & Downloads

Datasheet

Datasheet 2313089 Murrelektronik 55309 55309 Sensor & actuator box (active) M12 splitter + steel thread 1 pc(s) Piece

User & Safety Instructions

User & Safety Instructions 2313089 Murrelektronik 55309 55309 Sensor & actuator box (active) M12 splitter + steel thread 1 pc(s) Piece
