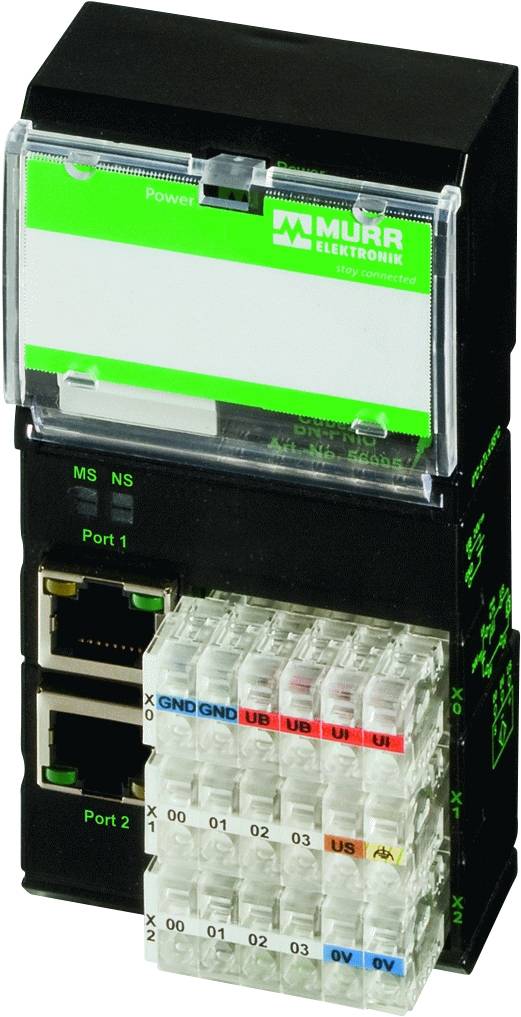

Murrelektronik 56006 56006 IO module RJ45 socket No. of digital inputs: 8
EAN:
Part number:
Item no:
Product type
IO module
Interfaces
RJ45 socket
Type
56006
Operating voltage
24 V DC
Height
117 mm
Datasheet (PDF)
Number
Total (€ 424.37 / piece)
€ 424.37
plus VAT.
14-day return policy included
Technical specifications
- Addressing: DCP
- Diagnostics via BUS: Per module and channel
- Input filter: 1 ms
- Fieldbus: Ethernet 10/100 Mbit/s; 2× RJ45 (socket)
- Electrical isolation: 500 V DC between I/O and system electronics
- I/O capacity: Max. 1 024 bytes (input), max. 1 024 bytes (output)
- I/O slots: 8× spring-loaded terminals, max. 2.5 mm²
- Internal system connection: 4× spring-loaded terminals, max. 2.5 mm² (max. 12 A)
- Terminal series X2 (4 channels): Input
- Terminal series X3 (4 channels): Input
- Short circuit and overload: Yes
- Machine Option Management: Yes
- Protection class: IP20
- Sensor supply US: 24 V DC (EN 61131-2), max. 700 mA per module
- Specification: V2.2, Conformance Class B.
- Power consumption maximum 150 mA
- Temperature range 0...+55 °C (storage temperature -20...+85 °C)
- Monitoring - no voltage: no.
- Monitoring - undervoltage: Yes
- Sensor system/actuator supply: 4× spring-loaded terminals, max. 2.5 mm² (max. 12 A)
- Product type
IO module
- Interfaces
RJ45 socket
- Type
56006
- Operating voltage
24 V DC
- Height
117 mm
- Length
47 mm
- Width
56 mm
- Max. modules
15
- No. of digital inputs
8
- Dim
(L x W x H) 47 x 56 x 117 mm
- Control LEDs
Yes
- Manufacturer part #
56006
- Fitting type (details)
Can be snapped onto mounting rail
- Status LEDs
1
- UKCA
yes
