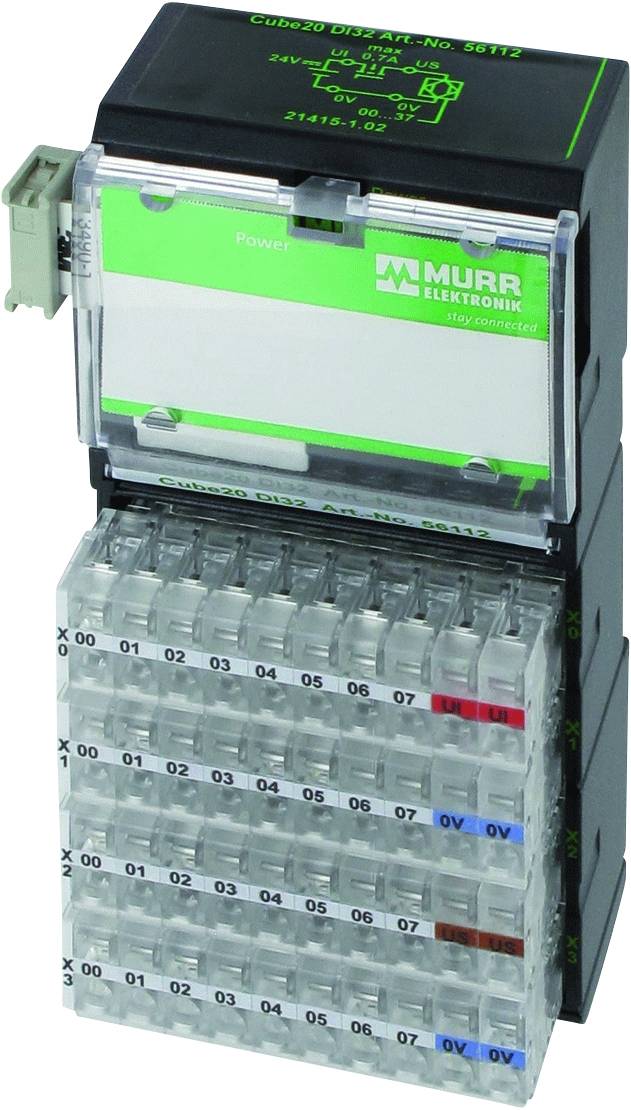

Murrelektronik 56112 56112 GPI module No. of digital inputs: 32
EAN:
Part number:
Item no:
Product type
GPI module
Type
56112
Height
117 mm
Length
47 mm
Width
56 mm
Datasheet (PDF)
Number
Total (€ 239.50 / piece)
€ 239.50
plus VAT.
Only 1 Piece(s) available
Technical specifications
- Diagnostics via BUS: Per module and channel
- Input filter: 1 ms
- Fieldbus: Ribbon cable connection
- Electrical isolation: 500 V DC between inputs and internal communication
- I/O slots: 32× spring-loaded terminals, max. 2.5 mm²
- Short circuit and overload: Yes
- Protection class: IP20
- Sensor supply US: 24 V DC (EN 61131-2), max. 700 mA per module
- Power consumption maximum 25 mA
- Temperature range 0...+55 °C (storage temperature -20...+85 °C)
- Monitoring - no voltage: no.
- Monitoring - undervoltage: Yes
- Supply module: Via system connection
- Sensor system/actuator supply: 8× Spring-loaded terminals, max. 2.5 mm² (max. 12 A)
- Product type
GPI module
- Type
56112
- Height
117 mm
- Length
47 mm
- Width
56 mm
- No. of digital inputs
32
- Dim
(L x W x H) 47 x 56 x 117 mm
- Control LEDs
Yes
- Manufacturer part #
56112
- Fitting type (details)
Can be snapped onto mounting rail
- Status LEDs
1
- UKCA
yes
