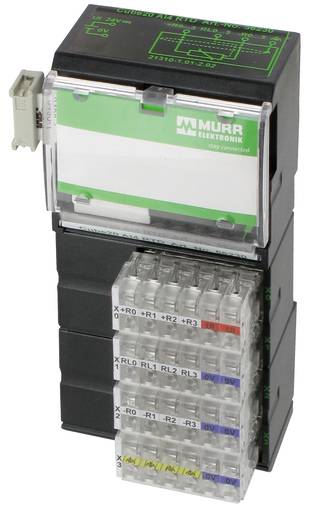

Murrelektronik 56230 Cube20 AI4 RTD Expansion
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Cube20 analogue input module
- SIMATIC S7-200 is easy: programming software with Windows user interface
- instructions for quick access to PLC technology
- easy installation onto a top hat profile rail
- SIMATIC S7-200 is compact: e.g. CPU 222: (W x H x D) 90 x 80 x 62 mm
- own S7-200 net with PPI protocol
- freely programmable interface.
Technical specifications
- Product family: Cube20
- Inputs 4
- Suitable for mounting type: (EN 60715);mounting rail
- System: Cube
- CE 1
- Protection class: IP20
- Signal type: Analogue
- UKCA 1
- Depth: 47
- Width: 56
- Mounting type: Snapped on
- Min. Operating temperature: 0
- Height: 117
- Max. Operating temperature: 55
- Min. Storage temperature: -20
- Storage temperature max.: 85
- Connection type 1: X0
- LED-display: Ethernet-connection/ data traffic
- Housing material: Plastic
- Connection type 2:X1
- Connection technology I/O: Terminals
- Connection cross-section max.: 2.5
- Connection type 3:X2
- Connection type 4:X2
- CULus 1
- Max. Power consumption: 25
- Short-circuit diagnosis: Yes
- Diagnostics by LED: Per module
- Module supply: Via system connection
- Overload diagnosis: Yes
- Diagnostics: Basis
- Diagnostics via BUS: Per module and channel
- Material short text: Cube20 AI4 RTD
- Type input: 1000;PT100;NI100;200;R 0...3000 Ω;120;500
- Total current UA max.: 4
- Total current US max.: 4
- Ambient temperature: -20 °C - 85 °C
- Conversion time analog input per channel max.: 600
- Idle current external max. 70
- Product type
Expansion
- No. of analogue inputs
4
- No. of inputs (max.)
4
- Height
117 mm
- Width
56 mm
- Type
Cube20 AI4 RTD
- Manufacturer part #
56230
- Dim
(W x H x D) 56 x 117 x 47 mm
- Max. ambient temperature
85 °C
- Min. ambient temperature
-20 °C
- Depth
47 mm
- Cross section (inflexible) (max.)
2.5 mm²
- Protection class
IP20
- Max. temperature
55 °C
- Min. temperature
0 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762705 Murrelektronik 56230 Cube20 AI4 RTD Expansion
Datasheet 3762705 Murrelektronik 56230 Cube20 AI4 RTD Expansion
User & Safety Instructions
User & Safety Instructions 3762705 Murrelektronik 56230 Cube20 AI4 RTD Expansion
Description
The SIMATIC S7-200 family offers a broad spectrum of modules suitable for the most varied applications. The newly available CPU types and expansion modules enable universal automation concepts with 10 to 248 inputs/outputs. The products of the S7-200 family which are optimally matched to each other also make it easy to change and expand the automation solution in the future.
Application areas such as:
small and special machine construction: packaging, strapping and coiling machines · food industry: kneading, cutting machines, mix granulating machines · laboratories: laboratory mixers, heating cabinets, vacuum pumps, suction equipment.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU by a connector.
Application areas such as:
small and special machine construction: packaging, strapping and coiling machines · food industry: kneading, cutting machines, mix granulating machines · laboratories: laboratory mixers, heating cabinets, vacuum pumps, suction equipment.
The CPUs are each offered in 5 different variants, with various connection and control voltages. The PPI interface built into all CPUs enables point-to-point connections to PG/PC, SIMATIC OP, expanded SIMATIC S7-200 and user-defined end devices (printer, bar code reader). With PG/PC or OP as master, a maximum of 31 SIMATIC S7-200 devices can be connected together. If additional inputs/outputs are required, a variety of different expansion modules is available. These are simply linked to the CPU by a connector.
