Buy Murrelektronik 57106 IO module PROFINET

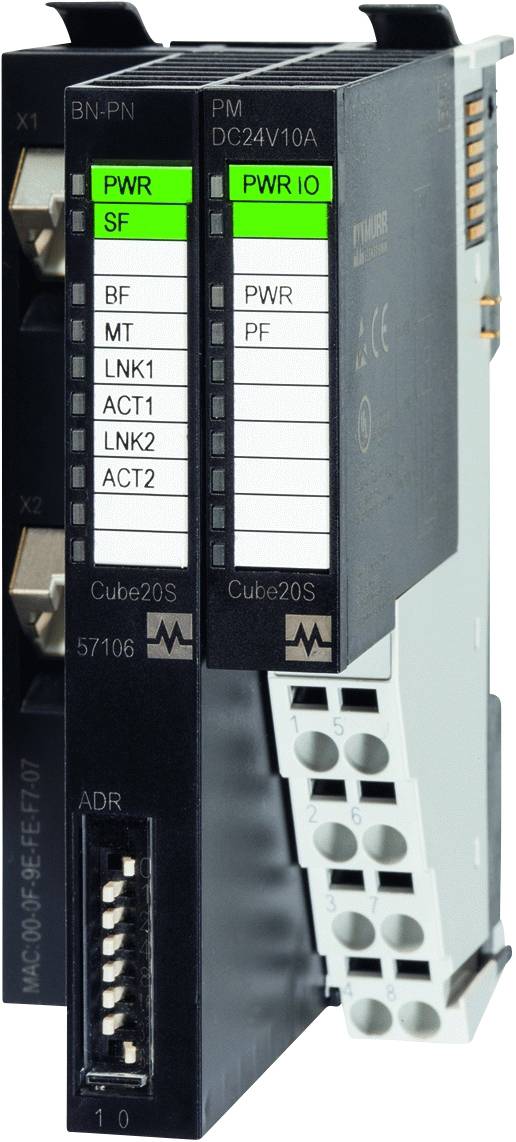

Image similar

Product type

IO module

Interfaces

PROFINET

Type

57106

Operating voltage

24 V DC

Height

109 mm

Datasheet (PDF)

Dispatches on Wed, 14 Oct

98 Piece(s)

Sales and shipping:

Piece(s)

Total (€ 533.61 / piece)

€ 533.61

plus VAT.

14-day return policy included

Technical specifications

Addressing: DCP
Connection type: Spring-loaded terminal: Max. 1.5 mm² (max. 10 A)
Output voltage (I/OS/backplane): 24 V DC/5 V DC
Output current (I/OS/backplane): 10 A/3 A.
Diagnosis by BUS: Per module
Fieldbus: Ethernet 10/100 Mbit/s; 2× RJ45 (socket)
I/O capacity: Max. 512 bytes (input), max. 512 bytes (output)
Internal system connection: 4× spring-loaded terminals, max. 1.5 mm² (max. 10 A)
Short circuit and overload: Yes
Machine Option Management: Yes
MRP: Yes
Protection class: IP20
Shared Device/Input: Yes, for 3 controllers
Specification: V2.2, Conformance Class B.
Power consumption maximum 95 mA
Temperature range: 0...+60 °C (storage temperature -25...+70 °C)
Monitoring - no voltage: Yes
Low Voltage Monitoring: no.
Sensor system/actuator supply: 4× spring-loaded terminals, max. 1.5 mm² (max. 10 A)
