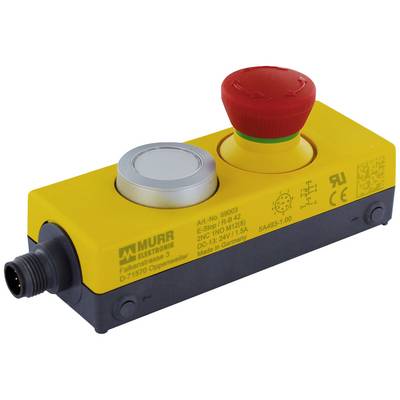

Murrelektronik 69004 Kill button for emergency power-off Red 1 pc(s) Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Kill button
Operation type
Button
Mounting type
Clip mount
Switch/button features
for emergency power-off
Datasheet (PDF)
Number
Total (€ 163.86 / piece)
€ 163.86
plus VAT.
14-day return policy included
Technical specifications
- OPERATING VOLTAGE 1...36 V DC; 30 V DC (UL)Operating current 1.5 AE-STOP / R-B 42 2NC 1NO L M12(8)With M12 connection8-poleEmergency stop button2 NC (forced opening)1 illuminated button (1 closer)Delivery scopeButton caps flat, transparent clear, red, yellow, green, blueIDENTIFICATION PLATES, O, I, RMounting type with rear clipMaterial (contact) AG NiTemperature range -25...+70 °C (storage temperature -25...+85 °C)Lambda (d) 20% (N/C)B10d 250 000Mech./electr. 50 000 operations, load/temperature dependantProtection class IP65Connection type M12 (8-pin)
- Packaging type
Piece
- Product type
Kill button
- Switch/button features
for emergency power-off
- Casing/button colour
Red
- Functions
latch/momentary
- Operation type
Button
- Mounting type
Clip mount
- Print motif
EMERGENCY STOP
- Contact type
2 breakers
- No. of contacts
3
- Contact material
AgNi
- Number of pins
8
- Connection
Jack connector
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Depth
42 mm
- Width
124 mm
- Height
52 mm
IP65
- Content
1 pc(s)
- Type
69004
- Dim
(W x H x D) 124 x 52 x 42 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2527584 Murrelektronik 69004 Kill button for emergency power-off Red 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 2527584 Murrelektronik 69004 Kill button for emergency power-off Red 1 pc(s) Piece
Description
Emergency-off/emergency-stop button with 2 positively-opening contacts in the IP65 housing Resetbutton with 1 illuminated button (1 closer) M12 connection. 8-pin
