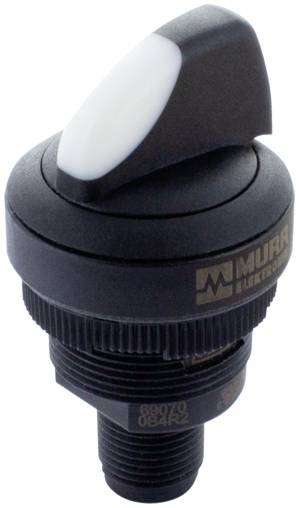

Murrelektronik 69070 S-Switch 22 2NO 2x40SR M12(4) Rotary switch 30 V DC 100 1 pc(s)
EAN:
Part number:
Item no:
Product type
Rotary switch
Switching voltage
30 V DC
Switching current (max.)
100
Casing/button colour
Black
Lighting type
None
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- M12 family design
- Housing: Plastic
- CE 1
- UKCA 1
- Protection: front IP65
- Type: Selector switch
- Width: 53.9
- Rear protection: IP65
- Mounting method: Threaded ring
- Min. Operating temperature: -40
- Height: 29.8
- Material contact: Gold
- Actuating function: Momentary
- Coding: A
- Max. Operating temperature: 85
- Min. Storage temperature: -40
- Overvoltage category II
- Can be illuminated: No.
- Storage temperature max.: 90
- CURus: 1
- Colour, black
- Colour of collar: Black
- CONNECTION TECHNOLOGY I/O M12
- Form collar: Round
- Colour: Front ring: Black
- Pollution level: 2
- Number of pins: 4
- Colour: White
- Mechanical life 200000
- Switching current max. 100
- Switching voltage AC max. 30
- Switching voltage DC max. 30
- Rated insulation voltage 250
- Material short text: S-Switch 22 2NO 2x40SR M12(4)
- Front UL Enclosure Type Rating: Type 4X
- Derating 40
- Short circuit current 1000
- Switching voltage DC min.: 1
- Switching current min.: 1
- Installation depth 36.4
- Max. Installation height NHN: 2000
- Switching voltage AC min.: 1
- Rated operating voltage AC-15: 35
- TÜV SÜD FS: 1
- Ambient temperature: -40 °C - 90 °C
- Rated operating voltage DC-13: 35
- Rated operating current 0.1
- Mechanical life B10: 250000
- Installation height 23.8
- Mounting hole: 22.3
- Switching capacity max. 0.25
- Min. Grid: 30
- Relative humidity: 93%
- Product type
Rotary switch
- Casing/button colour
Black
- Lighting type
None
- Material
Plastic
- Contact material
Gold
- Switching voltage
30 V DC
- Switching current (max.)
100
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Width
53.9 mm
- Height
29.8 mm
- Durability
200000
- Recess diameter
22.3 mm
- Recess depth
36.4 mm
- Content
1 pc(s)
- Type
S-Switch 22 2NO 2x40SR M12(4)
- Dim
(W x H) 53.9 mm x 29.8 mm
- Factory colour
Black
- Mounting height
23.8 mm
- Protection class
IP65
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762745 Murrelektronik 69070 S-Switch 22 2NO 2x40SR M12(4) Rotary switch 30 V DC 100 1 pc(s)
Datasheet 3762745 Murrelektronik 69070 S-Switch 22 2NO 2x40SR M12(4) Rotary switch 30 V DC 100 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3762745 Murrelektronik 69070 S-Switch 22 2NO 2x40SR M12(4) Rotary switch 30 V DC 100 1 pc(s)
Description
S-Switch 22 2NO 1x40SR M12(4) selector switch 1x40° momentary mounting opening 22.3 mm connection M12 (4-pin)-S-Switch 22 2NO 1x40SR M12(4)-Murrelektronik GmbH
