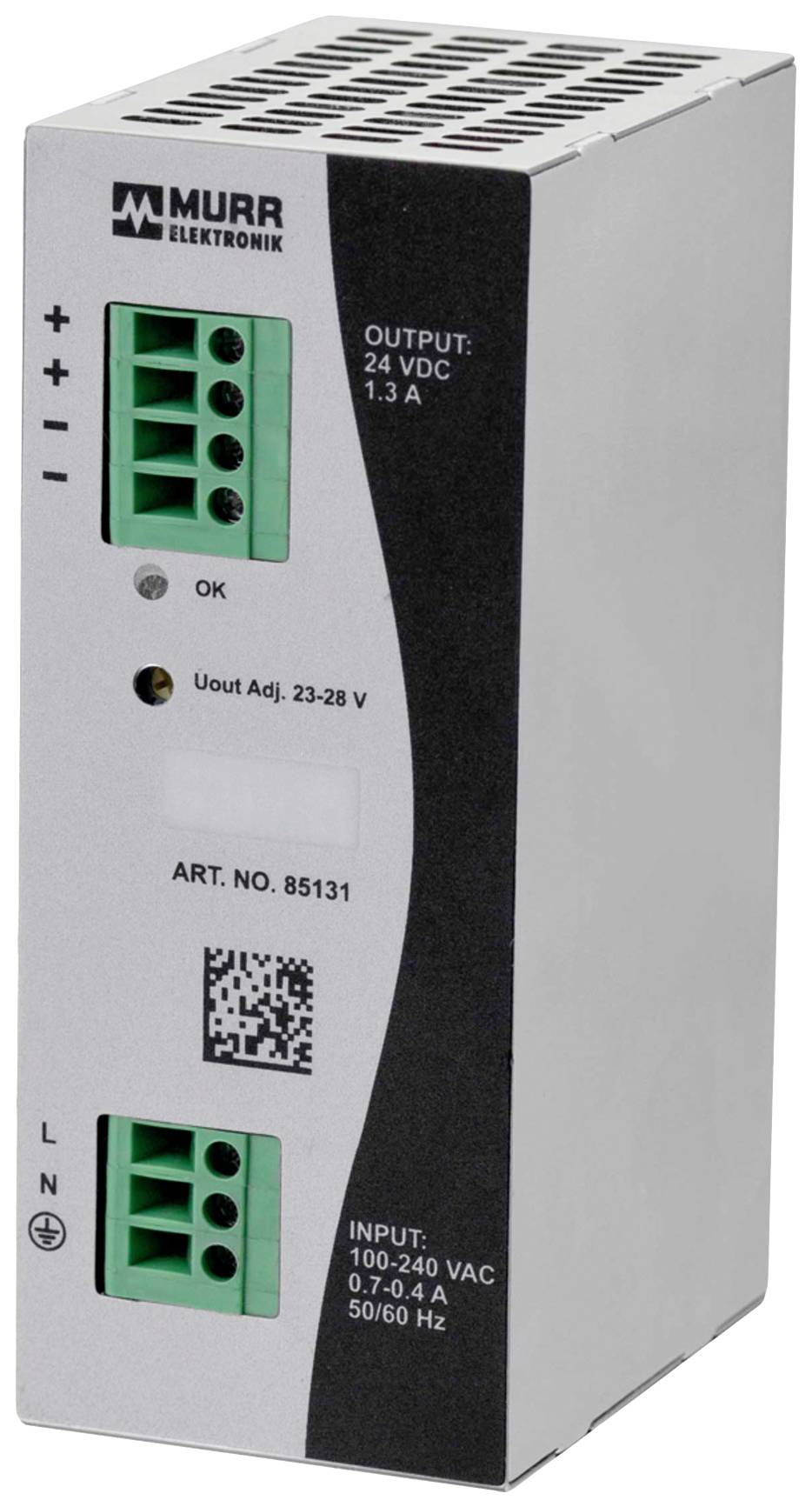

Murrelektronik 85131 Rail mounted PSU (DIN) 24 V DC 1.30 A Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 58.82 / piece)
€ 58.82
plus VAT.
14-day return policy included
Technical specifications
- Mains failure backup min. 23 ms (115 V AC); min. 130 ms (230 V AC)Ripple max. 10 mV rms/RMSSpikes max. 50 mV ss/ppDevice protection short-circuit and overload-proofParallel operation/series operation no/yes (max. 2 devices)
- Nominal input voltage
100 - 240 V/AC
- Product type
Rail mounted PSU (DIN)
- Min. input voltage
100 V
- Input voltage (max.)
240 V
- Max. output current
1.30 A
- Output current (max.) - rounded
1.3 A
- Output voltage (nominal)
24 V DC
- Connection
Screw terminal
- Dim
(L x W x H) 72 x 50 x 125 mm
- Output voltage (max.)
28 V DC
- Output voltage (min.)
23 V DC
- Manufacturer part #
85131
- Content
1 pc(s)
- Width
50 mm
- Height
125 mm
- Length
72 mm
IP20
- Type
85131
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2527585 Murrelektronik 85131 Rail mounted PSU (DIN) 24 V DC 1.30 A Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2527585 Murrelektronik 85131 Rail mounted PSU (DIN) 24 V DC 1.30 A Content 1 pc(s)
Description
Eco-Rail-2 switching power supply 1-phase IN: 90-264VAC OUT: 24V/1.3ADC
