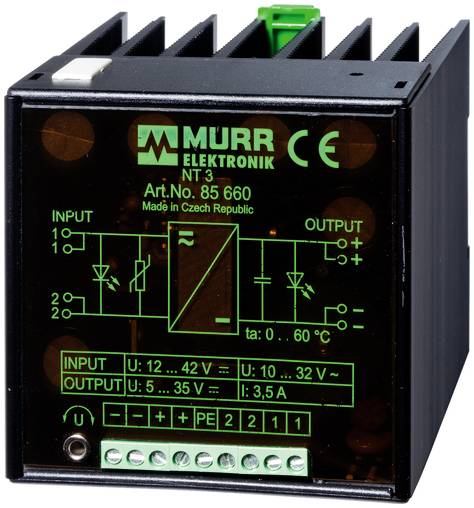

Murrelektronik 85660 SMPSU 3.5 A Content 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- Suitable for mounting type: Carry rail TH35; (EN 60715)
- CE 1
- UKCA 1
- Short-circuit-proof: Yes
- Mounting type: Snapped on
- Mains frequency: 50 ... 60 Hz
- Min. Operating temperature: -20
- Max. Operating temperature: 60
- Characteristic: Slow-blow
- Safety measure: SELV
- Input voltage DC min.: 12
- Input voltage DC max. 42
- Output voltage DC max. 35
- Output voltage DC min.: 5
- Input voltage AC min.: 10
- Output current max. 3.5
- Input voltage AC max. 32
- Input current DC max. 3
- Material short text: NT 3
- Effective residual ripple max.: 300
- Protection of primary side internal: 6.3
- Product type
SMPSU
- Min. input voltage
12
- Input voltage (max.)
42
- Max. output current
3.5 A
- Output current (max.) - rounded
3.5 A
- Output type (power supply units)
Adjustable
- Output voltage (max.)
35 V
- Output voltage (min.)
5 V
- Operating temperature (max.)
60 °C
- Operating temperature (min.)
-20 °C
- Manufacturer part #
85660
- Content
1 pc(s)
- Max. temperature
60 °C
- Min. temperature
-20 °C
- Type
NT 3
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3765409 Murrelektronik 85660 SMPSU 3.5 A Content 1 pc(s)
Datasheet 3765409 Murrelektronik 85660 SMPSU 3.5 A Content 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3765409 Murrelektronik 85660 SMPSU 3.5 A Content 1 pc(s)
Description
NT 3 AC-DC/DC converter, longitudinally IN: 10-32VAC/12-42VDC OUT: 5-35V/3.5ADC-NT 3 AC-DC/DC converter, longitudinal Murrelektronik GmbH
