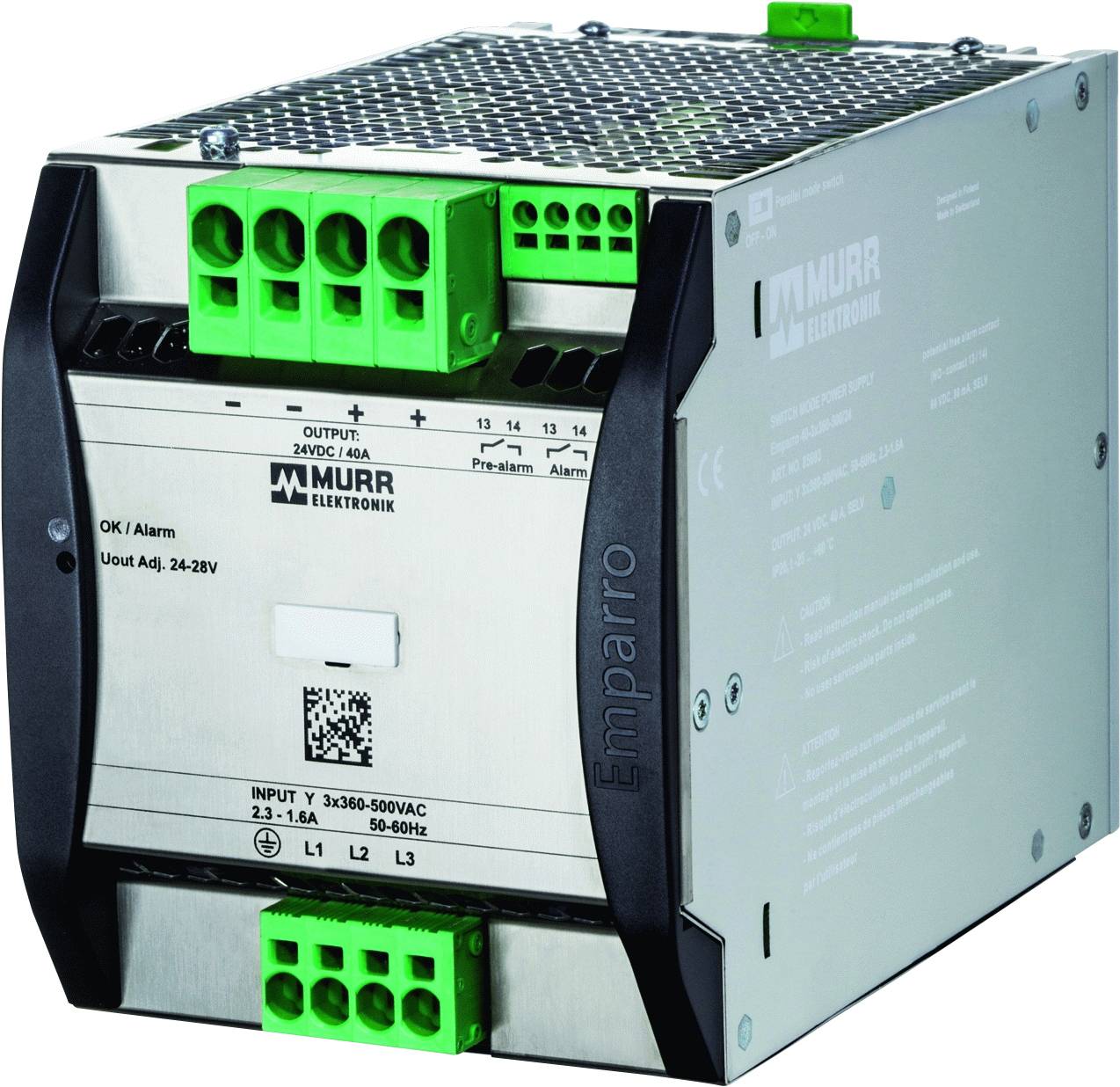

A rectangular electrical device with a green terminal block. Labels indicate input and output voltage from 230V to 500VAC and 24VDC.

Image similar

A rectangular electrical device with a green terminal block. Labels indicate input and output voltage from 230V to 500VAC and 24VDC.

Image similar

Murrelektronik

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 533.61 / piece)

€ 533.61

plus VAT.

Only 2 Piece(s) available

Report legal concerns

Technical specifications

Mounting type: Snaps onto mounting rail TH35 (EN 60715)
Frequency: 50 Hz - 60 Hz
Device protection: short-circuit and overload-proof, permanent by 20% (up to 45 °C)
LED indicator: LED (green): OK, LED (red): Overload, overheating or short circuit
Relative humidity: 5 % - 95 %, condensation not permitted
Ripple: Max. 20 mV rms/RMS

Product type: Rail mounted PSU (DIN)

Min. input voltage: 324 V AC
480 V DC

Output voltage: 24 V DC

Inputs: 2.3 A

Input voltage: 324 - 745 V

Input voltage (max.): 572 V AC
745 V DC

Max. output current: 48 A

Output current (max.) - rounded: 48 A

Output type (power supply units): Adjustable

Phases: 3

Output voltage (nominal): 28 V DC

No. of outputs: 1 x

Connection: Spring-loaded terminal

Dim: (L x W x H) 182 x 109 x 138 mm

Output voltage (max.): 28 V DC

Output voltage (min.): 24 V DC

Operating temperature (max.): +70 °C

Max. operating temperature (derating): +70 °C

Min. operating temperature (derating): -40 °C

Operating temperature (min.): -40 °C

Manufacturer part #: 85693

Content: 1 pc(s)

Width: 109 mm

Height: 138 mm

Length: 182 mm

: IP20

Max. temperature: +70 °C

Min. temperature: -40 °C

Type: 85693

Efficiency: 93.50 %

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2309972 Murrelektronik 85693 Rail mounted PSU (DIN) 28 V DC 48 A No. of outputs:1 x Content 1 pc(s)
