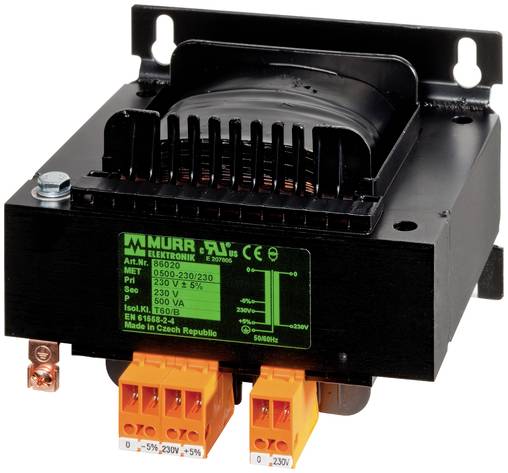

Murrelektronik 86025 Control transformer 500 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MET single-phase control and isolating transformer
- 500 VA
Technical specifications
- Suitable for mounting type: Key hole suspension
- CE 1
- UKCA 1
- Depth: 170
- Ambient conditions: Up to 60° ambient temperature
- Type of connection: Screw terminal
- Width: 150
- Output 500 VA
- Mounting type: Screw fixing
- Mains frequency: 50 ... 60 Hz
- Min. Operating temperature: -20
- Height: 112.6
- Max. Operating temperature: 60
- Min. Storage temperature: -40
- Storage temperature max.: 80
- CURus: 1
- Output voltage 240 V;110 V
- Input voltage 415 V;240 V
- Material short text: MET 0500-240-415/110-240
- Short circuit current at input voltage 1: 51.33
- Short circuit current at input voltage 2: 29.7
- Switching capacity AC max. 500
- Mounting dimension a: 91
- Mounting dimension b: 122
- Mounting dimension c: 7
- Length of hole: 11
- Diameter of bore: 7
- Output voltage AC 1: 110
- Ambient temperature: -40 °C - 80 °C
- Output voltage AC 2: 240
- Input - output insulation test voltage: 4
- Switch-on current at input voltage 1:58.3
- Product standard: EN IEC 61558-1;EN IEC 61558-2-4;IEC 62041 category 0
- Switch-on current at input voltage 2:33.6
- DNV: 1
- RATED INPUT VOLTAGE AC: 240 V … 415 V
- NOMINAL CURRENT AC:2.3 A @ 240 V,1.36 A @ 415 V
- Product type
Control transformer
- Output voltage
240 V
110 V
500 VA
- Connection
Screw terminal
- Width
150 mm
- Height
112.6 mm
- Dim
(W x H x D) 150 x 112.6 x 170 mm
- Content
1 pc(s)
- Type
MET 0500-240-415/110-240
- Depth
170 mm
- Input voltage
415 V;240 V
- Max. temperature
60 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762760 Murrelektronik 86025 Control transformer 500 VA
Datasheet 3762760 Murrelektronik 86025 Control transformer 500 VA
User & Safety Instructions
User & Safety Instructions 3762760 Murrelektronik 86025 Control transformer 500 VA
Description
MET Single Phase Control and Isolating Transformer P: 500VA IN: 240-415VAC OUT: 110-110-20VAC-MET Single Phase Control and Isolating Transformer-Murrelektronik GmbH
