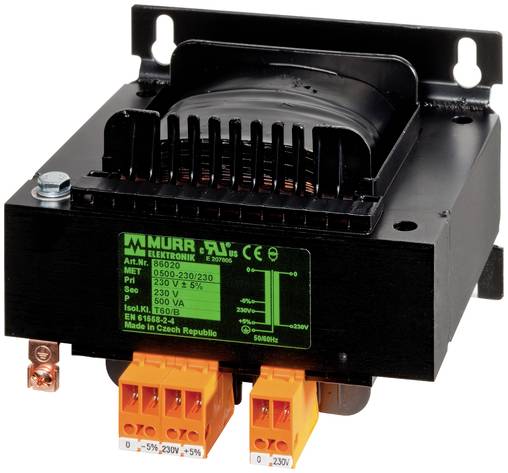

Murrelektronik 86031 Control transformer 630 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MET single-phase control and isolating transformer
- 630 VA
Technical specifications
- Suitable for mounting type: Key hole suspension
- CE 1
- UKCA 1
- Depth: 146
- Ambient conditions: Up to 60° ambient temperature
- Type of connection: Screw terminal
- Width: 150
- Output 630 VA
- Mounting type: Screw fixing
- Mains frequency: 50 ... 60 Hz
- Min. Operating temperature: -20
- Height: 130
- Max. Operating temperature: 60
- Min. Storage temperature: -40
- Storage temperature max.: 80
- CURus: 1
- Output voltage 230 V
- INPUT VOLTAGE 400 V;420 V;380 V
- Input voltage AC 400
- Input voltage AC min.: 380
- Input voltage AC max. 420
- Input current AC:1.71
- Material short text: MET 0630-400+-5%/230
- Switch-on current max.: 27.16
- Switching capacity AC max. 630
- Short circuit current 68.2
- Mounting dimension a: 107.5
- Mounting dimension b: 122
- Mounting dimension c: 7
- Length of hole: 11
- Diameter of bore: 7
- Output voltage AC 230
- Ambient temperature: -40 °C - 80 °C
- Input - output insulation test voltage: 4
- Product standard: EN IEC 61558-1;EN IEC 61558-2-4;IEC 62041 category 0
- DNV: 1
- Product type
Control transformer
- Output voltage
230 V
630 VA
- Connection
Screw terminal
- Width
150 mm
- Height
130 mm
- Dim
(W x H x D) 150 x 130 x 146 mm
- Content
1 pc(s)
- Type
MET 0630-400+-5%/230
- Depth
146 mm
- Input voltage
400 V;420 V;380 V
- Max. temperature
60 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762762 Murrelektronik 86031 Control transformer 630 VA
Datasheet 3762762 Murrelektronik 86031 Control transformer 630 VA
User & Safety Instructions
User & Safety Instructions 3762762 Murrelektronik 86031 Control transformer 630 VA
Description
MET Single-phase control and isolating transformer P: 630VA IN: 400VAC+/- 5% OUT: 230VAC-MET Single-phase control and isolating transformer-Murrelektronik GmbH
