Buy Murrelektronik 86071 Control transformer 1 x 400 V AC 1 x 230 V AC 2000 VA

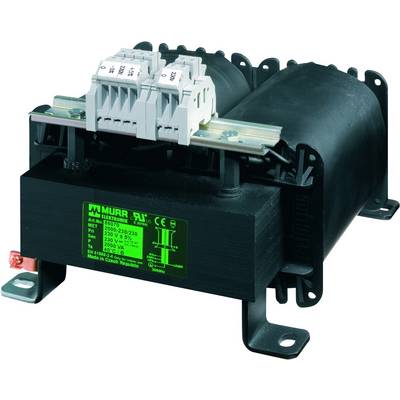

Black transformer with a plastic casing, grey terminals, and green labelling on the right side, mounted on metal brackets.

Image similar

Datasheet (PDF)

1 Piece(s)

Sales and shipping:

Number

Piece(s)

Total (€ 360.50 / piece)

€

Only 1 Piece(s) available

Report legal concerns

Highlights & Details

Met Single-phase control and isolation transformer P: 2000VA IN: 400VAC+/- 5% OUT: 230VAC

1 x 400 V AC
1 x 230 V AC
2000 VA

Technical specifications

Fastening method: Slotted hole fixing
Mounting dimensions a x b x c: 200 x 174 x 9 mm
Hole Ø 9 mm x 14 mm
Test isolation voltage: 4 kV (prim./sec.)

Product type: Control transformer

Output voltage: 230 V AC

No. of outputs: 1 x

No. of inputs: 1 x

: 2000 VA

Input voltage: 400 V AC

Standards: EN 61558-1, EN 61558-2-4, EN 62041 CATEGORY 0

Width: 195 mm

Height: 170 mm

Length: 250 mm

Dim: (L x W x H) 250 x 195 x 170 mm

Output voltage (number x voltage): 1 x 230 V AC

Input voltage (number x voltage): 1 x 400 V AC

Input current: 5.1 A

Frequency: 50 Hz

Content: 1 pc(s)

Insulation class: T 40/B

Dimensions: 250 x 195 x 170 mm

Type: 86071

Max. ambient temperature: +40 °C

Min. ambient temperature: -20 °C

: 195

: 170 mm

: 250 mm

: FALSE

: Copper

: IP00

Variants(All information is without VAT, plus shipping costs)

Power

Input voltage

No. of outputs

Output voltage

Murrelektronik 86071 Control transformer 1 x 400 V AC 1 x 230 V AC 2000 VA

Item no:2309975

This article

2000 VA

400 V AC

1 x

230 V AC

Murrelektronik 86021 Control transformer 1 x 400 V AC 1 x 230 V AC 500 VA

Item no:2309973

500 VA

400 V AC

1 x

230 V AC

Murrelektronik 86051 Control transformer 1 x 400 V AC 1 x 230 V AC 1000 VA

Item no:2309974

1000 VA

400 V AC

1 x

230 V AC

Murrelektronik 86150 Control transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 420 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC 2 x 230 V AC, 115 V AC 800 VA

Item no:2309976

800 VA

208 V AC230 V AC380 V AC400 V AC420 V AC440 V AC460 V AC480 V AC500 V AC525 V AC550 V AC

2 x

230 V AC115 V AC

Murrelektronik 86151 Control transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 420 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC 2 x 230 V AC, 115 V AC 1000 VA

Item no:2309977

1000 VA

208 V AC230 V AC380 V AC400 V AC420 V AC440 V AC460 V AC480 V AC500 V AC525 V AC550 V AC

2 x

230 V AC115 V AC

Murrelektronik 86152 Control transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 420 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC 2 x 230 V AC, 115 V AC 1600 VA

Item no:2309978

1600 VA

208 V AC230 V AC380 V AC400 V AC420 V AC440 V AC460 V AC480 V AC500 V AC525 V AC550 V AC

2 x

230 V AC115 V AC

Murrelektronik 86154 Control transformer 1 x 208 V AC, 230 V AC, 380 V AC, 400 V AC, 420 V AC, 440 V AC, 460 V AC, 480 V AC, 500 V AC, 525 V AC, 550 V AC 2 x 230 V AC, 115 V AC 2500 VA

Item no:2309979

2500 VA

208 V AC230 V AC380 V AC400 V AC420 V AC440 V AC460 V AC480 V AC500 V AC525 V AC550 V AC

2 x

230 V AC115 V AC

Murrelektronik 86307 Control transformer 1 x 230 V AC, 400 V AC 1 x 230 V AC 400 VA

Item no:2309980

400 VA

230 V AC400 V AC

1 x

230 V AC

Murrelektronik 86311 Control transformer 1 x 230 V AC, 400 V AC 1 x 230 V AC 1000 VA

Item no:2309981

1000 VA

230 V AC400 V AC

1 x

230 V AC

Murrelektronik 86347 Control transformer 1 x 230 V AC, 400 V AC 1 x 230 V AC 63 VA

Item no:2309989

63 VA

230 V AC400 V AC

1 x

230 V AC
