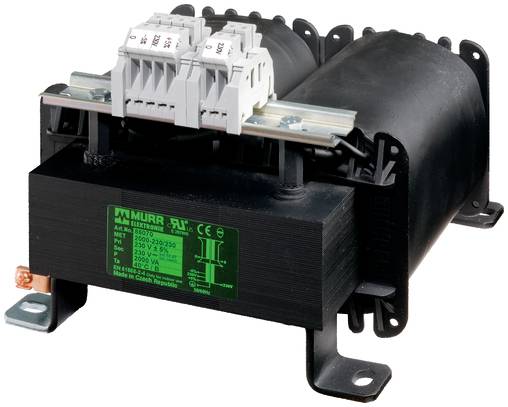

Murrelektronik 86131 Control transformer 5000 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MET single-phase control and isolating transformer
- 5000 VA
Technical specifications
- Suitable for mounting type: Slotted hole mounting
- CE 1
- UKCA 1
- Depth: 250
- Ambient conditions: Up to 40° ambient temperature
- Type of connection: Screw terminal
- Width: 198
- Output 5000 VA
- Mounting type: Screw fixing
- Mains frequency: 50 ... 60 Hz
- Min. Operating temperature: -20
- Height: 225
- Max. Operating temperature: 40
- Min. Storage temperature: -40
- Storage temperature max.: 80
- CURus: 1
- Output voltage 230 V
- INPUT VOLTAGE 400 V;420 V;380 V
- Input voltage AC 400
- Input voltage AC min.: 380
- Input voltage AC max. 420
- Input current AC:12.86
- Material short text: MET 5000-400+-5%/230
- Switch-on current max.: 399
- Switching capacity AC max. 5000
- Short circuit current 700.3
- Mounting dimension a: 200
- Mounting dimension b: 174
- Mounting dimension c: 9
- Length of hole: 14
- Diameter of bore: 9
- Output voltage AC 230
- Ambient temperature: -40 °C - 80 °C
- Input - output insulation test voltage: 4
- Product standard: EN IEC 61558-1;EN IEC 61558-2-4;IEC 62041 category 0
- DNV: 1
- Product type
Control transformer
- Output voltage
230 V
5000 VA
- Connection
Screw terminal
- Width
198 mm
- Height
225 mm
- Dim
(W x H x D) 198 x 225 x 250 mm
- Content
1 pc(s)
- Type
MET 5000-400+-5%/230
- Depth
250 mm
- Input voltage
400 V;420 V;380 V
- Max. temperature
40 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762801 Murrelektronik 86131 Control transformer 5000 VA
Datasheet 3762801 Murrelektronik 86131 Control transformer 5000 VA
User & Safety Instructions
User & Safety Instructions 3762801 Murrelektronik 86131 Control transformer 5000 VA
Description
MET Single-phase control and isolating transformer P: 5000VA IN: 400VAC+/- 5% OUT: 230VAC-MET Single-phase control and isolating transformer-Murrelektronik GmbH
