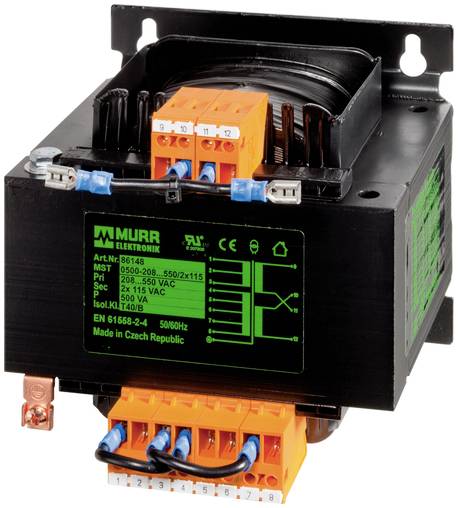

Murrelektronik 86148 Control transformer 500 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MST single-phase control and isolating transformer
- 500 VA
Technical specifications
- Suitable for mounting type: Key hole suspension
- CE 1
- UKCA 1
- Depth: 135
- Ambient conditions: Up to 40° ambient temperature
- Type of connection: Screw terminal
- Width: 135
- Output 500 VA
- Mounting type: Screw fixing
- Mains frequency: 50 ... 60 Hz
- Min. Operating temperature: -20
- Height: 138
- Max. Operating temperature: 40
- Min. Storage temperature: -40
- Storage temperature max.: 80
- CURus: 1
- Connection type 1: Input
- Output voltage 230 V;115 V
- Connection type 2: Input
- INPUT VOLTAGE 460 V;230 V;400 V;420 V;500 V;208 V;480 V;440 V;380 V;525 V;550 V
- Connection type 3: Output
- Connection type 4: Output
- Material short text: MST 0500-208...550/2x115
- Short circuit current at input voltage 1: 68
- Short circuit current at input voltage 2: 26
- Switching capacity AC max. 500
- Mounting dimension a: 117
- Mounting dimension b: 104
- Mounting dimension c: 5.8
- Length of hole: 10
- Diameter of bore: 5.8
- Output voltage AC 1: 230
- Ambient temperature: -40 °C - 80 °C
- Output voltage AC 2: 115
- Input - output insulation test voltage: 4
- Switch-on current at input voltage 1:81
- Product standard: EN IEC 61558-1;EN IEC 61558-2-4;IEC 62041 category 0
- Switch-on current at input voltage 2:31
- DNV: 1
- RATED INPUT VOLTAGE AC: 208 V … 550 V
- NOMINAL CURRENT AC:2.76 A @ 208 V,1.1 A @ 550 V
- Product type
Control transformer
- Output voltage
230 V
115 V
500 VA
- Connection
Screw terminal
- Width
135 mm
- Height
138 mm
- Dim
(W x H x D) 135 x 138 x 135 mm
- Content
1 pc(s)
- Type
MST 0500-208...550/2x115
- Depth
135 mm
- Input voltage
460 V;230 V;400 V;420 V;500 V;208 V;480 V;440 V;380 V;525 V;550 V
- Max. temperature
40 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762820 Murrelektronik 86148 Control transformer 500 VA
Datasheet 3762820 Murrelektronik 86148 Control transformer 500 VA
