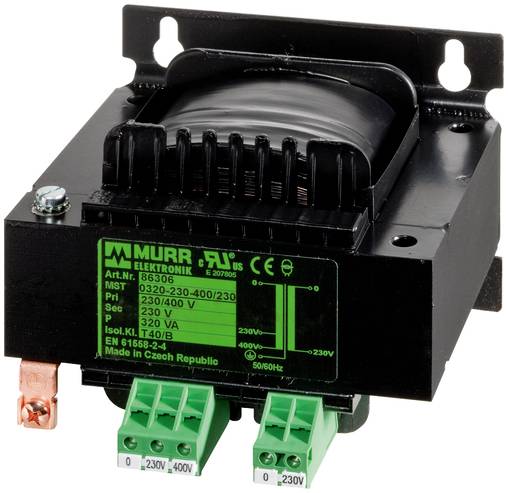

Murrelektronik 86306 Control transformer 320 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MST single-phase control and isolating transformer
- 320 VA
Technical specifications
- Suitable for mounting type: Key hole suspension
- CE 1
- UKCA 1
- Depth: 122.4
- Ambient conditions: Up to 40° ambient temperature
- Type of connection: Screw terminal
- Width: 120
- Output 320 VA
- Mounting type: Screw fixing
- Mains frequency: 50 ... 60 Hz
- Min. Operating temperature: -20
- Height: 92
- Max. Operating temperature: 40
- Min. Storage temperature: -40
- Storage temperature max.: 80
- CURus: 1
- Connection type 1: Input
- Output voltage 230 V
- Connection type 2: Output
- Input voltage 230 V;400 V
- Material short text: MST 0320-230-400/230
- Short circuit current at input voltage 1: 28
- Short circuit current at input voltage 2: 16.1
- Switching capacity AC max. 320
- Mounting dimension a: 74.4
- Mounting dimension b: 90
- Mounting dimension c: 5.8
- Length of hole: 10
- Diameter of bore: 5.8
- Output voltage AC 230
- Ambient temperature: -40 °C - 80 °C
- Input - output insulation test voltage: 4
- Switch-on current at input voltage 1:17.5
- Product standard: EN IEC 61558-1;EN IEC 61558-2-4;IEC 62041 category 0
- Switch-on current at input voltage 2:10.1
- DNV: 1
- RATED INPUT VOLTAGE AC: 230 V … 400 V
- NOMINAL CURRENT AC:1.52 A @ 230 V,0.88 A @ 400 V
- Product type
Control transformer
- Output voltage
230 V
320 VA
- Connection
Screw terminal
- Width
120 mm
- Height
92 mm
- Dim
(W x H x D) 120 x 92 x 122.4 mm
- Content
1 pc(s)
- Type
MST 0320-230-400/230
- Depth
122.4 mm
- Input voltage
230 V;400 V
- Max. temperature
40 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762834 Murrelektronik 86306 Control transformer 320 VA
Datasheet 3762834 Murrelektronik 86306 Control transformer 320 VA
User & Safety Instructions
User & Safety Instructions 3762834 Murrelektronik 86306 Control transformer 320 VA
Description
MST Single-phase control and isolating transformer P: 320VA IN: 230/400VAC OUT: 230VAC-MST Single-phase control and isolating transformer Murrelektronik GmbH
