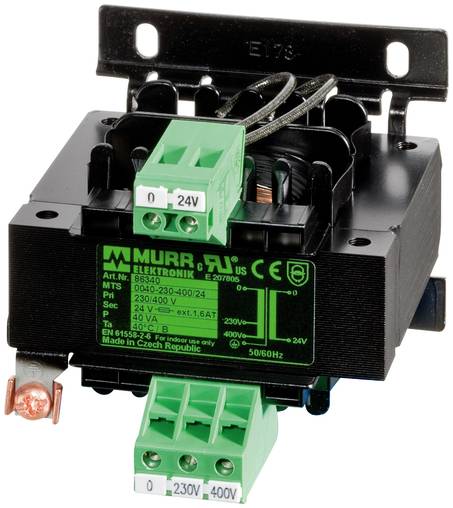

Murrelektronik 86346 Control transformer 40 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Highlights & Details
MTS single phase control and isolation transformer
- 40 VA
Technical specifications
- Suitable for mounting method: Carry rail TH35; slotted hole mounting; (EN 60715)
- CE 1
- UKCA 1
- Depth: 93
- Ambient conditions: Up to 40° ambient temperature
- Type of connection: Screw terminal
- Width: 78
- Output 40 VA
- Mounting type: DIN-rails mounting; screw fixing
- Mains frequency: 50 ... 60 Hz
- Min. Operating temperature: -20
- Height: 78
- Max. Operating temperature: 40
- Min. Storage temperature: -40
- Storage temperature max.: 80
- CURus: 1
- Connection type 1: Input
- Output voltage 230 V
- Connection type 2: Output
- Input voltage 230 V;400 V
- Material short text: MTS 0040-230-400/230
- Short circuit current at input voltage 1: 1.88
- Short circuit current at input voltage 2: 1.08
- Switching capacity AC max. 40
- Mounting dimension a: 56
- Mounting dimension b: 56
- Mounting dimension c: 4.8
- Length of hole: 8.4
- Diameter of bore: 4.8
- Output voltage AC 230
- Ambient temperature: -40 °C - 80 °C
- Input - output insulation test voltage: 4
- Switch-on current at input voltage 1:1.64
- Product standard: EN IEC 61558-1;EN IEC 61558-2-4;IEC 62041 category 0
- Switch-on current at input voltage 2:0.94
- RATED INPUT VOLTAGE AC: 230 V … 400 V
- NOMINAL CURRENT AC:0.24 A @ 230 V,0,138 A @ 400 V
- Product type
Control transformer
- Output voltage
230 V
40 VA
- Connection
Screw terminal
- Width
78 mm
- Height
78 mm
- Dim
(W x H x D) 78 x 78 x 93 mm
- Content
1 pc(s)
- Type
MTS 0040-230-400/230
- Depth
93 mm
- Input voltage
230 V;400 V
- Max. temperature
40 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762758 Murrelektronik 86346 Control transformer 40 VA
Datasheet 3762758 Murrelektronik 86346 Control transformer 40 VA
User & Safety Instructions
User & Safety Instructions 3762758 Murrelektronik 86346 Control transformer 40 VA
Description
MTS Single-phase control and isolating transformer P:40 IN: 230/400VAC OUT: 230VAC For screw and mounting rail mounting MTS Single-phase control and isolating transformer-Murrelektronik GmbH
