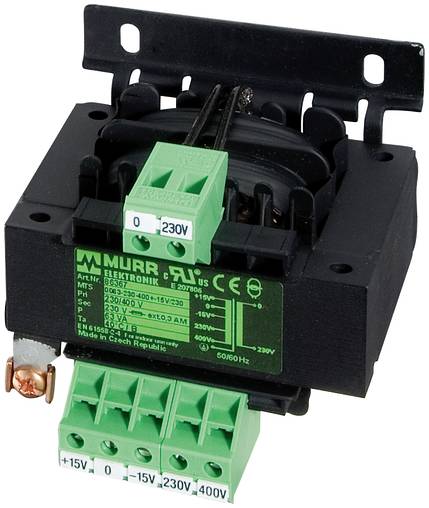

Murrelektronik 86361 Safety transformer 63 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MTS single phase safety transformer
- 63 VA
Technical specifications
- Suitable for mounting method: Carry rail TH35; slotted hole mounting; (EN 60715)
- CE 1
- UKCA 1
- Depth: 93
- Ambient conditions: Up to 40° ambient temperature
- Type of connection: Screw terminal
- Width: 78
- Output 63 VA
- Mounting type: DIN-rails mounting; screw fixing
- Mains frequency: 50 ... 60 Hz
- Min. Operating temperature: -20
- Height: 78
- Max. Operating temperature: 40
- Min. Storage temperature: -40
- Storage temperature max.: 80
- CURus: 1
- Connection type 1: Input
- Output voltage 24 V
- Connection type 2: Output
- Safety measure: SELV
- INPUT VOLTAGE 415 V;230 V;400 V;385 V;215 V;245 V
- Material short text MTS 0063-230-400+-15V/24
- Short circuit current at input voltage 1: 2.95
- Short circuit current at input voltage 2: 1.7
- Switching capacity AC max. 63
- Mounting dimension a: 56
- Mounting dimension b: 56
- Mounting dimension c: 4.8
- Length of hole: 8.4
- Diameter of bore: 4.8
- Output voltage AC 24
- Ambient temperature: -40 °C - 80 °C
- Input - output insulation test voltage: 4
- Input voltage 1 AC min.: 195.5
- Switch-on current at input voltage 1:2
- Input voltage 1 AC max. 264.5
- Product standard: EN IEC 61558-2-4;EN IEC 61558-2-6;IEC 62041 category 0
- Switch-on current at input voltage 2:1.15
- Input voltage 2 AC min.: 340
- Input voltage 2 AC max. 460
- RATED INPUT VOLTAGE AC: 230 V … 400 V
- NOMINAL CURRENT AC:0.33 A @ 230 V,0.2 A @ 400 V
- Product type
Safety transformer
- Output voltage
24 V
63 VA
- Connection
Screw terminal
- Width
78 mm
- Height
78 mm
- Dim
(W x H x D) 78 x 78 x 93 mm
- Content
1 pc(s)
- Type
MTS 0063-230-400+-15V/24
- Depth
93 mm
- Input voltage
415 V;230 V;400 V;385 V;215 V;245 V
- Max. temperature
40 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762764 Murrelektronik 86361 Safety transformer 63 VA
Datasheet 3762764 Murrelektronik 86361 Safety transformer 63 VA
User & Safety Instructions
User & Safety Instructions 3762764 Murrelektronik 86361 Safety transformer 63 VA
Description
MTS Single phase safety transformer P: 63VA IN: 230/400VAC +/- 15VAC OUT: 24VAC For screw and mounting rail mounting-MTS Single phase safety transformer-Murrelektronik GmbH
