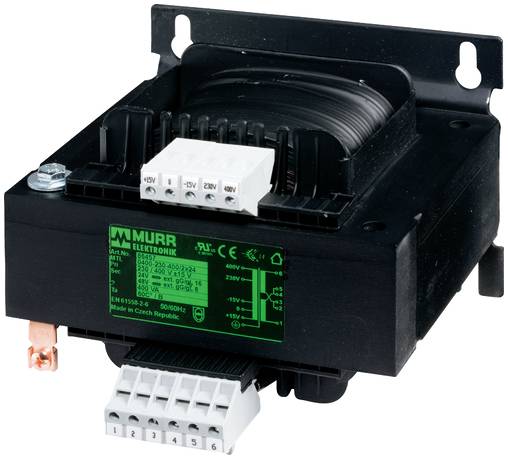

Murrelektronik 86466 Safety transformer 2500 VA
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
MST single-phase safety transformer
- 2500 VA
Technical specifications
- Suitable for mounting type: Slotted hole mounting
- CE 1
- UKCA 1
- Depth: 242
- Ambient conditions: Up to 40° ambient temperature
- Type of connection: Screw terminal
- Width: 192
- Output 2500 VA
- Mounting type: Screw fixing
- Mains frequency: 50 ... 60 Hz
- Min. Operating temperature: -20
- Height: 182
- Max. Operating temperature: 40
- CURus: 1
- Connection type 1: Input
- Output voltage 24 V;48 V
- Connection type 2: Output
- INPUT VOLTAGE 415 V;230 V;400 V;385 V;215 V;245 V
- Material short text MST 2500-230-400+-15V/2x24
- Short circuit current at input voltage 1: 504
- Short circuit current at input voltage 2: 300
- Switching capacity AC max. 2500
- Mounting dimension a: 155
- Mounting dimension b: 150
- Mounting dimension c: 10
- Length of hole: 18
- Diameter of bore: 10
- Output voltage AC 1: 48
- Output voltage AC 2: 24
- Input - output insulation test voltage: 5.8
- Input voltage 1 AC min.: 195.5
- Switch-on current at input voltage 1:205
- Input voltage 1 AC max. 264.5
- Product standard: EN IEC 61558-1;EN IEC 61558-2-4;IEC 62041 category 0
- Switch-on current at input voltage 2:98
- Input voltage 2 AC min.: 340
- Input voltage 2 AC max. 460
- DNV: 1
- RATED INPUT VOLTAGE AC: 230 V … 400 V
- NOMINAL CURRENT AC:11.1 A @ 230 V,6.5 A @ 400 V
- Product type
Safety transformer
- Output voltage
24 V
48 V
2500 VA
- Connection
Screw terminal
- Width
192 mm
- Height
182 mm
- Dim
(W x H x D) 192 x 182 x 242 mm
- Content
1 pc(s)
- Type
MST 2500-230-400+-15V/2x24
- Depth
242 mm
- Input voltage
415 V;230 V;400 V;385 V;215 V;245 V
- Max. temperature
40 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762787 Murrelektronik 86466 Safety transformer 2500 VA
Datasheet 3762787 Murrelektronik 86466 Safety transformer 2500 VA
User & Safety Instructions
User & Safety Instructions 3762787 Murrelektronik 86466 Safety transformer 2500 VA
Description
MST Single-phase safety transformer P: 2500VA IN: 230/400VAC+/-15VAC OUT: 2x24VAC-MST Single-phase safety transformer-Murrelektronik GmbH
