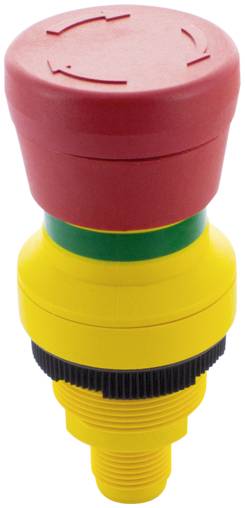

Murrelektronik E-Stop 22 2NC M12(4) Kill button round 30 V DC 2 breakers 1 pc(s) Piece
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Technical specifications
- M12 family design
- Housing: Plastic
- CE 1
- UKCA 1
- Depth: 69.7
- Protection: front IP65
- Type: Emergency stop button
- Width: 29.8
- Protection class rear IP67;IP65
- Mounting method: Threaded ring
- Min. Operating temperature: -40
- Height: 30
- Material contact: Gold
- Actuator function: Latching
- Coding: A
- Max. Operating temperature: 85
- Min. Storage temperature: -40
- Overvoltage category II
- Can be illuminated: No.
- Storage temperature max.: 90
- CURus: 1
- Colour: Red
- Colour of collar: Yellow
- CONNECTION TECHNOLOGY I/O M12
- Form collar: Round
- Pollution level: 2
- Number of pins: 4
- Mechanical life 0
- Switching current max. 100
- Switching voltage AC max. 30
- Switching voltage DC max. 30
- Rated insulation voltage 250
- Material short text: E-Stop 22 2NC M12 (4)
- Mechanical life B10d: 0
- Front UL Enclosure Type Rating: Type 4X
- Derating 40
- Short circuit current 1000
- Switching voltage DC min.: 1
- Switching current min.: 1
- Installation depth 36.4
- Max. Installation height NHN: 2000
- Switching voltage AC min.: 1
- Rated operating voltage AC-15: 35
- TÜV SÜD FS: 1
- Ambient temperature: -40 °C - 90 °C
- Rated operating voltage DC-13: 35
- Mechanical life B10: 0
- Installation height 39.6
- Mounting hole: 22.3
- Switching capacity max. 0.25
- Min. Grid: 30
- Relative humidity: 93%
- Packaging type
Piece
- Product type
Kill button
- Switch/button features
round
- Print motif
EMERGENCY STOP
- Lighting type
None
- Contact material
Gold
- Contact type
2 breakers
- Factory colour
Red
- Connection
M12 plug
- Recess diameter
22.3 mm
- Functions
latch
- Durability
0
- Width
29.8 mm
- Height
30 mm
- (Ø)
22.3 mm
- Switching voltage
30 V DC
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Type
E-Stop 22 2NC M12(4)
- Content
1 pc(s)
- Dim
(Ø x H) 22.3 mm x 30 mm
- Casing/button colour
Yellow
- Depth
69.7 mm
- Material
Plastic
- Recess depth
36.4 mm
- Mounting height
39.6 mm
- Number of pins
4
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762733 Murrelektronik E-Stop 22 2NC M12(4) Kill button round 30 V DC 2 breakers 1 pc(s) Piece
Datasheet 3762733 Murrelektronik E-Stop 22 2NC M12(4) Kill button round 30 V DC 2 breakers 1 pc(s) Piece
User & Safety Instructions
User & Safety Instructions 3762733 Murrelektronik E-Stop 22 2NC M12(4) Kill button round 30 V DC 2 breakers 1 pc(s) Piece
Description
E-Stop 22 2NC M12(4) emergency stop button mounting opening 22.3 mm connection M12 (4-pin)-E-Stop 22 2NC M12(4)-Murrelektronik GmbH
