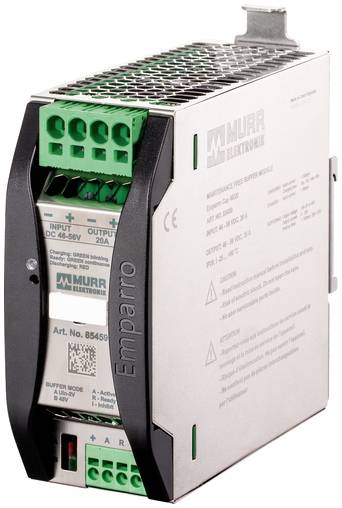

Murrelektronik Emparro Cap 20/48-100ms 85459 Energy storage
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: Emparro®
- Suitable for mounting type: Carry rail TH35; (EN 60715)
- CE 1
- Depth: 138
- Type: Capacitor buffer module
- Width: 50
- Mounting type: Snapped on
- Min. Operating temperature: -25
- Height: 123
- Max. Operating temperature: 70
- Min. Storage temperature: -40
- Emission of interference IEC/EN 55022
- Storage temperature max.: 85
- Connection type 1: Input / output
- Output voltage: 48 V … 48 V.
- Output voltage DC 48
- Immunity for industrial applications: Compliant
- Emission in residential areas: Correct
- Safety measure SELV/PELV
- Parallel switching capability: Yes
- Input voltage DC min.: 46
- Input voltage DC max. 56
- CULus 1
- Output voltage DC max. 56
- Output voltage DC min.: 46
- Output current max. 20
- Material short text: Emarro Cap 20/48-100ms
- Charging time min.: 20
- Derating 70
- Charging time max.: 45
- Buffer time max.: 2 s @ 1 A
- Charging current max. 0.5
- Output current buffer mode: 26
- Ambient temperature: -40 °C - 85 °C
- Protection against voltage peaks DC max. 72
- Residual ripple 200
- Product type
Energy storage
- Input voltage (max.)
56
- Min. input voltage
46
- Output voltage (max.)
56 V
- Output voltage (min.)
46 V
- Dim
(W x H x D) 50 x 123 x 138 mm
- Width
50 mm
- Height
123 mm
- Depth
138 mm
- Type
Emparro Cap 20/48-100ms
- Features
Capacitive energy storage
- Bridging time, max load
2 s
- Max. temperature
70 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762824 Murrelektronik Emparro Cap 20/48-100ms 85459 Energy storage
Datasheet 3762824 Murrelektronik Emparro Cap 20/48-100ms 85459 Energy storage
User & Safety Instructions
User & Safety Instructions 3762824 Murrelektronik Emparro Cap 20/48-100ms 85459 Energy storage
Description
Emparro Cap Buffer module IN:47-56 VDC OUT: 46-56VDC/20A for 100ms-Emparro Cap Buffer module-Murrelektronik GmbH
