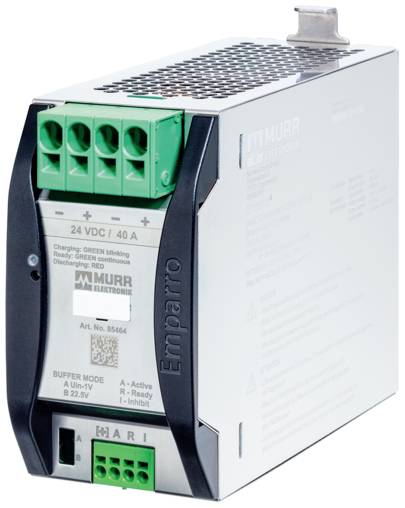

Murrelektronik Emparro Cap 40/24 300ms 85464 Energy storage
EAN:
Part number:
Item no:
Datasheet (PDF)
Technical specifications
- Product family: Emparro®
- Suitable for mounting type: Carry rail TH35; (EN 60715)
- CE 1
- UKCA 1
- Depth: 167
- Type: Capacitor buffer module
- Width: 66.5
- Mounting type: Snapped on
- Min. Operating temperature: -25
- Height: 123
- Max. Operating temperature: 70
- Min. Storage temperature: -40
- Emission of interference IEC/EN 55022
- Storage temperature max.: 85
- Connection type 1: Input / output
- Output voltage: 24 V … 24 V.
- Output voltage DC 22.5
- Immunity for industrial applications: Compliant
- Emission in residential areas: Correct
- Safety measure SELV/PELV
- Parallel switching capability: Yes
- Input voltage DC min.: 22
- Input voltage DC max. 28
- CULus 1
- Output voltage DC max. 27
- Output voltage DC min.: 21
- Output current max. 40
- Material short text: Emparro Cap 40/24 300ms
- Charging time min.: 22
- Charging time max.: 65
- Charging current max. 1
- Output current buffer mode: 48
- Ambient temperature: -40 °C - 85 °C
- Protection against voltage peaks DC max. 36
- Residual ripple 500
- CUL: 0
- Product type
Energy storage
- Input voltage (max.)
28
- Min. input voltage
22
- Output voltage (max.)
27 V
- Output voltage (min.)
21 V
- Dim
(W x H x D) 66.5 x 123 x 167 mm
- Width
66.5 mm
- Height
123 mm
- Depth
167 mm
- Type
Emparro Cap 40/24 300ms
- Max. temperature
70 °C
- Min. temperature
-25 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3762826 Murrelektronik Emparro Cap 40/24 300ms 85464 Energy storage
Datasheet 3762826 Murrelektronik Emparro Cap 40/24 300ms 85464 Energy storage
User & Safety Instructions
User & Safety Instructions 3762826 Murrelektronik Emparro Cap 40/24 300ms 85464 Energy storage
Description
Emparro Cap 40/24 300ms-Emparro Cap 40/24 300ms-Murrelektronik GmbH
