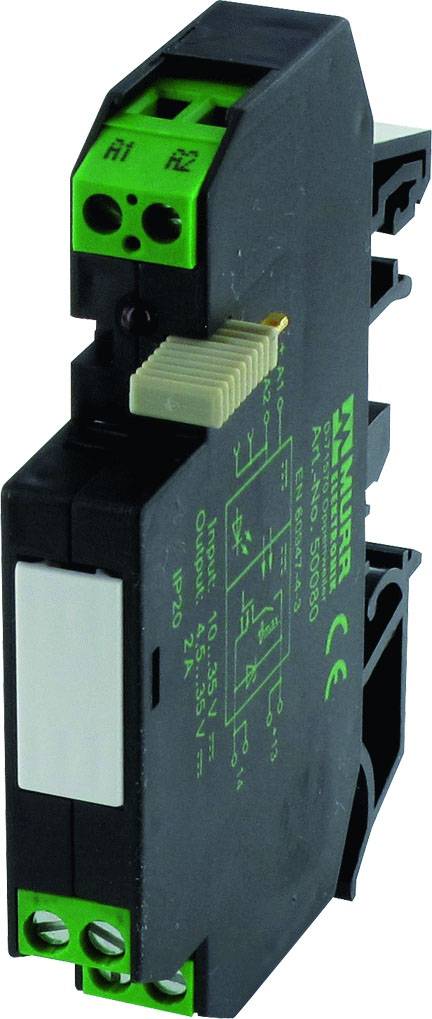

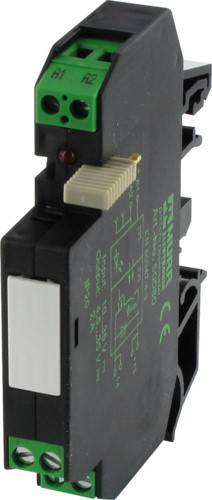

Murrelektronik Optocoupler relay 50080 2 A Switching voltage (max.): 35 V DC 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Optocoupler relay
Control voltage (min.)
10 V DC
Control voltage (max.)
53 V DC
Switching voltage (max.)
35 V DC
Datasheet (PDF)
Total (€ 50.41 / piece)
€ 50.41
plus VAT.
14-day return policy included
Technical specifications
- Mounting type: Snap-on rail TH35 or G32
- Input current: 6 mA
- Housing: Plastic black, flame retardant
- LED display: LED (red)
- Test insulation voltage: 2.5 kV
- residual voltage (output switched): Max. 0.5 V DC
- residual current (output not switched): Max. 0.3 mA
- switching frequency: Max. 10/1 Hz (ohm./ind.)
- Switching current per output: 10 mA...2 A (short-circuit proof)
- Switching time ON/OFF: 5/15 ms
- Voltage range OFF: 0...3 V DC
- Packaging type
Piece
- Product type
Optocoupler relay
- Type
50080
- Connection
Clamp
- Control voltage (min.)
10 V DC
- Control voltage (max.)
53 V DC
- Control voltage range
10 - 53 V DC
- Control current (max.)
6 mA
- Switching voltage (min.)
4 V DC
- Switching voltage (max.)
35 V DC
- Current load (max.)
2 A
- Output voltage (max.)
35 V DC
- Max. output current
2 A
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Width
82 mm
- Height
12 mm
- Depth
64 mm
- RoHS-compliant
Yes
- Permanent current (max.)
2 A
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2309847 Murrelektronik Optocoupler relay 50080 2 A Switching voltage (max.): 35 V DC 1 pc(s)
