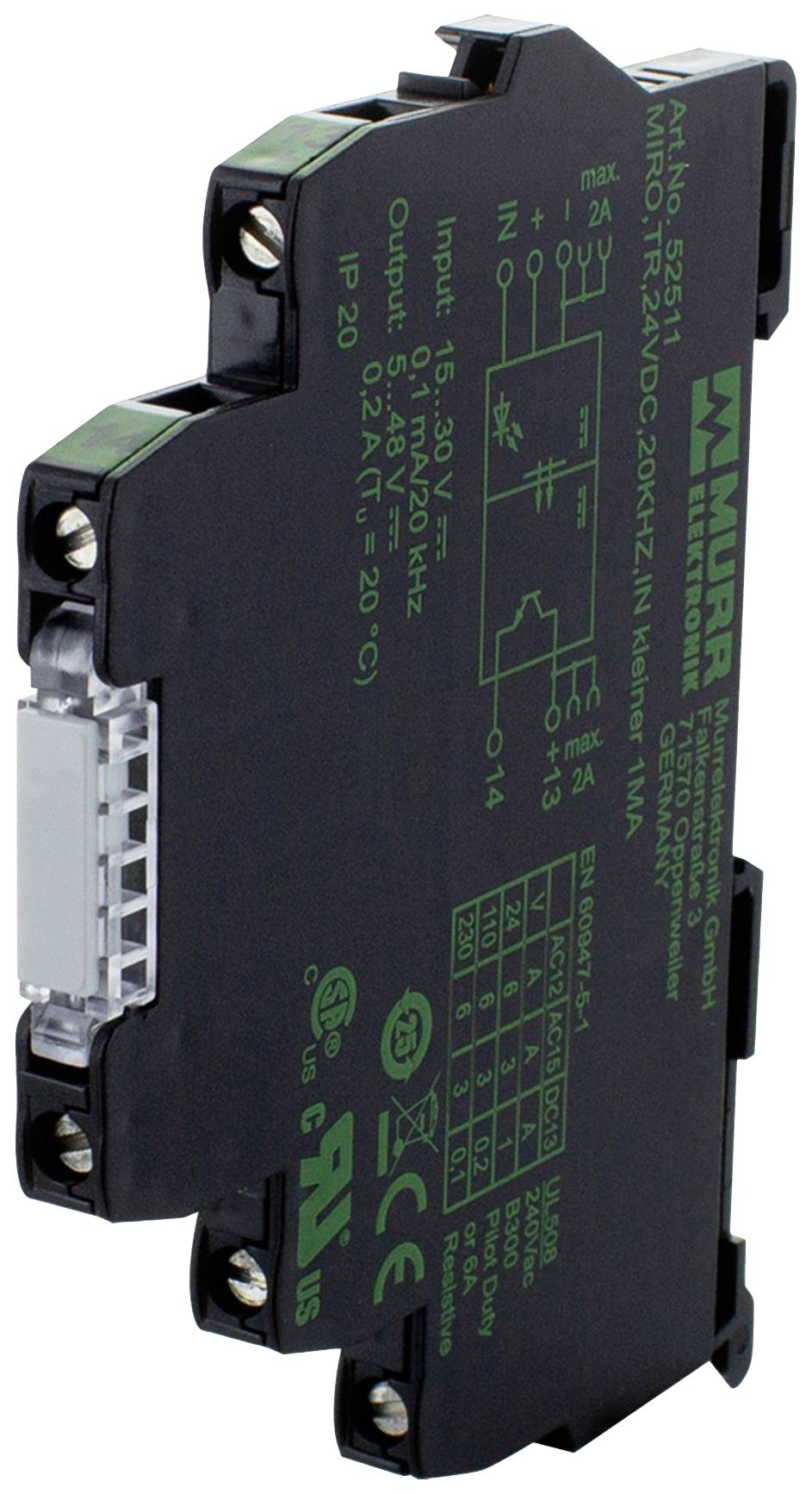

Murrelektronik Optocoupler relay 52511 0.2 A Switching voltage (max.): 48 V DC 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Optocoupler relay
Control voltage (min.)
15 V DC
Control voltage (max.)
30 V DC
Switching voltage (max.)
48 V DC
Datasheet (PDF)
Total (€ 26.88 / piece)
€ 26.88
plus VAT.
14-day return policy included
Technical specifications
- Mounting type can be snapped onto mounting rail (EN 60715)Residual current (output not switched) max. 0.1 mASwitching time ON/OFF 10/18 µsResidual voltage (output switched) max. 1.2 V DCSwitching voltage 5...48 V DCSwitching frequency max. 20 kHzSwitching current for each output 0.1 mA...0.2 AControl current 0.1 mA (5 V DC)VOLTAGE RANGE FROM 0...2 V DCVOLTAGE RANGE ON 15...30 V DCLED indicator LED (yellow)
- Packaging type
Piece
- Product type
Optocoupler relay
- Type
52511
- Connection
Screw terminal
- Control voltage (min.)
15 V DC
- Control voltage (max.)
30 V DC
- Control voltage range
15 - 30 V DC
- Control current (max.)
0.10 mA
- Switching voltage (min.)
5 V DC
- Switching voltage (max.)
48 V DC
- Current load (max.)
0.2 A
- Output voltage (min.)
5 V DC
- Output voltage (max.)
48 V DC
- Max. output current
0.2 A
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Width
6.2 mm
- Height
91 mm
- Depth
70 mm
- Length
12 mm
- Content
1 pc(s)
- Nominal control voltage
24 V DC
TRUE
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2527618 Murrelektronik Optocoupler relay 52511 0.2 A Switching voltage (max.): 48 V DC 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2527618 Murrelektronik Optocoupler relay 52511 0.2 A Switching voltage (max.): 48 V DC 1 pc(s)
Description
MIRO TR 24VDC 20KHZ 1MA OPTOCOUPLER MODULE IN: 30 VDC - OUT: 48 VDC / 0.2 A 12 MM. Screw terminal Attention!Check technical change availability!
