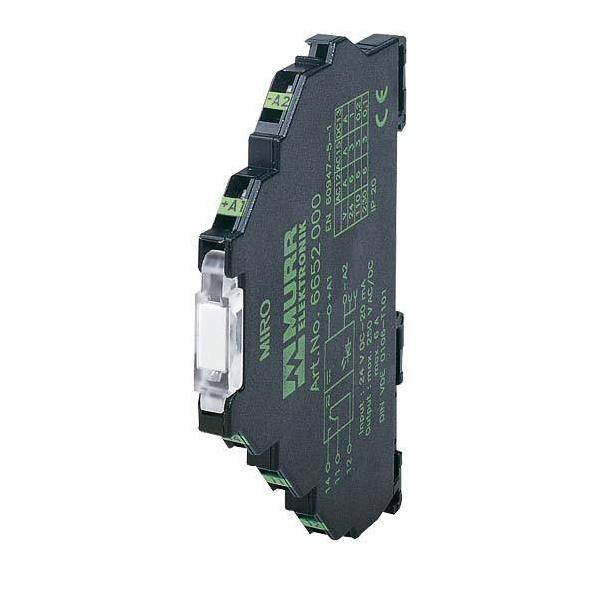

Murrelektronik Optocoupler relay 6652507 0.5 A Switching voltage (max.): 48 V DC 1 pc(s)
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Optocoupler relay
Control voltage (min.)
90 V AC
Control voltage (max.)
250 V AC
Switching voltage (max.)
48 V DC
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 29.40
3
4% = € 1.27
€ 28.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 29.40 / piece)
€ 29.40
plus VAT.
Technical specifications
- Mounting type: Snap-on rail
- Housing: Plastic black, flame retardant
- LED display: LED (yellow)
- Test isolation voltage: 3.75 kV
- residual voltage (output switched): Max. 1.2 V DC
- residual current (output not switched): Max. 0.3 mA
- switching frequency: Max. 500/30 Hz (ohm./ind.)
- Switching current per output: 0.1 mA...0.5 A
- Switching time ON/OFF: 55/15 ms
- Voltage range OFF: 0...40 V AC
- Packaging type
Piece
- Product type
Optocoupler relay
- Type
6652507
- Connection
Spring-loaded terminal
- Control voltage (min.)
90 V AC
- Control voltage (max.)
250 V AC
- Control voltage range
90 - 250 V AC
- Control current (max.)
7 mA
- Switching voltage (min.)
5 V DC
- Switching voltage (max.)
48 V DC
- Current load (max.)
0.5 A
- Output voltage (min.)
5 V
- Output voltage (max.)
48 V DC
- Max. output current
0.5 A
- Min. temperature
-20 °C
- Max. temperature
+60 °C
- Width
6.2 mm
- Height
78 mm
- Depth
70 mm
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2310212 Murrelektronik Optocoupler relay 6652507 0.5 A Switching voltage (max.): 48 V DC 1 pc(s)
