my-PV 16-0150 16-0150 Water boiler
EAN:
Part number:
Item no:
Highlights & Details

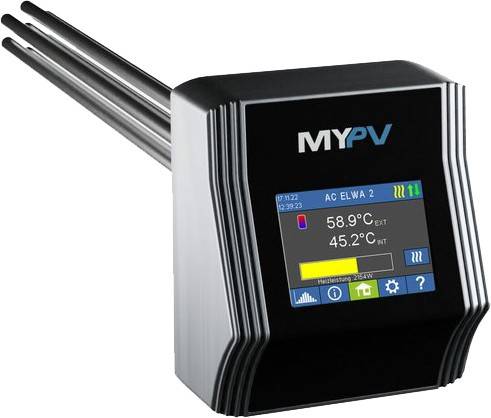

My-PV Heating water treatment AC ELWA 2 16-0150
- More Power: 3.5 kW instead of 3.0 kW
- Easy installation: The heating rod and the control unit can be placed one after the other.
- Simple operation, thanks to display just like the AC•THOR
- Multiple communication options: Besides Ethernet RJ45 also WLAN, RS485, PWM-IN, potential free switching output
Technical specifications
- Heating power 0 – 3,500 W + 16 A switching output
- Mains connection: 3-pin terminal, 2.5 mm2 230 V, 45 ? 65 Hz
- Protection class: IP21
- Dimensions (W x H x D) 580 x 133 x 117 mm (with heating rod)
- Heating rod length 460 mm (from the sealing surface)
- Heater Cartridge Connector: G 1 1/2 inch
- Display: Colour graphic, touch screen 2.83"
- Interfaces: Ethernet RJ45, WLAN, RS485, PWM-IN 3 ? 24V 0 ? 1 kHz, potential-free switching output
- External temperature sensor 5 m
- Product type
Water boiler
- Dim
(W x H x D) 200.00 x 85.00 x 550.00 mm
- Weight
2 kg
- Content
1 pc(s)
- Width
200.00 mm
- Height
85.00 mm
- Depth
550.00 mm
- System voltage
230 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3135968 my-PV 16-0150 16-0150 Water boiler
User & Safety Instructions
User & Safety Instructions 3135968 my-PV 16-0150 16-0150 Water boiler
Description
Our AC ELWA 2 is a 0 – 3.5 kW continuous controlled hot water supply unit for mains-coupled photovoltaic systems and is the successor to our proven AC ELWA-E. The AC ELWA 2 uses excess photovoltaic energy for your hot water supply and thereby optimizes the internal consumption of the existing PV systems. At the same time, the self-sufficiency is increased – this protects against incalculable and/or increasing operating costs. The PV infeed power is regulated to zero by the infinitely variable control.
The AC ELWA 2 has our proven optional hot water safety system: Even if the sun does not shine enough, the warm water can be brought to the desired temperature by energy from the public electricity grid. The device can be installed in warm water and buffer storage.
This text is machine translated.
The AC ELWA 2 has our proven optional hot water safety system: Even if the sun does not shine enough, the warm water can be brought to the desired temperature by energy from the public electricity grid. The device can be installed in warm water and buffer storage.
This text is machine translated.
Features
- External temperature sensor is included
- An external 3 kW heater can be connected
- Even more compact design than the predecessor
- Fixed wiring, no cable with safety plug
- Continuously variable control from 0 to 3.5 kW, depending on the PV surplus
- Own consumption increases
- Simple communication via network cable or WLAN
- Heating power is continuously variable
- Can be installed in hot water and buffer storage
- System openings for various inverters, battery systems and Smart homes.
