my-PV 20-0107 20-0107 System monitor

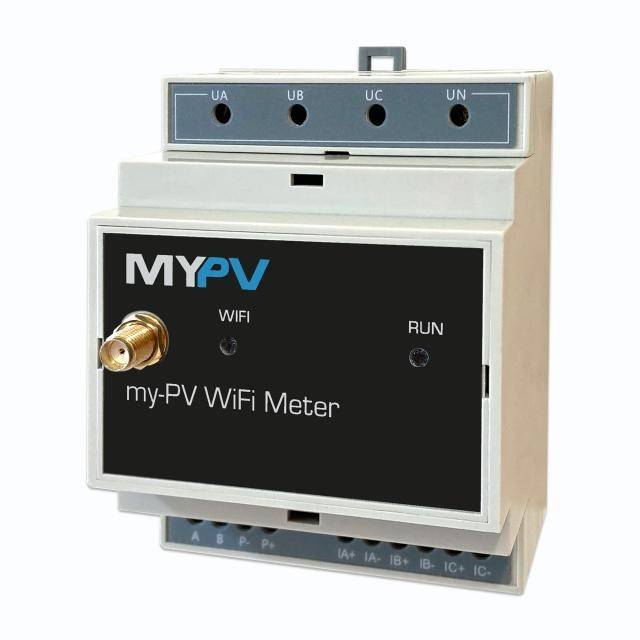

The my-PV WiFi Meter maximizes your PV plant's own power consumption in the simplest way. The my-PV WiFi Meter analyzes the power flows of the photovoltaic system. My-PV devices receive wireless information from the WiFi Meter. Thus, only the energy that is currently available is used for heat generation. There is therefore no power supply to the mains: PV consumption is maximized and the public low voltage power supply is relieved. The my-PV WiFi Meter is mounted in the distributor cabinet directly after the electricity supplier's meter and measures the load flow using three external folding current transformers. Parameterization is easily performed via a web interface. Measurement range 0 75 A (higher currents possible with other folding converters) 230 V AC (± 10%), Wi-Fi interface, dimensions (B × H × T) 90.2 × 71 × 57.5 mm, protection class IP 51, connection technology screw terminals, construction 35 mm standard rail, power supply via ua/ub/uc
