Buy My Wall H26-1AL TV wall mount 81,3 cm (32") - 139,7 cm (55") Tiltable, Height-adjustable Variable distance from wall

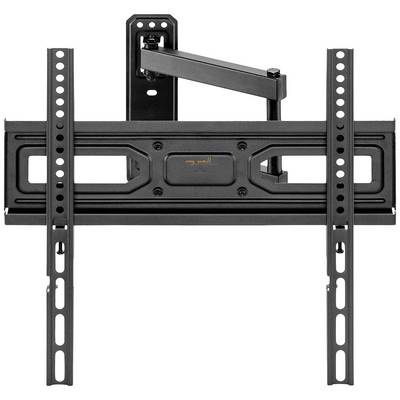

A black TV wall mount with an adjustable arm, suitable for flat-screen televisions. It is mounted on a wall.

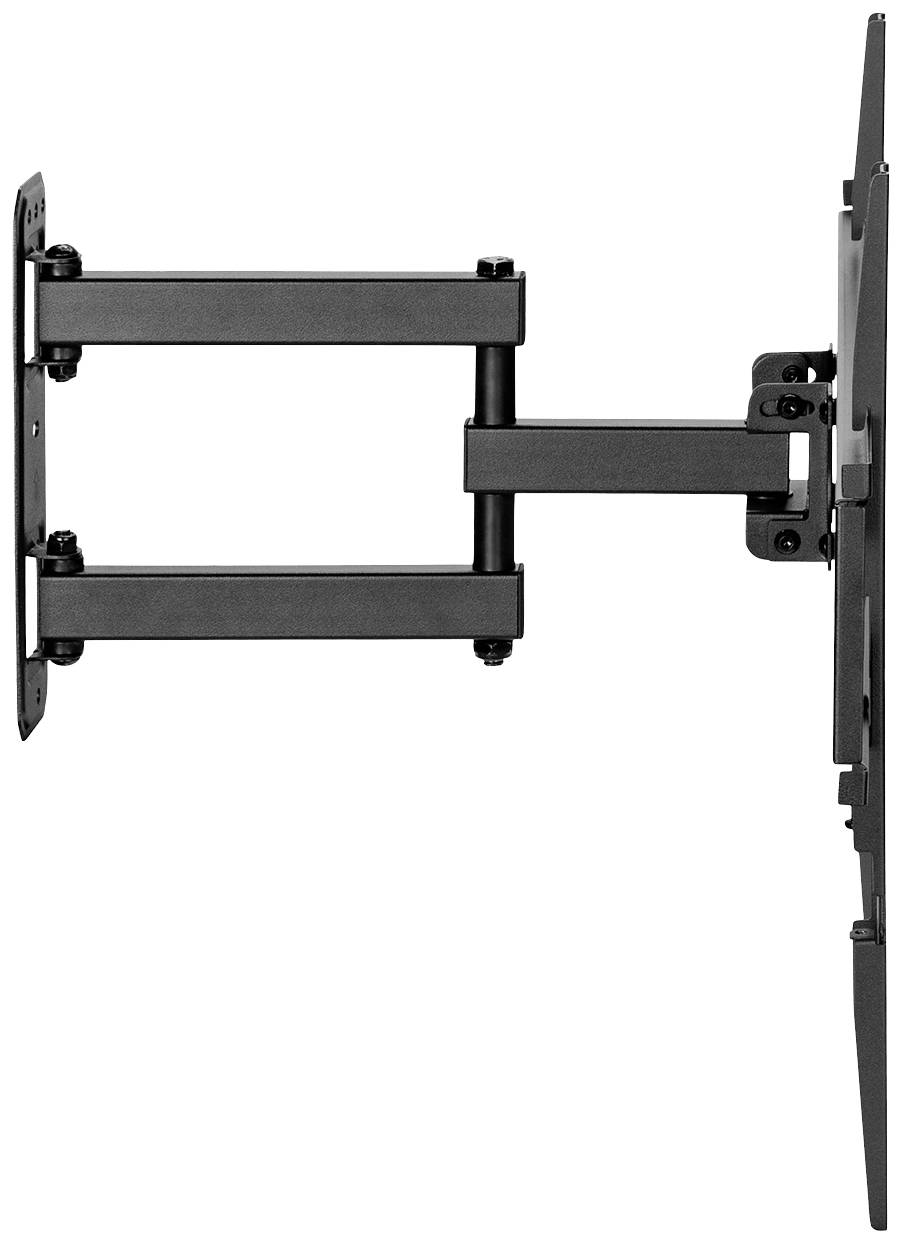

Black swivel TV wall mount, extended to the side. Suitable for flexibly mounting flat-screen televisions on the wall.

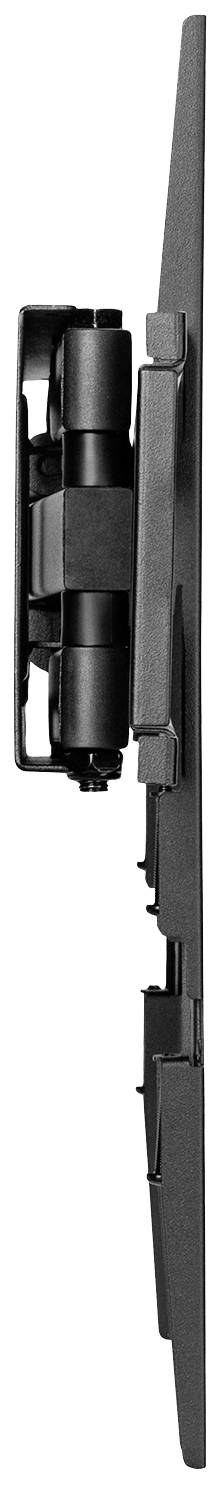

Side view of a flat, black screen mounted on a pivoting wall bracket.

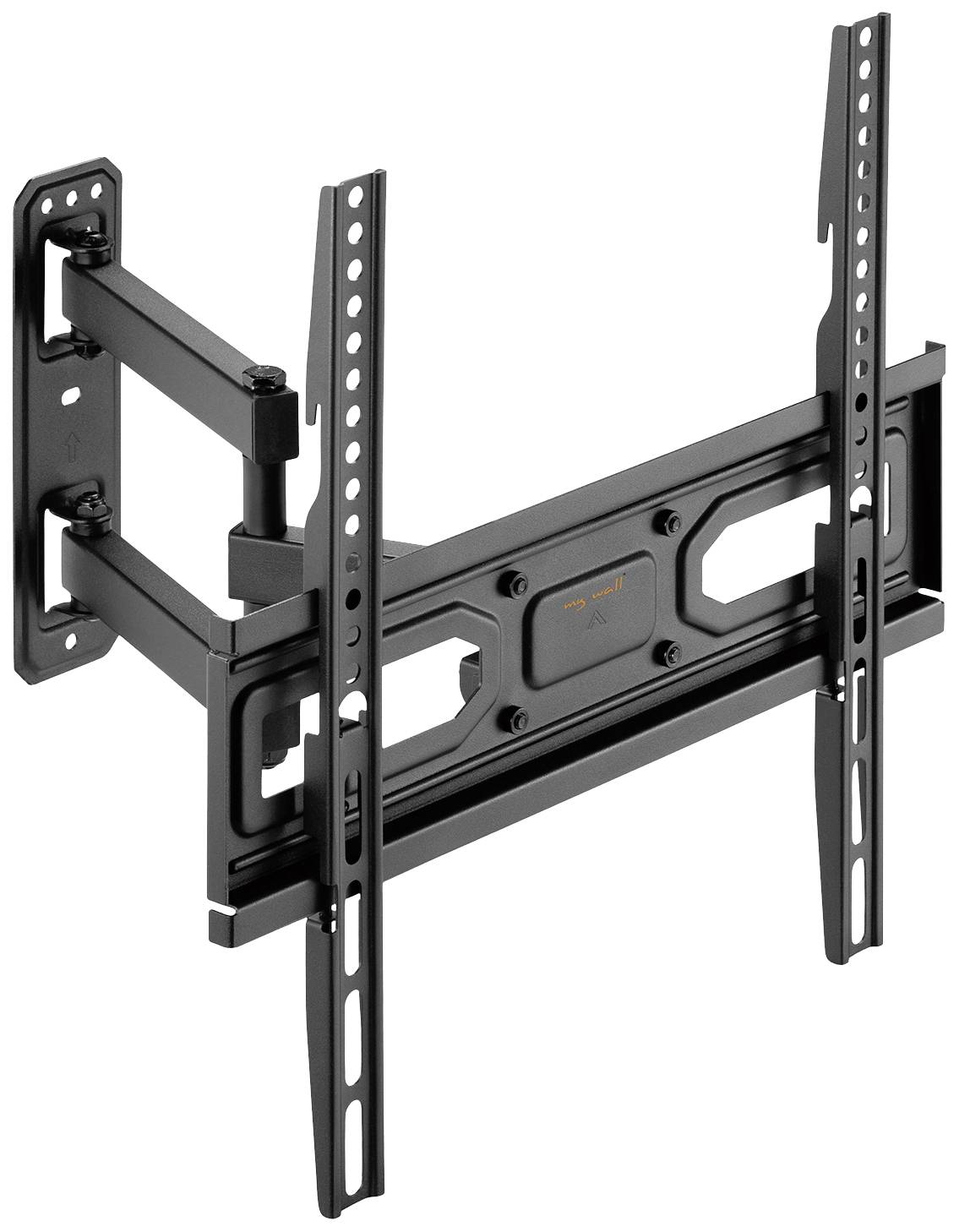

Wall mounting bracket for flat-screen televisions with a pivoting arm and adjustable fittings for wall attachment.

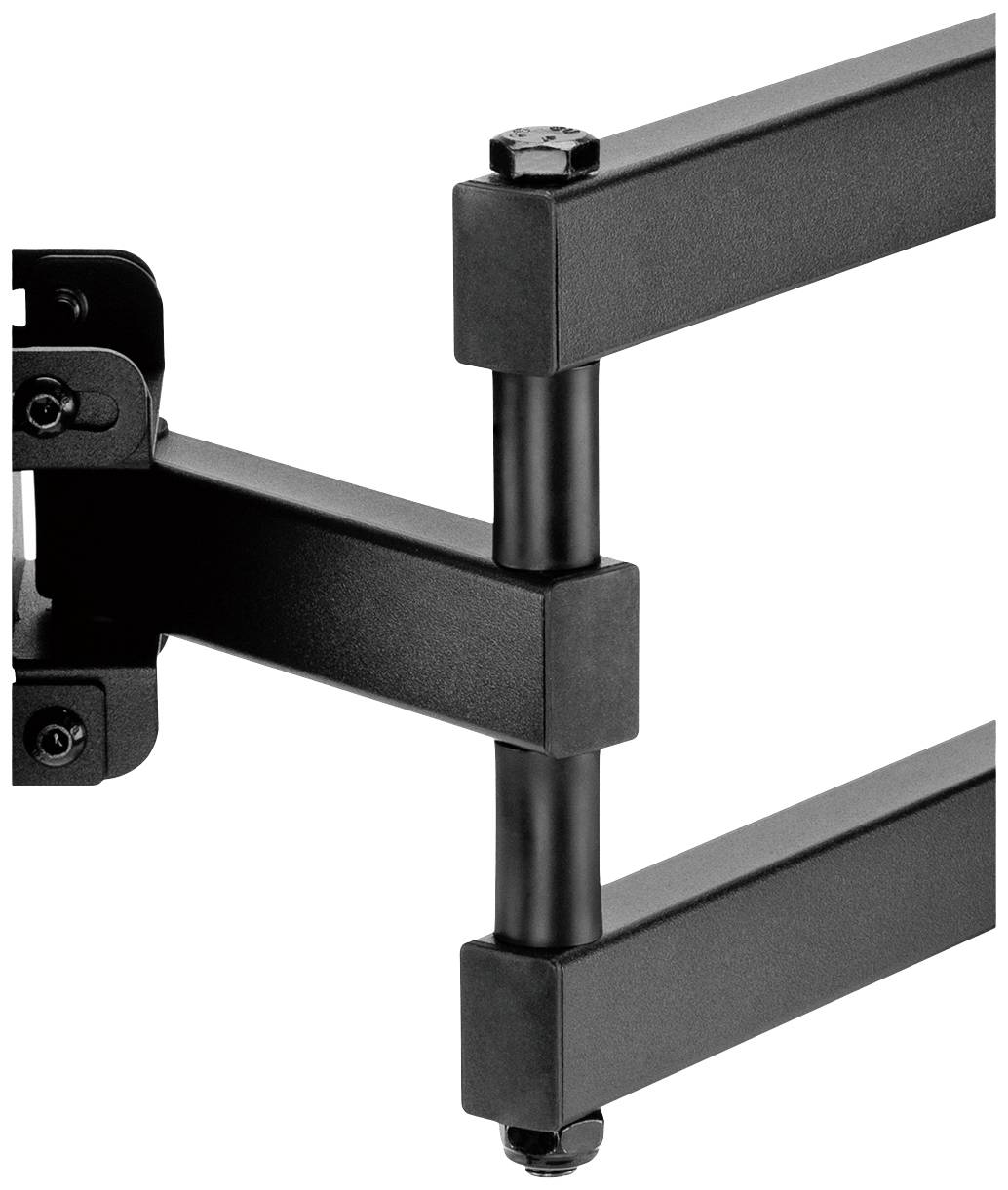

Close-up of a black, adjustable hinge on a wall-mounted arm, likely for mounting a television or monitor.

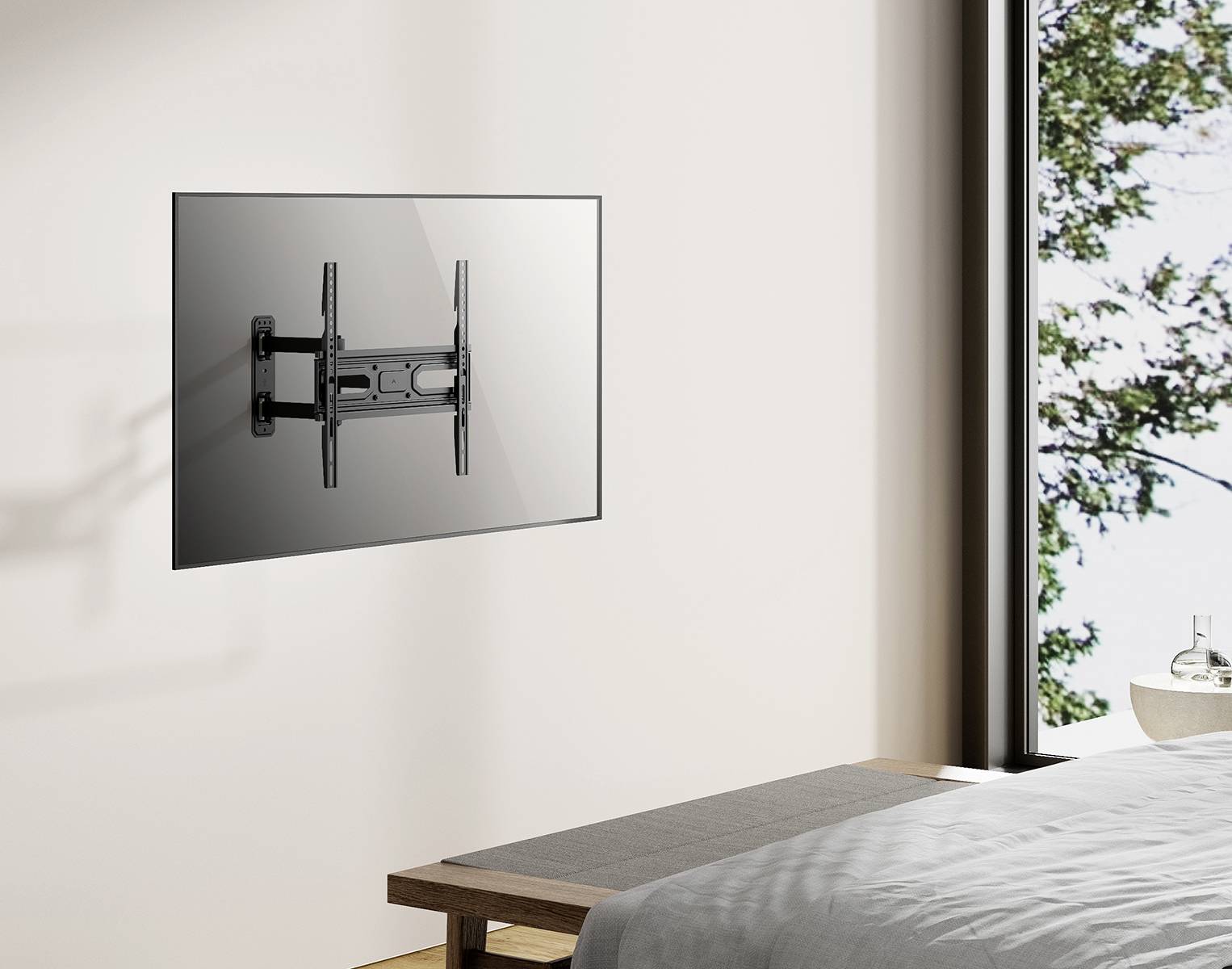

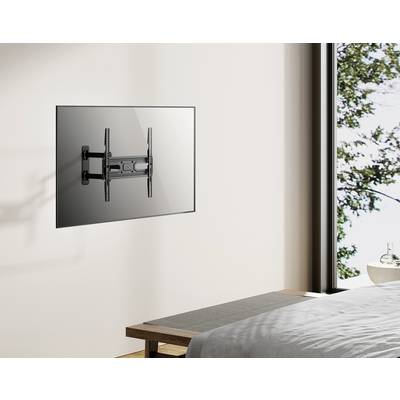

Television wall mount, fitted to a wall in a modern room with a large window overlooking a sunny garden.

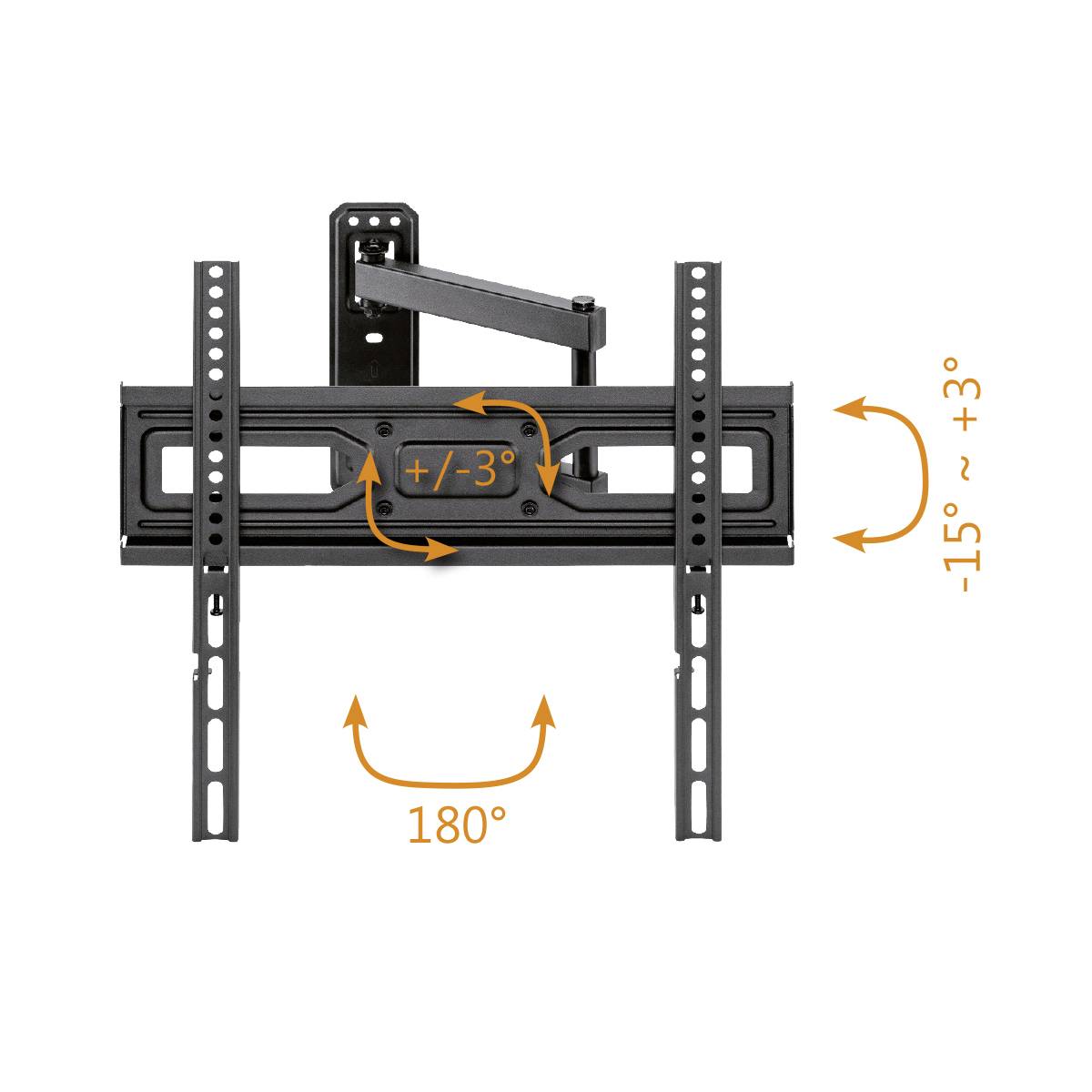

Wall mount for television with 180° movement, tiltable from -15° to +3°, for flexible adjustment of viewing angle.

Symbols indicate display size (81-140 cm, 32"-55"), weight (35 kg), rotation range (180°), tilt (-15° to +3°), swivel (+/- 3°).

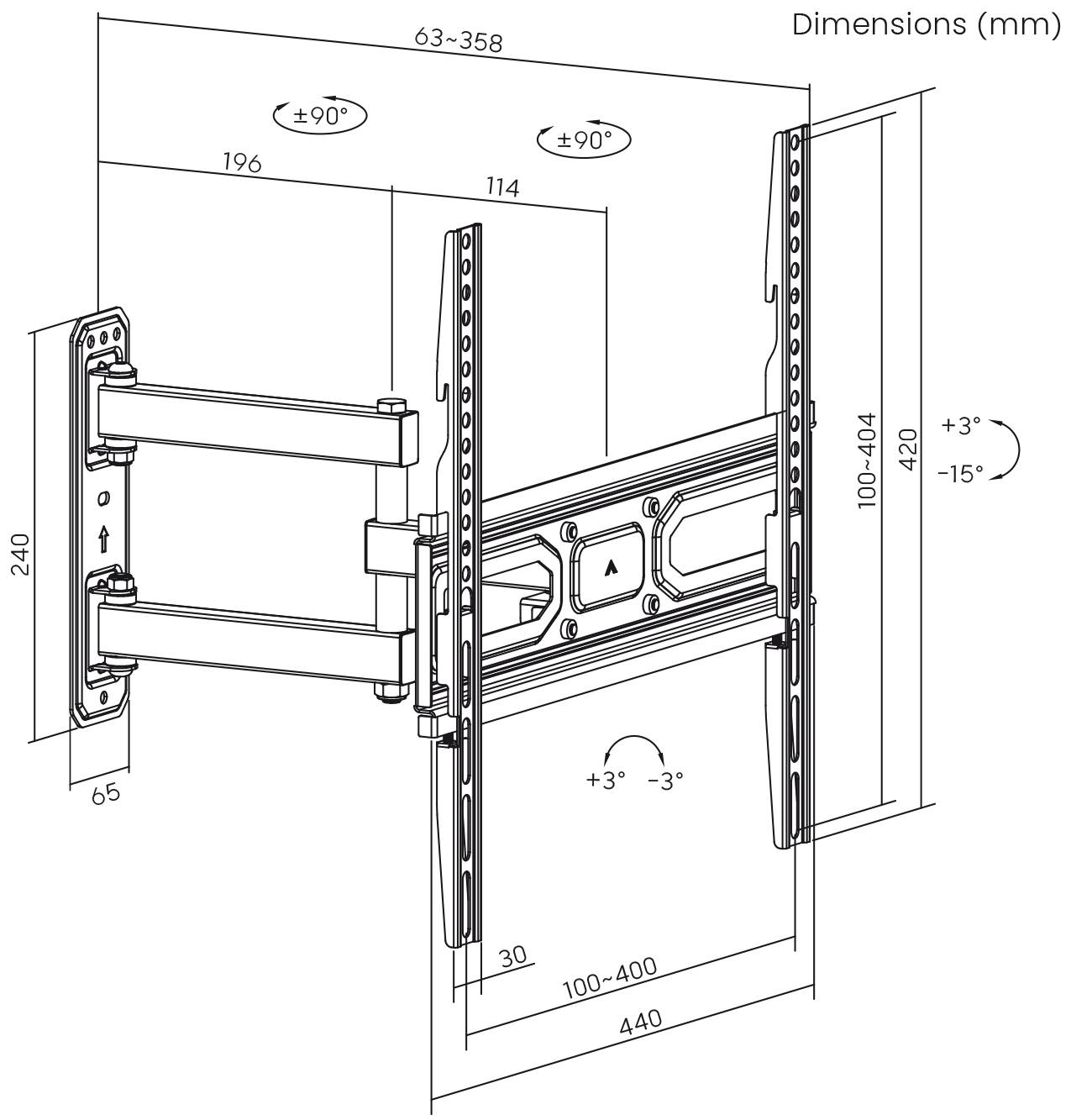

Technical drawing of a wall mount, dimensions specified in millimetres. Sketch shows adjustable angles and heights for installation.

1/9

Datasheet (PDF)

Fast track dispatch on Mon, 5 Oct

2 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 19.32 / piece)

€ 19.32

plus VAT.

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

My Wall H26-1AL TV wall mount

Holder type: Tiltable, Height-adjustable
Supports VESA standards up to
Suitable for displays sized (range): 81,3 cm (32") - 139,7 cm (55")
Load capacity (max.) 35 kg

Technical specifications

Tilt:+ 3° ~ - 15°
Side rotation: 180°
Screen can be adjusted horizontally: + / - 3°

Product type: TV wall mount

Suitable for: 81,3 cm (32")
83,8 cm (33")
86,4 cm (34")
88,9 cm (35")
91,4 cm (36")
94,0 cm (37")
95,3 cm (37,5")
96,5 cm (38")
99,1 cm (39")
101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
119,4 cm (47")
121,9 cm (48")
124,5 cm (49")
127,0 cm (50")
129,5 cm (51")
132,1 cm (52")
134,6 cm (53")
137,2 cm (54")
139,7 cm (55")
Show more

Suitable for: 81,3 cm (32") - 139,7 cm (55")

Holder type: Tiltable
Height-adjustable

Features: Variable distance from wall

Max. load capacity: 35 kg

: No

: 400 x 400 mm

Tilt range (bottom): -15°

Tilt range (top): 3°

Distance to wall (min.): 63 mm

Distance to wall (max.): 358 mm

Factory colour: Black

Documents & Downloads

Datasheet

Datasheet 3065411 My Wall H26-1AL TV wall mount 81,3 cm (32") - 139,7 cm (55") Tiltable, Height-adjustable Variable distance from wall

User & Safety Instructions

User & Safety Instructions 3065411 My Wall H26-1AL TV wall mount 81,3 cm (32") - 139,7 cm (55") Tiltable, Height-adjustable Variable distance from wall

Description

The fully moving TV mount enables perfect adjustment of your screen. Thus, the optimal viewing position can be adjusted quickly and easily. The bracket can be swiveled, inclined, horizontally aligned and adjusted with the 2-level height adjustment. The robust TV wall bracket can mount TV up to a weight of 35 kg securely to the wall. In addition, the wall distance can be varied from 63 – 358 mm. The television can be folded flat on the wall or pulled in the room, if needed. The integrated cable routing gives you more order behind your television. All connecting cables can be properly routed to the wall.

This text is machine translated.

Features

For screens 81 cm to 140 cm (32 in. To 55 in.)
Load up to 35 kg
Optimally adaptable
Variable distance from wall
2-level height adjustment
Cable management

Scope of delivery

Inc. mounting materials
Installation instructions.
