My Wall HF12L TV wall mount 33,0 cm (13") - 127,0 cm (50") Tiltable, Swivelling, Rotatable
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 13.44 / piece)
€ 13.44
plus VAT.
14-day return policy included
Highlights & Details

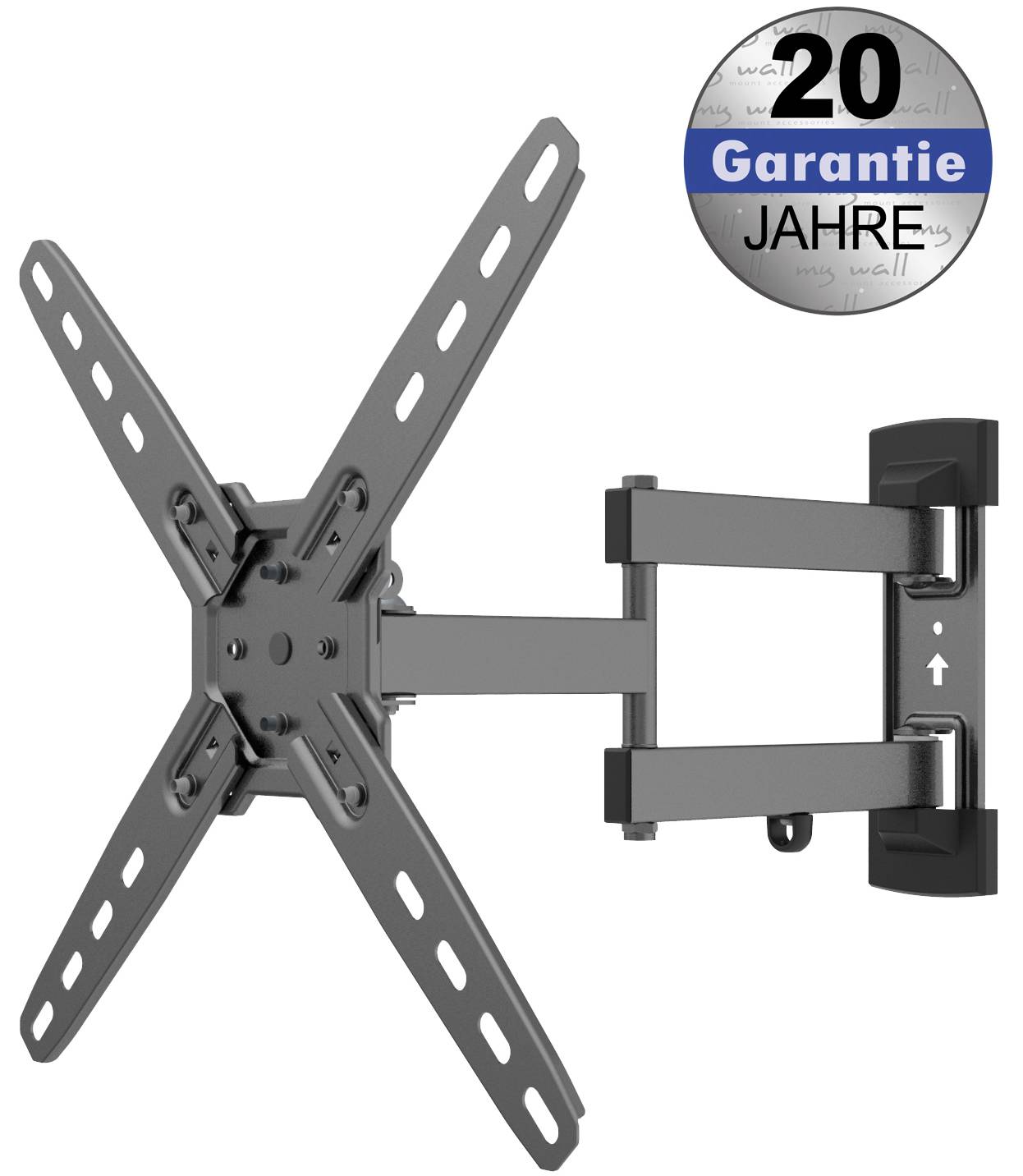

My Wall HF12L TV wall mount
- Holder type: Tiltable, Swivelling, Rotatable
- Supports VESA standards up to
- Suitable for displays sized (range): 33,0 cm (13") - 127,0 cm (50")
- Load capacity (max.) 25 kg
Technical specifications
- Product type
TV wall mount
- Suitable for
33,0 cm (13")
33,3 cm (13,1")
33,8 cm (13,3")
34 cm (13,4")
34,3 cm (13,5")
35 cm (13,8")
35,3 cm (13,9")
35,6 cm (14")
35,8 cm (14,1")
35,82 cm (14,1")
Show more
- Suitable for
33,0 cm (13") - 127,0 cm (50")
- Holder type
Tiltable
Swivelling
Rotatable
- Max. load capacity
25 kg
No
75 x 75 mm
300 x 300 mm

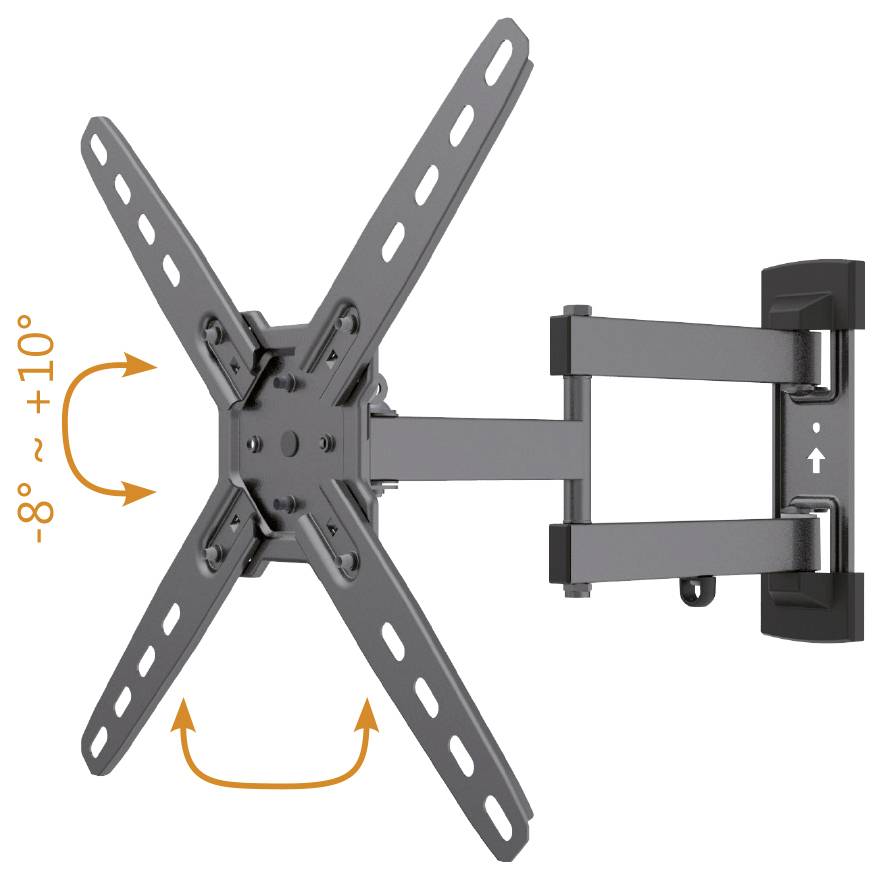

- Tilt range (bottom)
-8°
- Tilt range (top)
+10°
- Swivel range (left)

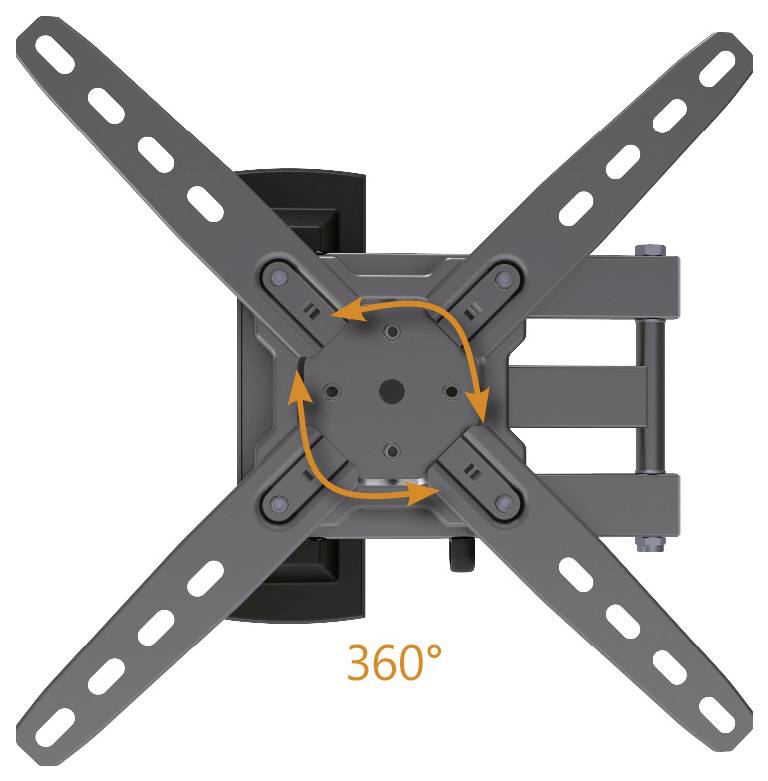

360°
- Swivel range (right)
360°

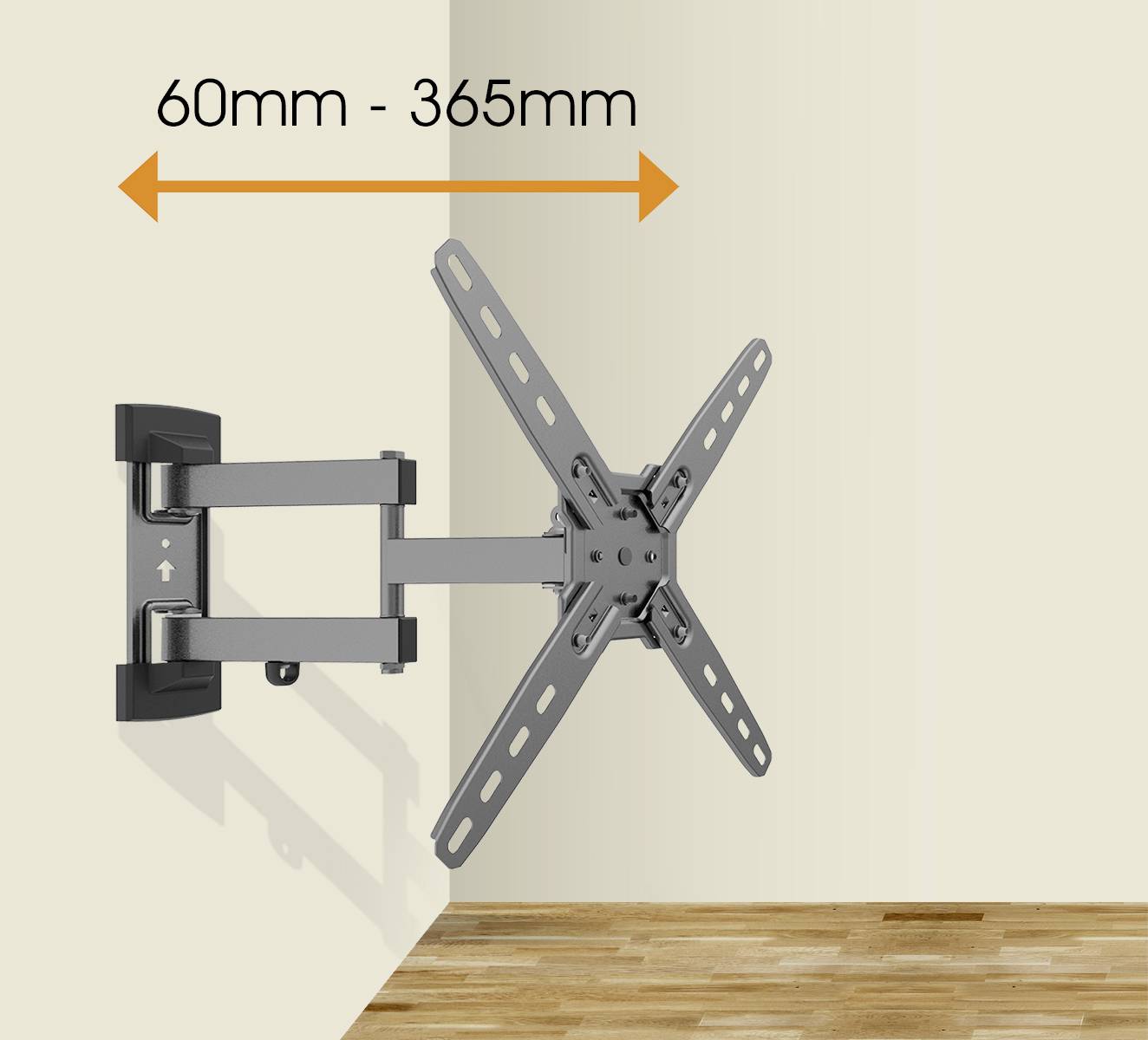

- Distance to wall (min.)
60 mm
- Distance to wall (max.)
365 mm
- Factory colour
Black
Compliance & Certifications
Certified by EU Garan
Documents & Downloads
Datasheet
Datasheet 3314694 My Wall HF12L TV wall mount 33,0 cm (13") - 127,0 cm (50") Tiltable, Swivelling, Rotatable
User & Safety Instructions
User & Safety Instructions 3314694 My Wall HF12L TV wall mount 33,0 cm (13") - 127,0 cm (50") Tiltable, Swivelling, Rotatable
Warranty Terms
Warranty Terms 3314694 My Wall HF12L TV wall mount 33,0 cm (13") - 127,0 cm (50") Tiltable, Swivelling, Rotatable
Description

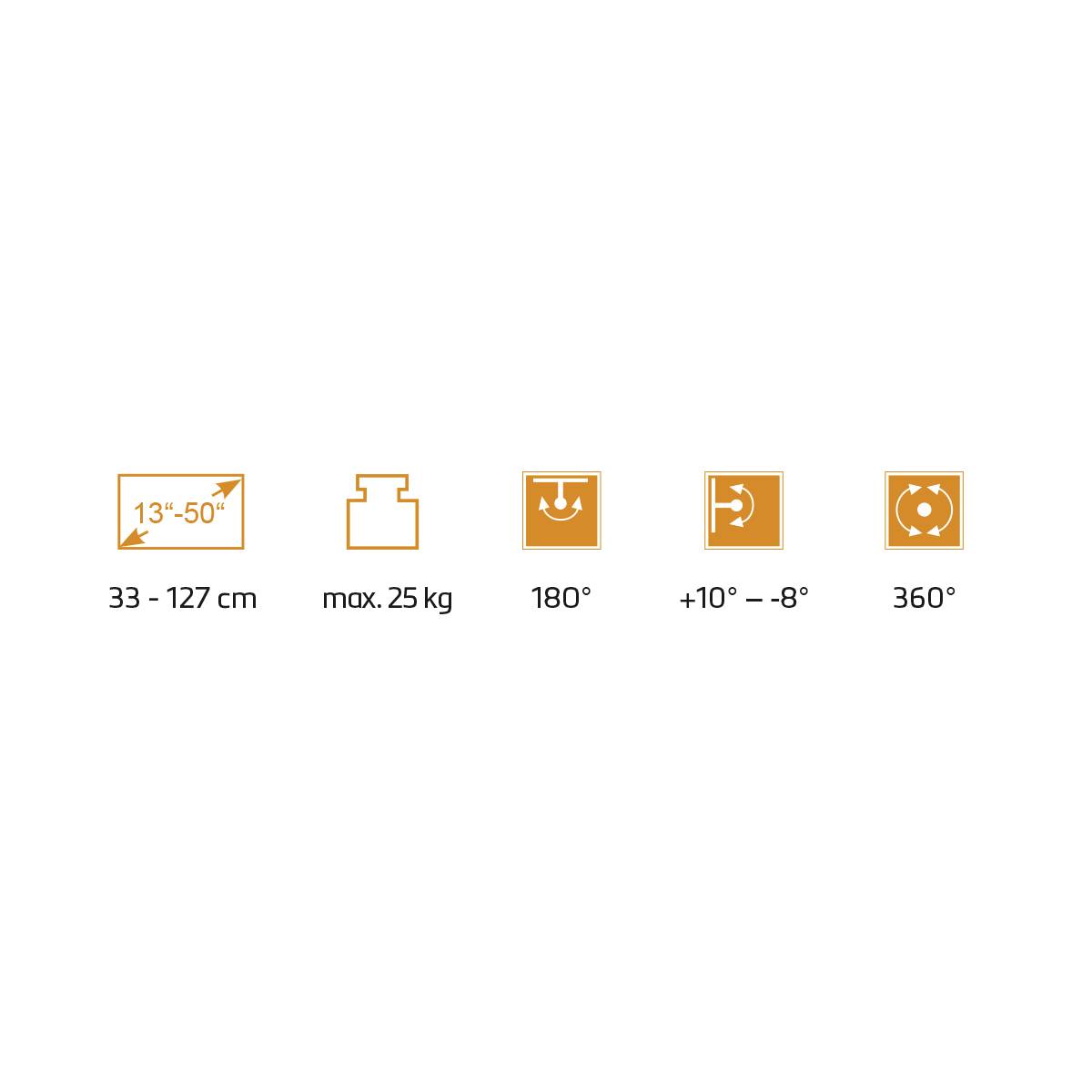

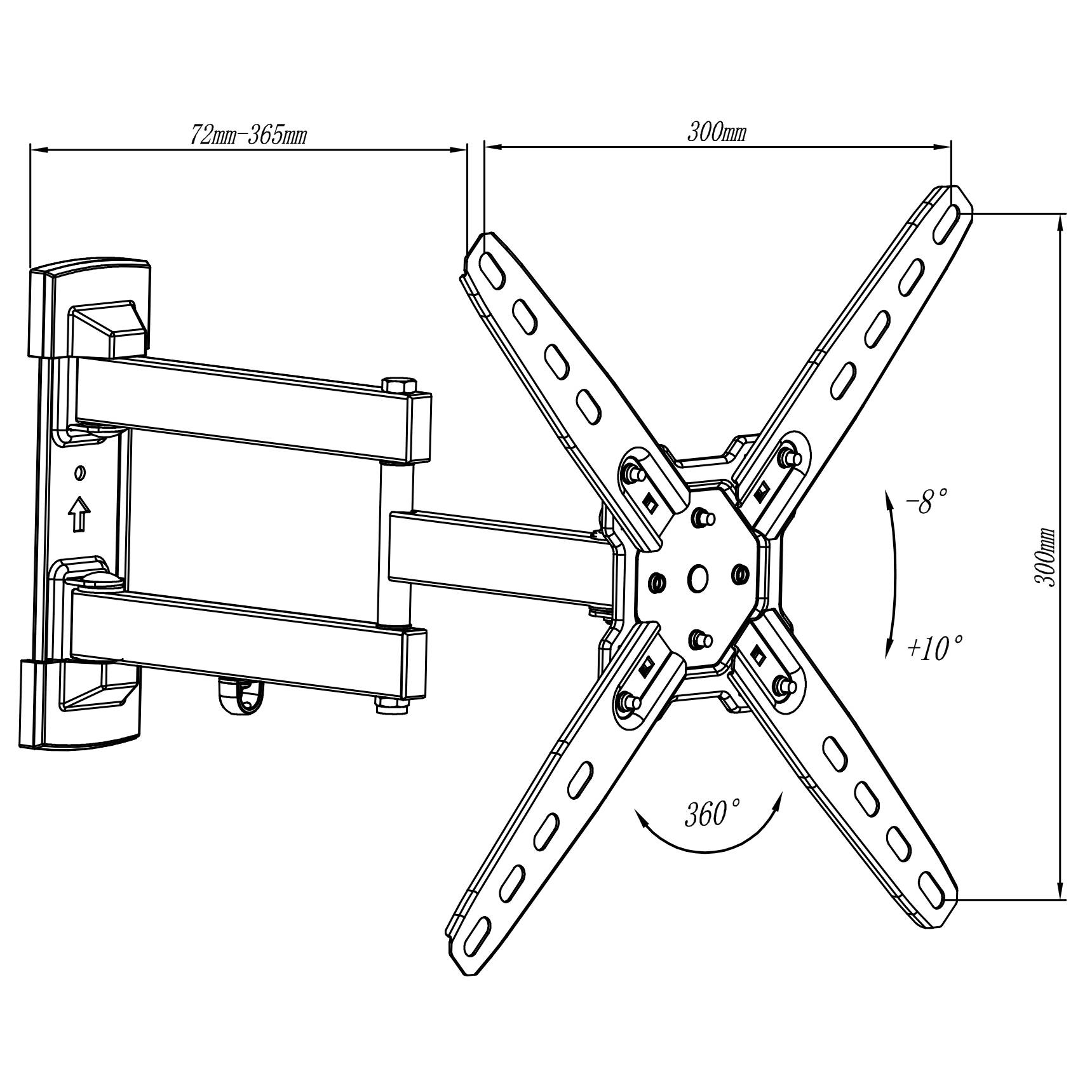

The versatile wall bracket for TVs or monitors with screen size of 13" – 50" (33 – 127 cm) does not leave anything undesired in the living room or in the office. The viewing angle can be optimally adjusted by tilting, rotating or horizontal alignment. The individual adjustment options enable the ideal viewing position for a comfortable television evening on the sofa or relaxed working in the office. Thanks to the adjustable wall distance of 60 - 365 mm the TV bracket finds place almost everywhere and can be mounted without any problems. The integrated cable routing guarantees a clean overall image, so that no loose hanging cables are visible. The mount is compatible with all screens with a VESA dimension of 75 – 300. Your television – perfectly placed anywhere! ✔️ Universal ✔️ Optimally adjustable ✔️ Variable distance from wall Technical details: For screens 13" - 50" (33 - 127 cm) Load up to 25 kg VESA: 75 - 300 Tilt: +10 / -8° 180° rotating Horizontal rotate 360° (in 90° steps) horizontal adjustable: +/- 2° Distance from wall: 60 - 365 mm With cable suspension Including mounting hardware and installation instructions In sales box User manual DOWNLOAD
