Buy My Wall HF20L TV wall mount 94,0 cm (37") - 177,8 cm (70") Tiltable, Swivelling, Swivelling, Retractable

An adjustable metal TV wall mount with multiple fixing points and pivoting arms for flexible positioning.

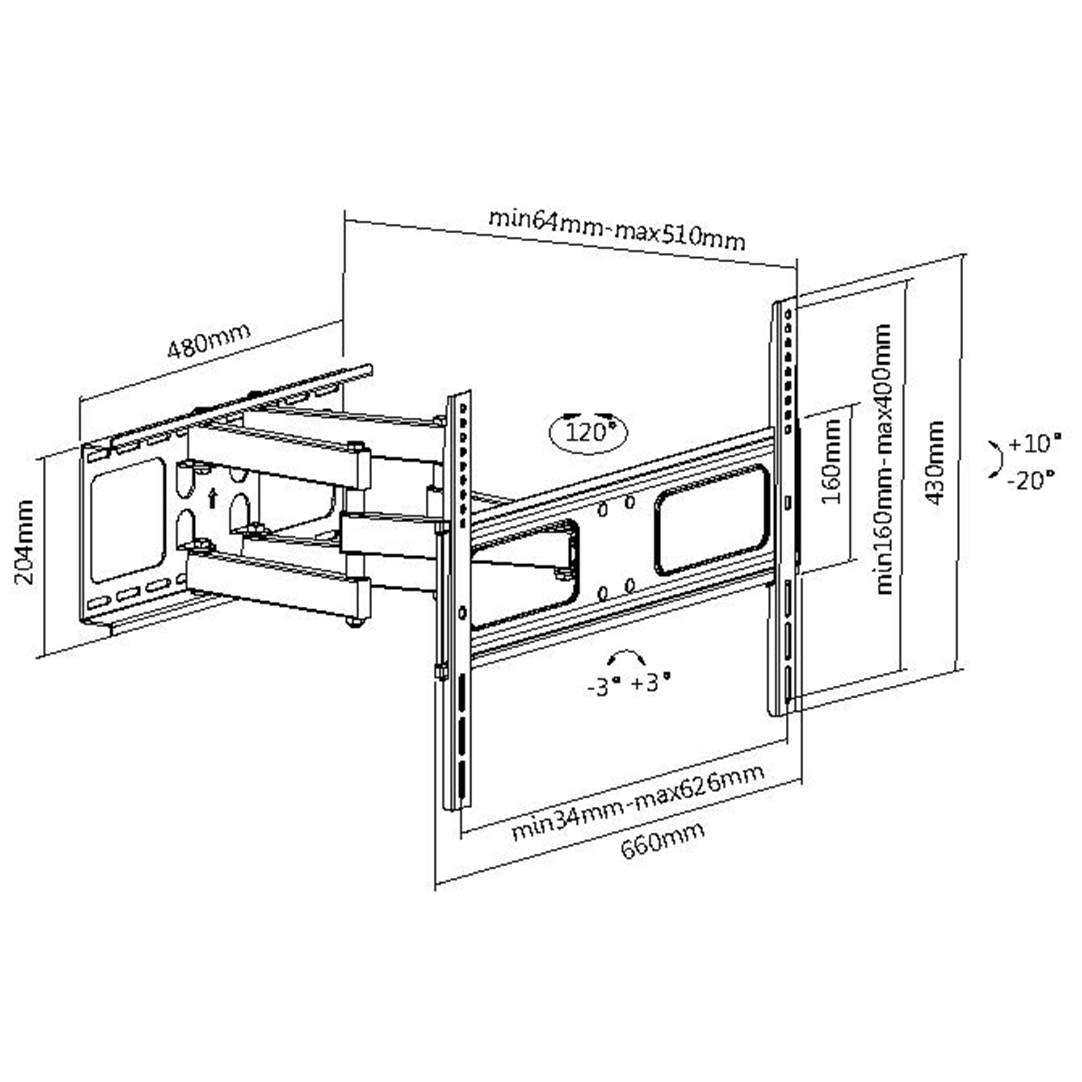

Technical Drawing of an Adjustable TV Wall Mount with Dimensions: Width 660 mm, Height 430 mm, Depth 64 to 510 mm. Tilt Angle +10° to -20°.

1/2

Fast track dispatch on Wed, 30 Sep

12 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 55.45 / piece)

€ 55.45

plus VAT.

14-day return policy included

Report legal concerns

Highlights & Details

Fully movable wall bracket for LCD screens 37" - 70" (94 - 178 cm), load up to 50 kg, wall distance: 64 - 510 mm

Supports all VESA standards up to 600x400
Can be swivelled
Tilt
Can be adjusted horizontally
Black

Technical specifications

Product type: TV wall mount

Suitable for: 101,6 cm (40")
104,1 cm (41")
106,7 cm (42")
109,2 cm (43")
111,8 cm (44")
114,3 cm (45")
116,8 cm (46")
119,4 cm (47")
121,9 cm (48")
124,5 cm (49")
127,0 cm (50")
129,5 cm (51")
132,1 cm (52")
134,6 cm (53")
137,2 cm (54")
139,7 cm (55")
142,2 cm (56")
144,8 cm (57")
147,3 cm (58")
149,9 cm (59")
152,4 cm (60")
154,9 cm (61")
157,5 cm (62")
160,0 cm (63")
162,6 cm (64")
165,1 cm (65")
167,6 cm (66")
170,2 cm (67")
172,7 cm (68")
175,3 cm (69")
177,8 cm (70")
94,0 cm (37")
96,5 cm (38")
99,1 cm (39")
Show more

Suitable for: 94,0 cm (37") - 177,8 cm (70")

Holder type: Tiltable
Swivelling
Swivelling
Retractable

Features: Variable distance from wall

Max. load capacity: 50 kg

: No

: 100 x 100 mm
100 x 200 mm
100 x 75 mm
150 x 100 mm
150 x 75 mm
200 x 100 mm
200 x 200 mm
200 x 300 mm
200 x 400 mm
30 x 30 mm
300 x 100 mm
300 x 200 mm
300 x 300 mm
300 x 400 mm
400 x 200 mm
400 x 300 mm
400 x 400 mm
50 x 50 mm
500 x 350 mm
500 x 400 mm
600 x 200 mm
600 x 300 mm
600 x 400 mm
75 x 75 mm
Show more

Tilt range (bottom): 20°

Tilt range (top): 10°

Swivel range (left): 60°

Swivel range (right): 60°

Distance to wall (min.): 64 mm

Distance to wall (max.): 510 mm

Width: 66 cm

Height: 43 cm

Depth: 51 cm

Factory colour: Black

Material (details): Steel

Weight: 6.8 kg

Dim: (W x H x D) 66 x 43 x 51 cm

UKCA: yes

Variants(All information is without VAT, plus shipping costs)

Holder type

Suitable for

VESA standard

Max. load capacity

My Wall HF20L TV wall mount 94,0 cm (37") - 177,8 cm (70") Tiltable, Swivelling, Swivelling, Retractable

Item no:1891217

This article

TiltableSwivellingSwivellingRetractable

94,0 cm (37") - 177,8 cm (70")

100 x 100 mm100 x 200 mm100 x 75 mm150 x 100 mm150 x 75 mm200 x 100 mm200 x 200 mm200 x 300 mm200 x 400 mm30 x 30 mm300 x 100 mm300 x 200 mm300 x 300 mm300 x 400 mm400 x 200 mm400 x 300 mm400 x 400 mm50 x 50 mm500 x 350 mm500 x 400 mm600 x 200 mm600 x 300 mm600 x 400 mm75 x 75 mm

50 kg

My Wall H19-1L TV wall mount 43,2 cm (17") - 94,0 cm (37") Tiltable, Swivelling, Swivelling

Item no:1891200

TiltableSwivellingSwivelling

43,2 cm (17") - 94,0 cm (37")

100 x 100 mm100 x 200 mm100 x 75 mm200 x 100 mm200 x 200 mm

35 kg

My Wall H19-2L TV wall mount 66,0 cm (26") - 119,4 cm (47") Tiltable, Swivelling, Swivelling, Retractable

Item no:1891201

TiltableSwivellingSwivellingRetractable

66,0 cm (26") - 119,4 cm (47")

100 x 100 mm100 x 200 mm100 x 75 mm200 x 100 mm200 x 200 mm200 x 300 mm200 x 400 mm300 x 100 mm300 x 200 mm300 x 300 mm300 x 400 mm400 x 200 mm400 x 300 mm400 x 400 mm75 x 75 mm

50 kg

My Wall H19-3L TV wall mount 81,3 cm (32") - 152,4 cm (60") Tiltable, Swivelling, Swivelling

Item no:1891202

TiltableSwivellingSwivelling

81,3 cm (32") - 152,4 cm (60")

100 x 100 mm100 x 200 mm100 x 75 mm150 x 100 mm150 x 75 mm200 x 100 mm200 x 200 mm200 x 300 mm200 x 400 mm300 x 100 mm300 x 200 mm300 x 300 mm300 x 400 mm400 x 200 mm400 x 300 mm400 x 400 mm500 x 350 mm500 x 400 mm600 x 200 mm600 x 300 mm600 x 400 mm75 x 75 mm

50 kg

My Wall H26-1WL TV wall mount 81,3 cm (32") - 139,7 cm (55") Tiltable, Swivelling, Swivelling, Retractable Variable distance from wall

Item no:1891204

TiltableSwivellingSwivellingRetractable

81,3 cm (32") - 139,7 cm (55")

50 kg

My Wall H26-2WL TV wall mount 94,0 cm (37") - 177,8 cm (70") Tiltable, Swivelling, Swivelling, Retractable Variable distance from wall

Item no:1891205

TiltableSwivellingSwivellingRetractable

94,0 cm (37") - 177,8 cm (70")

100 x 100 mm100 x 200 mm100 x 75 mm150 x 100 mm150 x 75 mm200 x 100 mm200 x 200 mm200 x 300 mm200 x 400 mm30 x 30 mm300 x 100 mm300 x 200 mm300 x 300 mm300 x 400 mm400 x 200 mm400 x 300 mm400 x 400 mm400 x 600 mm400 x 800 mm440 x 400 mm50 x 50 mm500 x 350 mm500 x 400 mm600 x 200 mm600 x 300 mm600 x 400 mm75 x 75 mm

50 kg

My Wall H9-2SL TV wall mount 25,4 cm (10") - 76,2 cm (30") Rigid

Item no:1891207

Rigid

25,4 cm (10") - 76,2 cm (30")

100 x 100 mm100 x 75 mm50 x 50 mm75 x 75 mm

20 kg

My Wall H9-3SL TV wall mount 25,4 cm (10") - 76,2 cm (30") Tiltable, Swivelling

Item no:1891209

TiltableSwivelling

25,4 cm (10") - 76,2 cm (30")

100 x 100 mm100 x 75 mm50 x 50 mm75 x 75 mm

20 kg

My Wall HE2-3AL TV wall mount 94,0 cm (37") - 177,8 cm (70") Rigid

Item no:1891213

Rigid

94,0 cm (37") - 177,8 cm (70")

65 kg

My Wall HF1-3L TV wall mount 94,0 cm (37") - 177,8 cm (70") Rigid

Item no:1891215

Rigid

94,0 cm (37") - 177,8 cm (70")

35 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1891217 My Wall HF20L TV wall mount 94,0 cm (37") - 177,8 cm (70") Tiltable, Swivelling, Swivelling, Retractable

Warranty Terms

Warranty Terms 1891217 My Wall HF20L TV wall mount 94,0 cm (37") - 177,8 cm (70") Tiltable, Swivelling, Swivelling, Retractable

Description

This robust holder can be moved to your favorite position. Have full control over the angle of inclination, angle of rotation, horizontal position and distance to the wall.

This text is machine translated.

Scope of delivery

Mount
Screw set
Installation instructions
