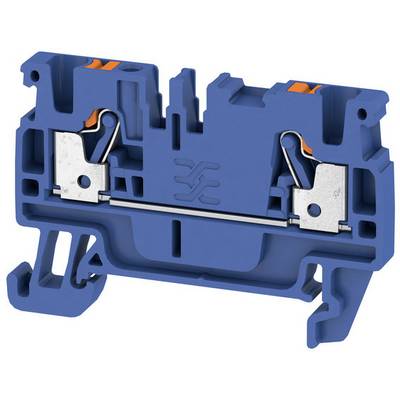

Weidmüller 2508000000 Continuity 5.1 mm Pull spring Dark blue 100 pc(s)
EAN:
Part number:
Item no:
Product type
Continuity
Connection
Pull spring
Cross section (flexible) (max.)
2.5 mm²
Cross section (inflexible) (max.)
2.5 mm²
Nominal current - rounded value
24 A
Datasheet (PDF)
Number (Package size 100 pc(s))
Total (€ 0.79 / piece)
€ 78.98
plus VAT.
Only 5 Set(s) available
Highlights & Details
Feed-through terminal
- A2C 2.5 DBL
Technical specifications
- Product type
Continuity
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
2.5 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
2.5 mm²
- AWG (min.)
28
- AWG max.
12
- Clamp width
5.1 mm
- No. of rows
1
- Pins per row
2
- Number of pins
2
- Factory colour
Dark blue
- Nominal current
24 A
- Nominal current - rounded value
24 A
- Nominal voltage
800 V
- Stripping length (max.)
10 mm
- Manufacturer part #
2508000000
- Content
100 pc(s)
- Industrial packaging
Yes
- Type
A2C 2.5 DBL
- Dim
(L x W x H) 36.5 x 5.1 x 55 mm
- Width
5.1 mm
- Height
55 mm
- Length
36.5 mm
- RoHS-compliant
Yes
Documents & Downloads
Datasheet
Datasheet 1695304 Weidmüller 2508000000 Continuity 5.1 mm Pull spring Dark blue 100 pc(s)
