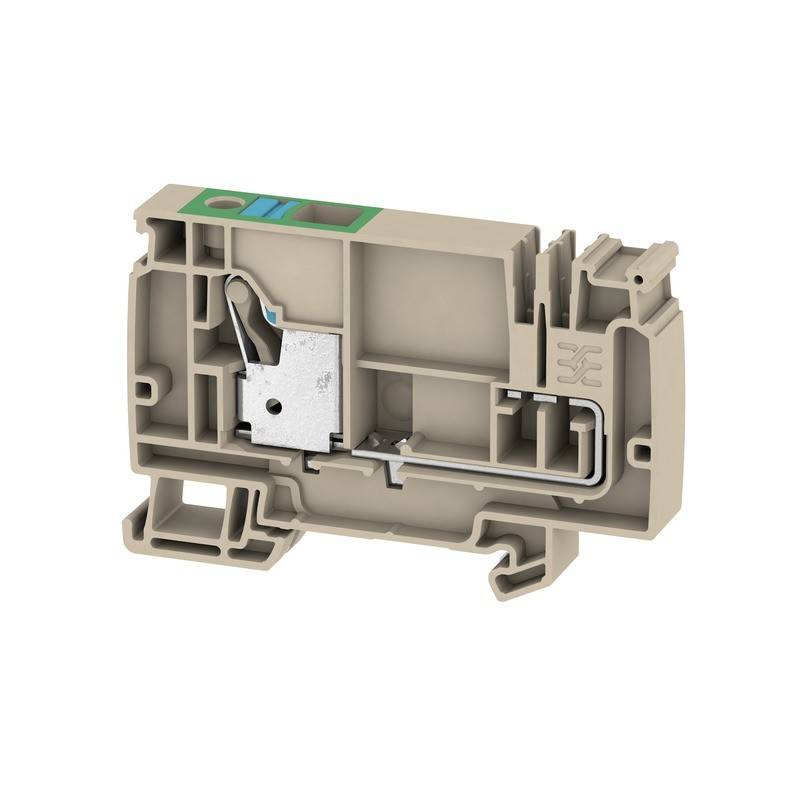

Weidmüller 2428920000 Feeder terminal 12 mm Pull spring Beige 20 pc(s)
EAN:
Part number:
Item no:
Product type
Feeder terminal
Connection
Pull spring
Cross section (flexible) (max.)
10 mm²
Cross section (inflexible) (max.)
10 mm²
Content
20 pc(s)
Datasheet (PDF)
Total (€ 2.02 / piece)
€ 2,016.50
plus VAT.
14-day return policy included
Highlights & Details
Power connection terminal
- AAP21 10 FE
Technical specifications
- Product type
Feeder terminal
- Connection
Pull spring
- Cross section (flexible) (min.)
0.5 mm²
- Cross section (flexible) (max.)
10 mm²
- Cross section (inflexible) (min.)
0.5 mm²
- Cross section (inflexible) (max.)
10 mm²
- AWG (min.)
20
- AWG max.
6
- Clamp width
12 mm
- Factory colour
Beige
- Nominal voltage
250 V
- Stripping length (max.)
18 mm
- Manufacturer part #
2428920000
- Content
20 pc(s)
- Industrial packaging
Yes
- Type
AAP21 10 FE
- Dim
(L x W x H) 53.50 x 12 x 82 mm
- Width
12 mm
- Height
82 mm
- Length
53.50 mm
- RoHS-compliant
Yes
- Connector colour
Blue
- UKCA
not relevant
