1/7
N/A KS Tools 140.2630 KS Tools 140.2630
EAN:
Part number:
Item no:
Technical specifications
- Product type
Car window removal kit
- Tension/pressure capacity
110 kg
- Weight
4500 g
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3206559 N/A KS Tools 140.2630 KS Tools 140.2630
Description
• universal use
• Ideal for the professional and gentle removal of glued windshields as well as most rear and side windows
• With a large pulley, thereby reducing the amount of force required and minimizing the risk of wire cracking

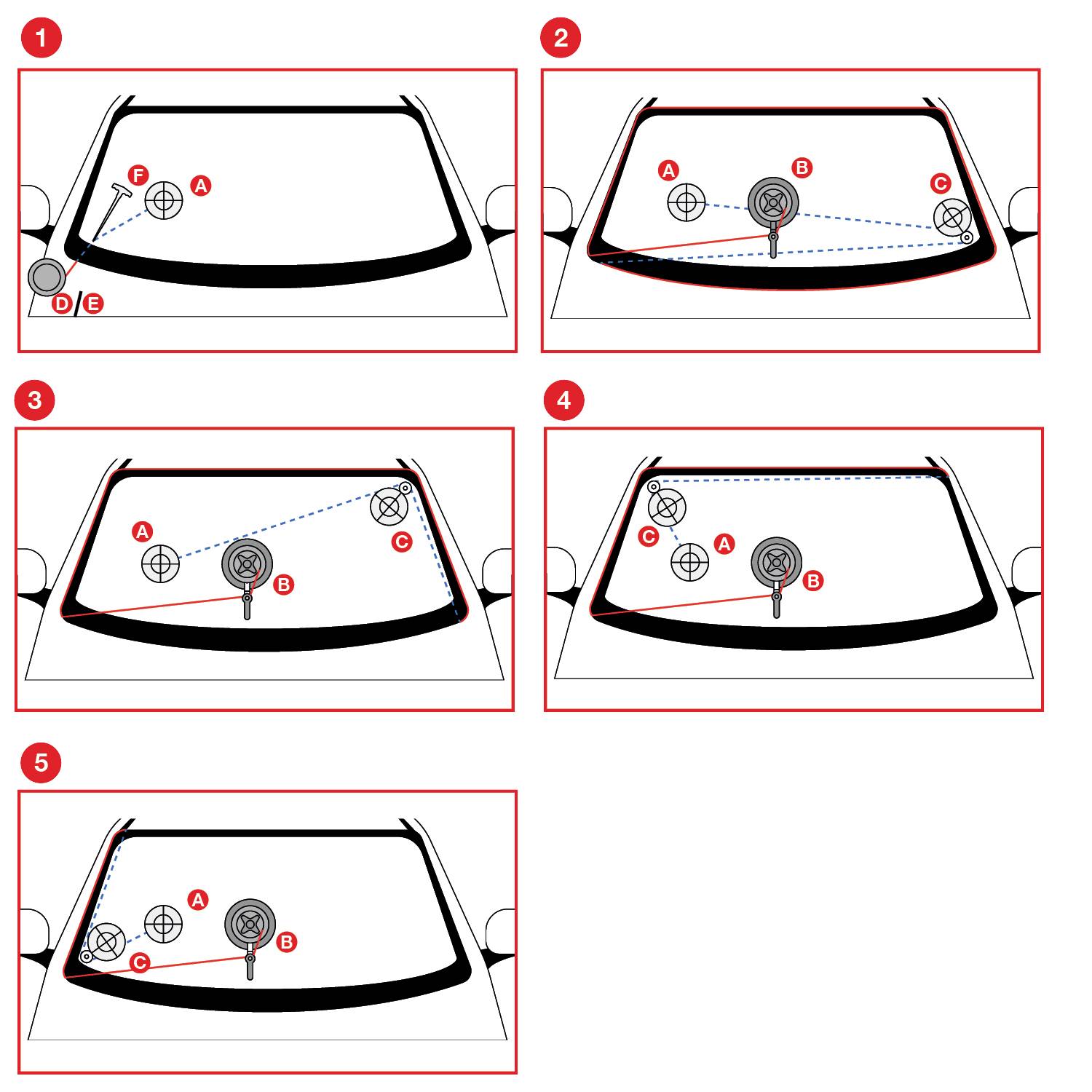

• Wire guidance directly in front of the window, which in most cases eliminates the need for complex dismantling of trim parts
• Easy operation with one-man operation
• High quality pump suction for a secure hold on the window
• Suction power per plate up to max. 25 kg
• In plastic bag
This text is machine translated.
• Ideal for the professional and gentle removal of glued windshields as well as most rear and side windows
• With a large pulley, thereby reducing the amount of force required and minimizing the risk of wire cracking
• Wire guidance directly in front of the window, which in most cases eliminates the need for complex dismantling of trim parts
• Easy operation with one-man operation
• High quality pump suction for a secure hold on the window
• Suction power per plate up to max. 25 kg
• In plastic bag
This text is machine translated.

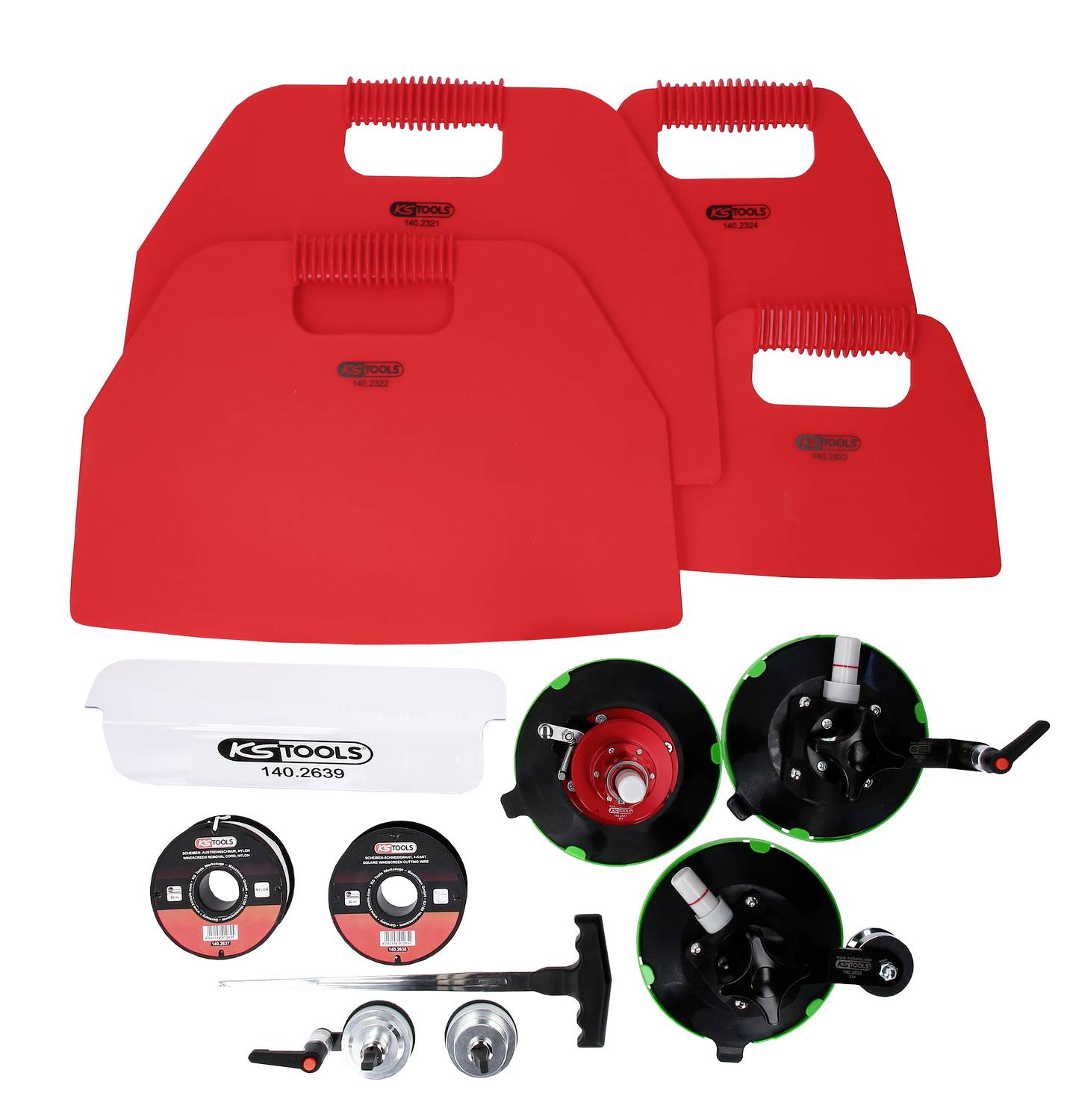

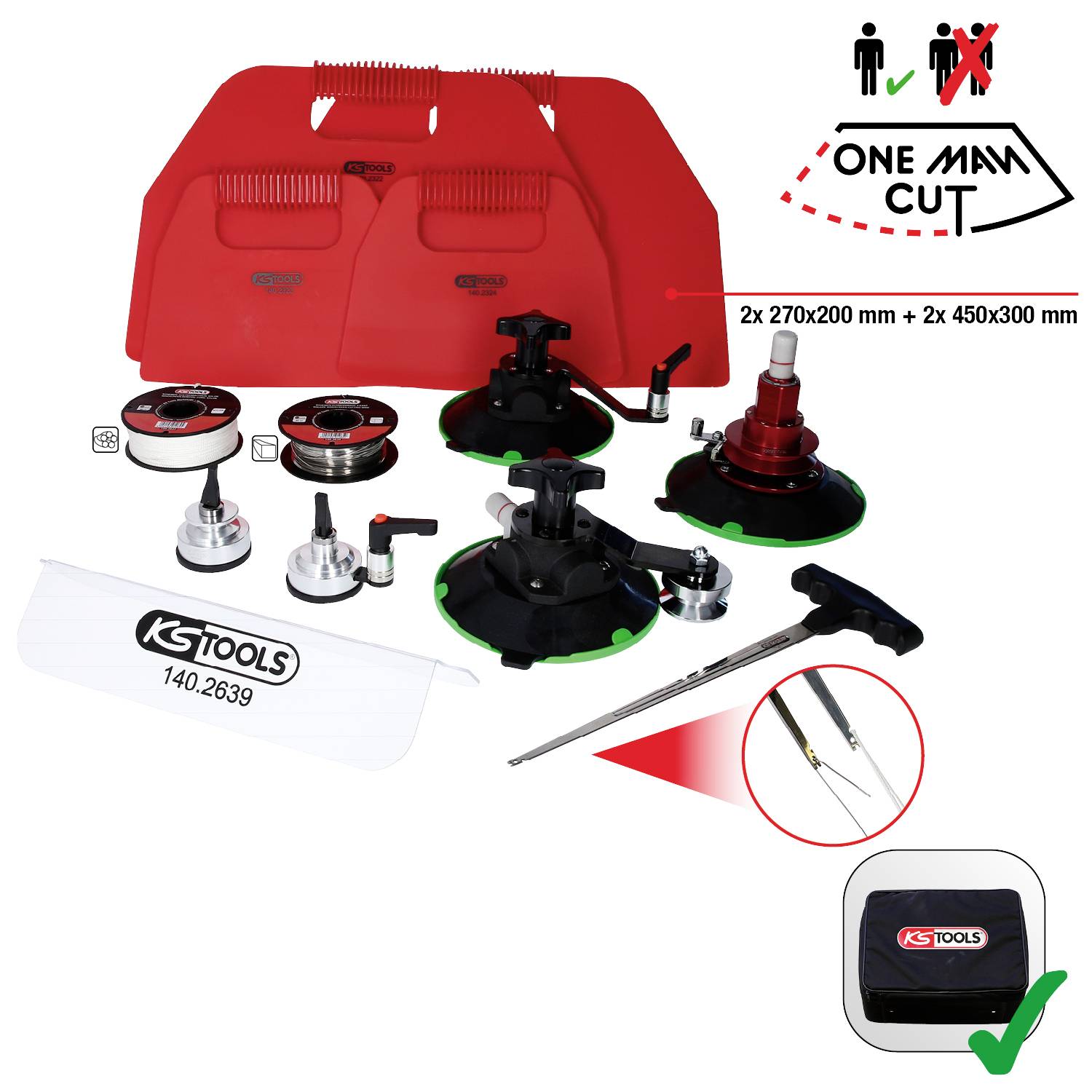

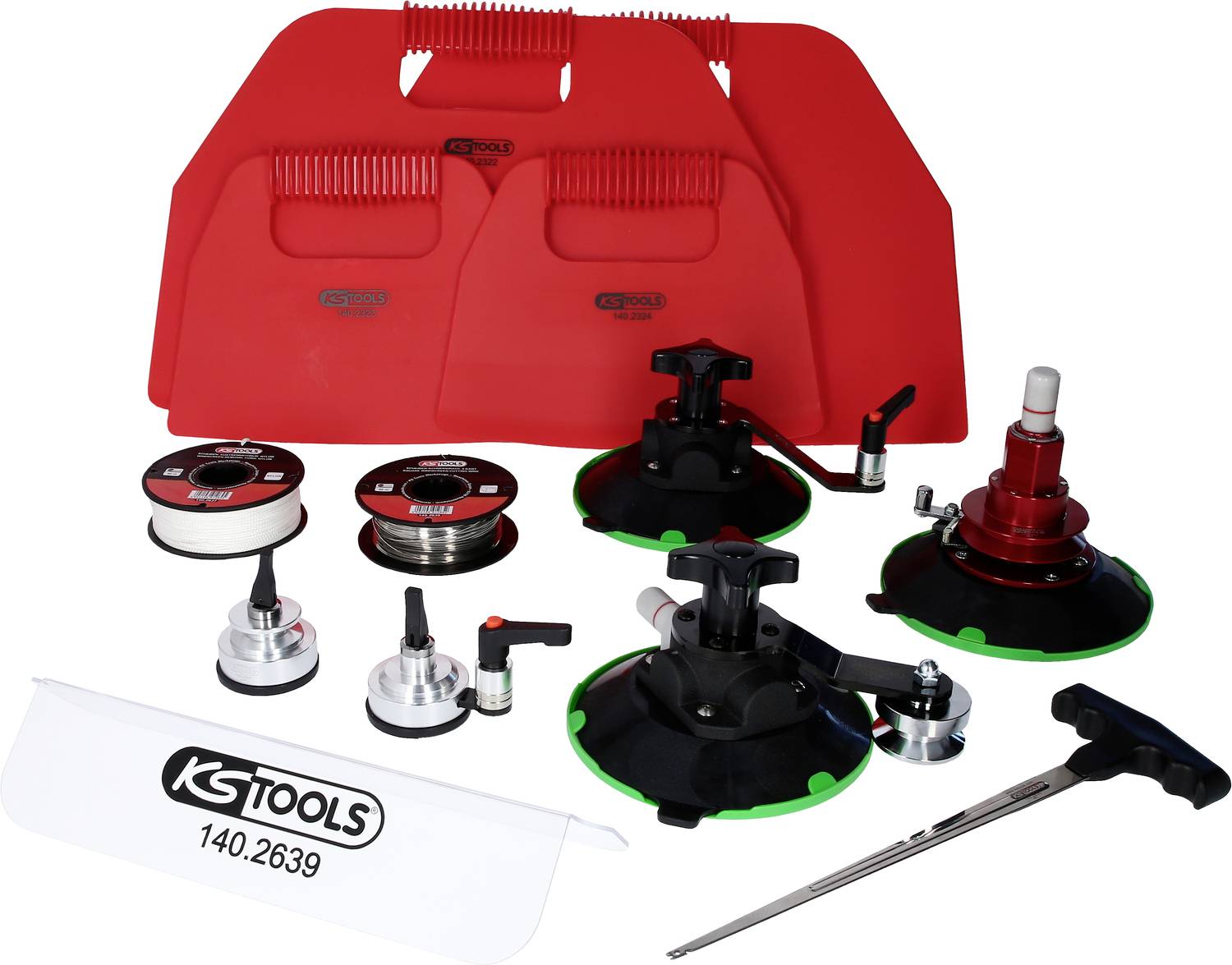

Scope of delivery
- 140.2321 - professional protective panel, straight, 450x300mm
- 140.2322 - Professional protective board, angled, 450x300mm
- 140.2323 - professional protective panel, straight, 270x200mm
- 140.2324 - professional protective board, angled, 270x200mm

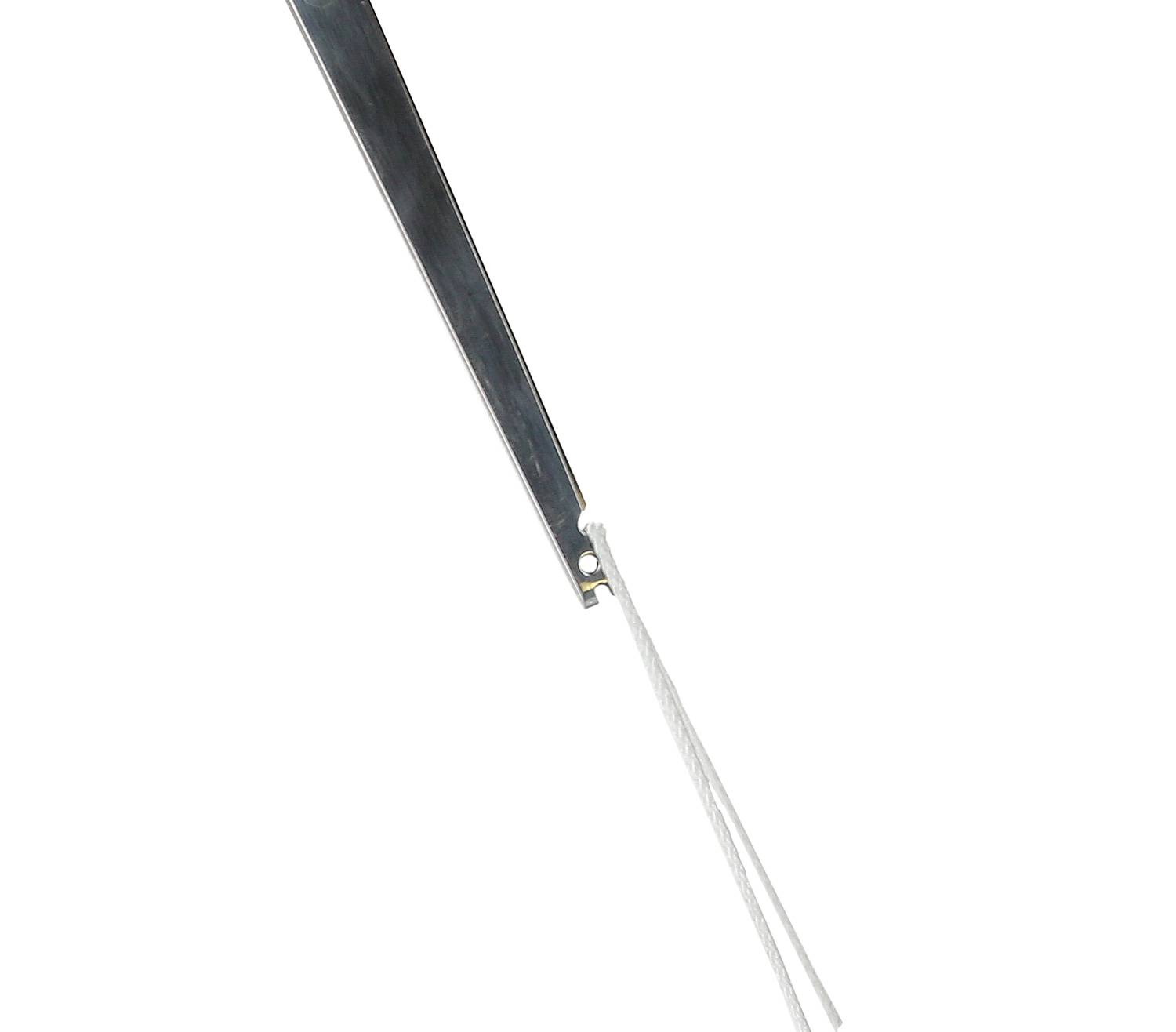

- 140.2637 - Disc - separating cord, nylon, 50m
- 140.2638 - Disc cutting wire, 4-edged, 50m on roll

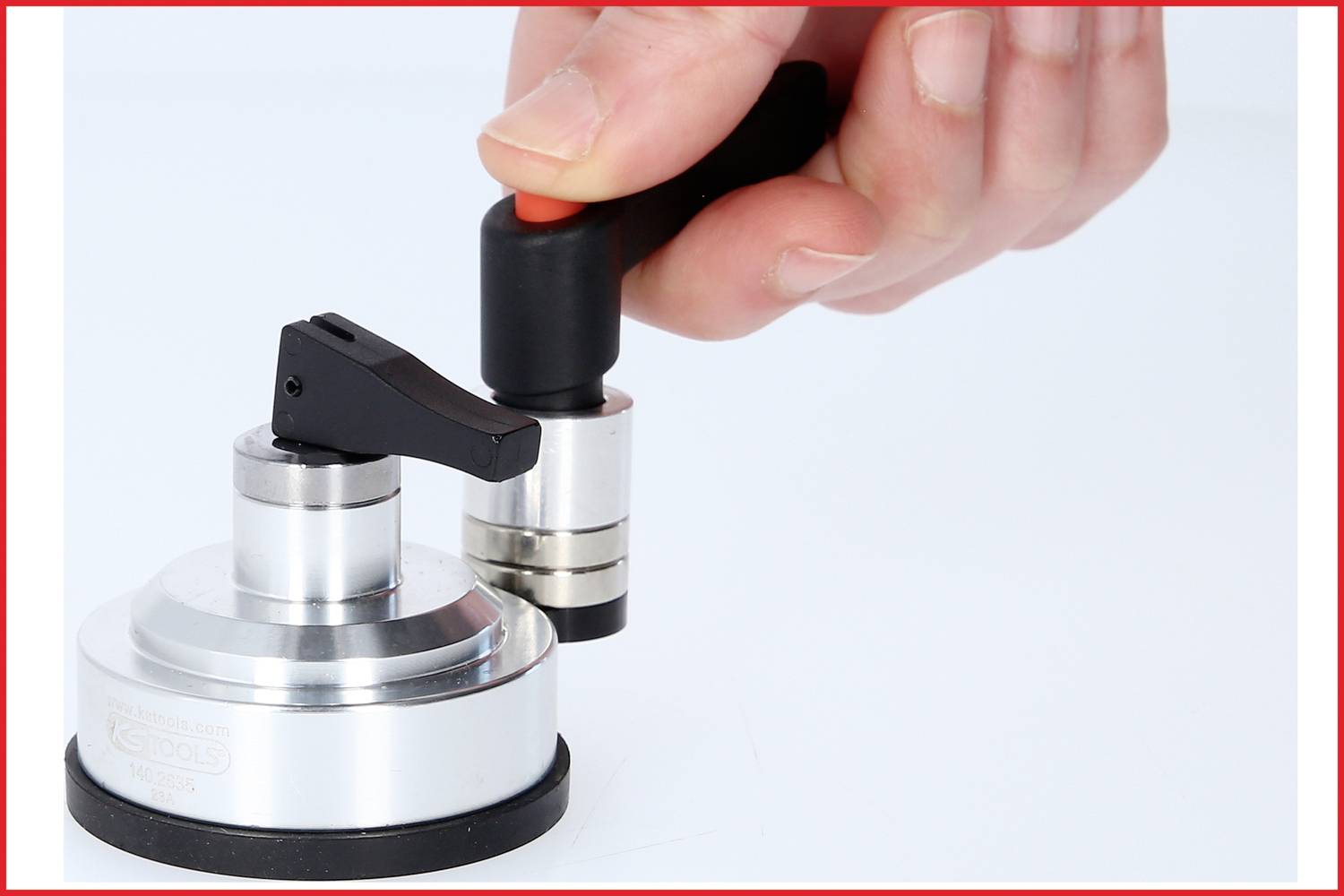

- 140.2631 - base unit with hexagonal drive for universal one-man operation disc separator, Ø 150 mm
- 140.2632 - Counter-holder for wire coil, Ø 150 mm
- 140.2633 - rope diverter, with single suction head, Ø 150 mm
- 140.2634 - Pulley for side disc, Ø 55 mm
- 140.2635 - Counter-holder for side discs, Ø 55 mm
- 140.2639 - protective board, angled
- 140.2630-99 - Bag for 140.2630

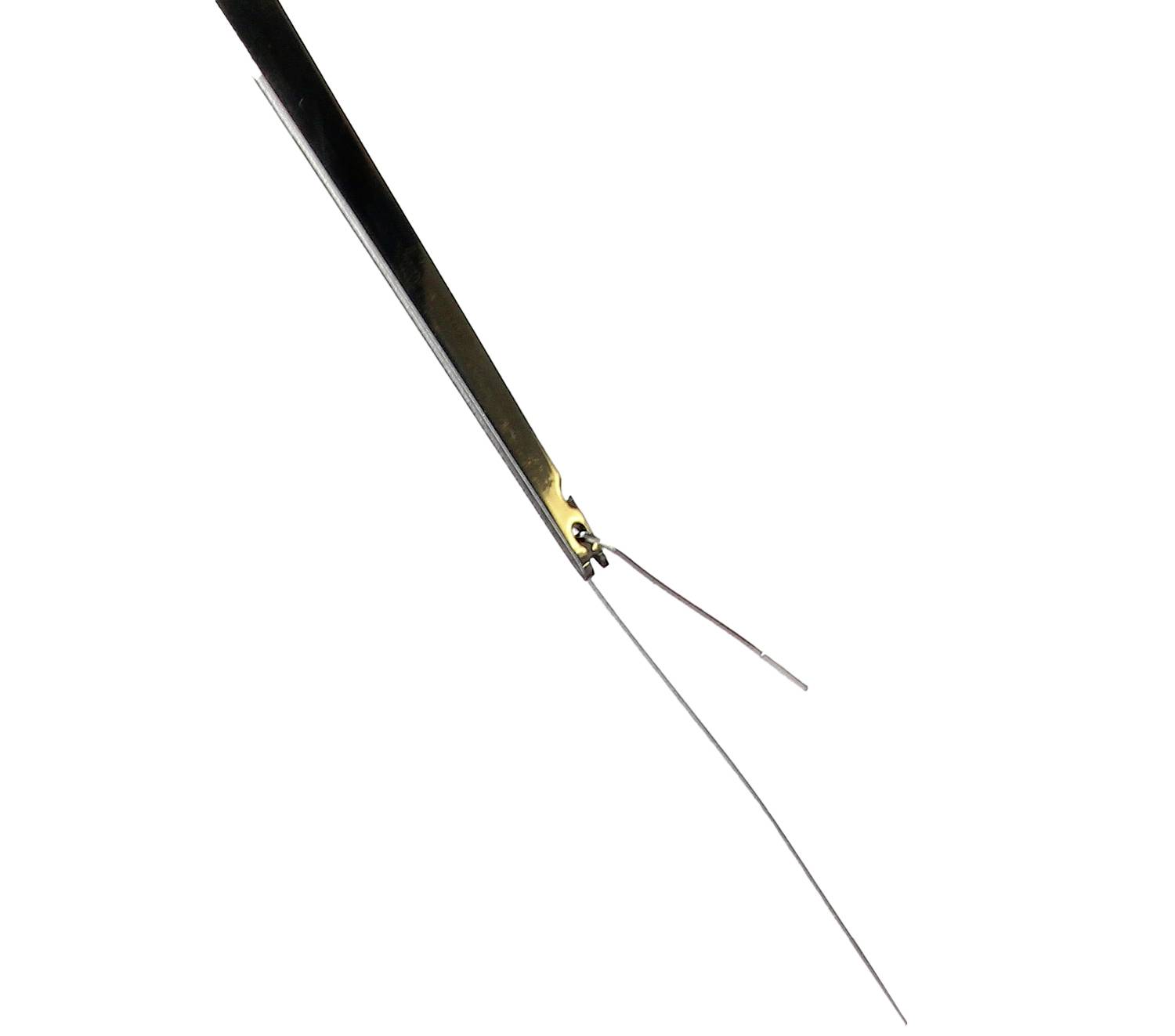

- 140.2636 - Cut wire insertion probe, 290 mm
