N/A KS Tools 500.8660 KS Tools 500.8660
EAN:
Part number:
Item no:
Highlights & Details
N/A KS Tools 500.8660

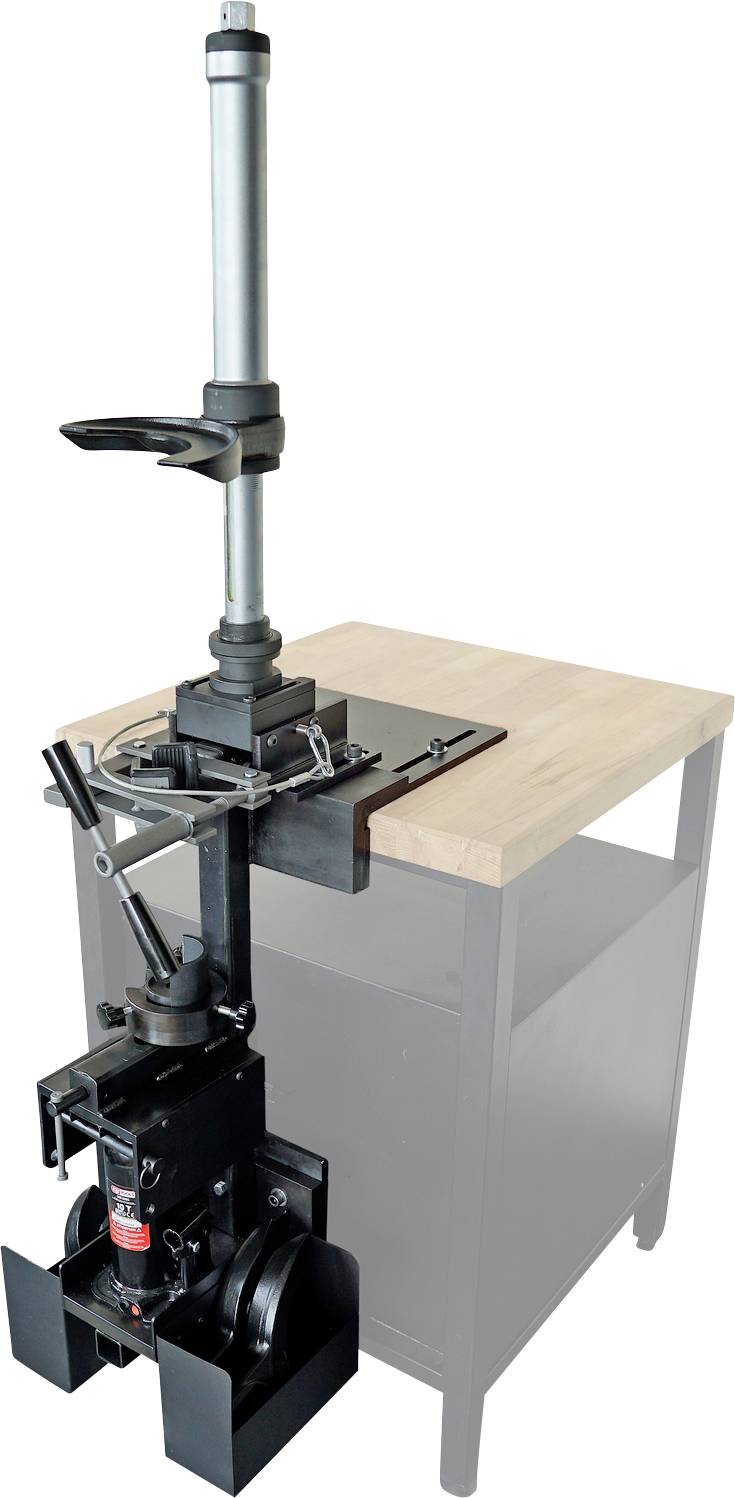

- Sophisticated overall construction with large and variable adjustment and setting range
- The telescopic leg is held in place at the damper tube without any damage

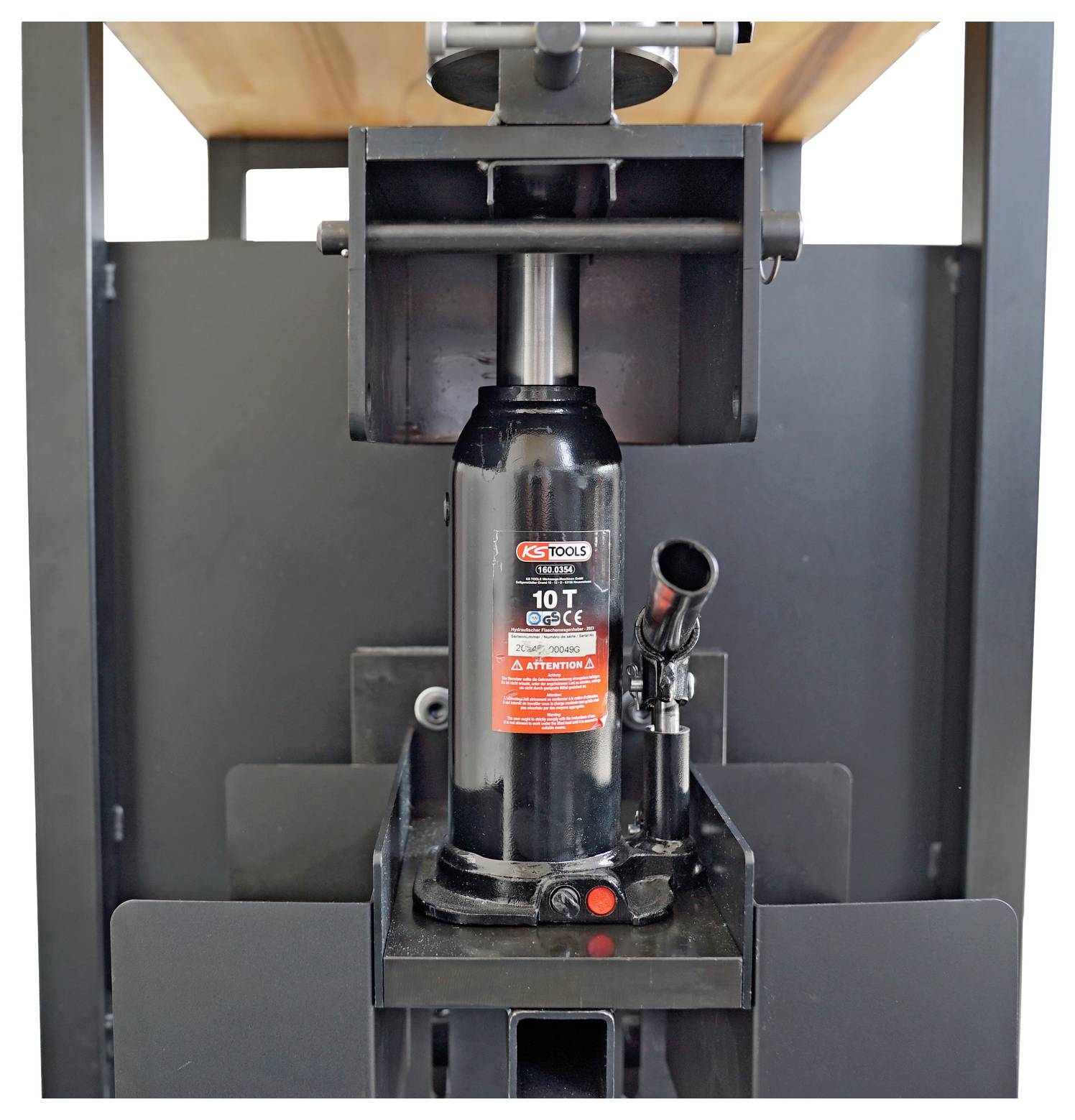

- Adjustable support by 10 t hydraulic cylinder

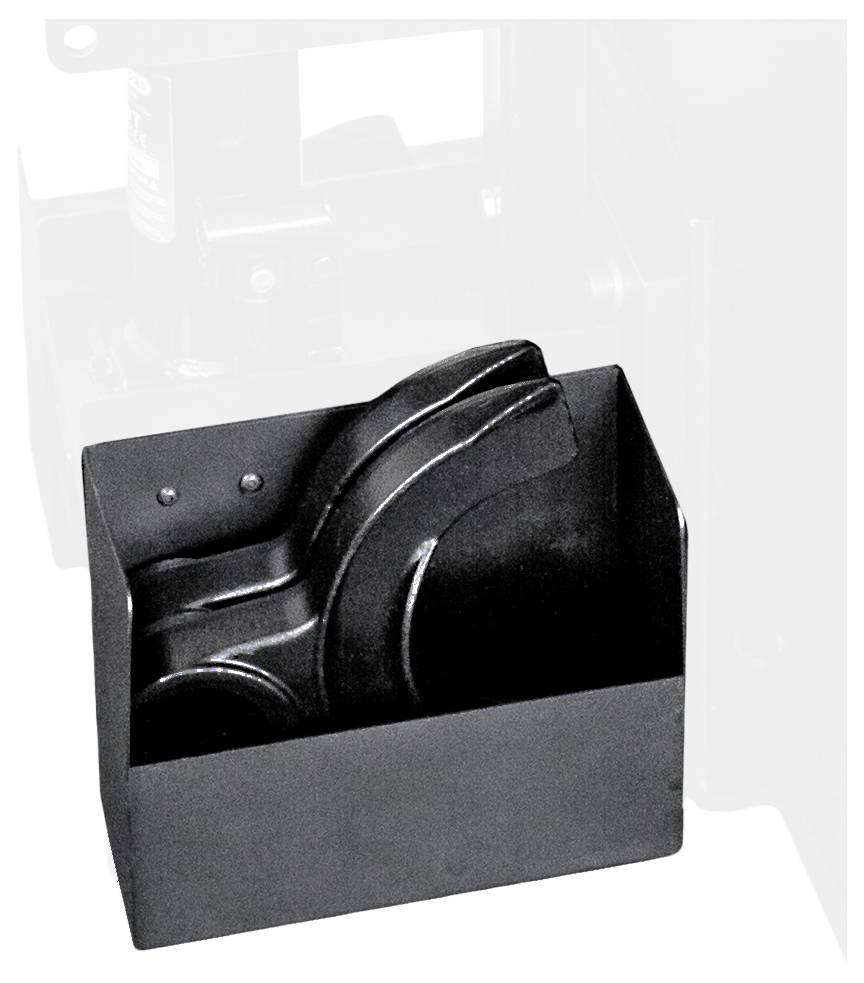

- Includes storage compartments
- Easy operation with one-man operation
- No thread damage to the piston rod
- New closed design
- Maintenance-free mechanism
- Ideal suitable for a secure mounting and dismantling of Mc Pherson spring struts
- Necessary when changing the shock absorber or screw spring
- Universal for 90% of all common vehicle springs in cars and vans
- Cost-effective and solid alternative to common spring tensioners
- Also suitable for conical and ball springs
- Shearing pin on drive nut protects against overload

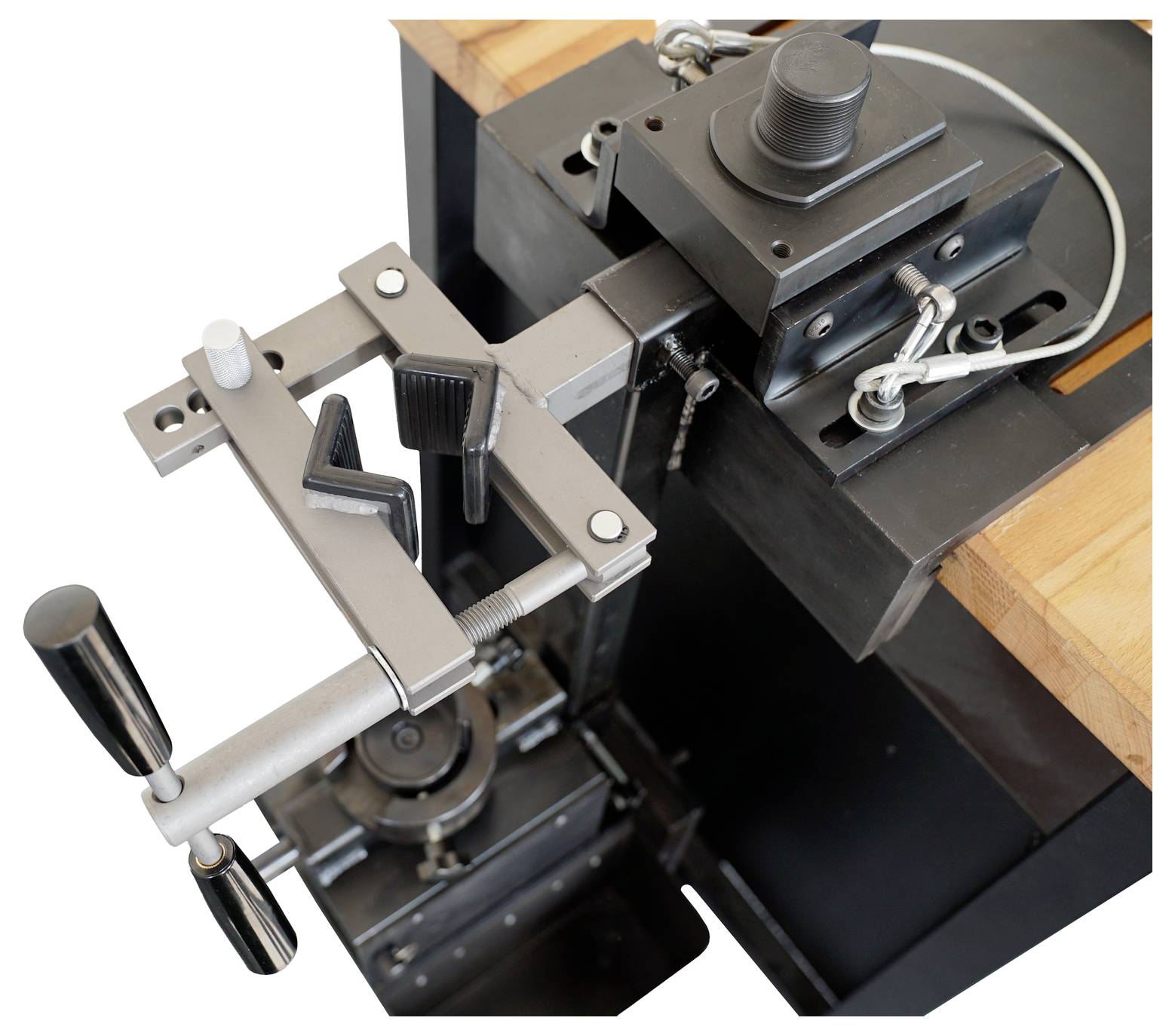

- Spring holders are provided with a safety latch that locks the spring during tensioning to ensure greater safety
- Extremely high load-carrying capacity - maximum load of 2,600 kg
- Special tool steel
- This text is machine translated.
Technical specifications
- Drive in mm: 27
- Application area in NM: Load max. 26000N
- Design: Robust
- Spring pressure max.: 2600
- Material1: Special tool steel
- max. Pressure force t: 2.6
- Span max. in mm: 345
- Product type
Spring tensioner
- Tension/pressure capacity
2.6 t
- Weight
78000 g
- Content
7 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3477854 N/A KS Tools 500.8660 KS Tools 500.8660
Description
Features
- Safety rope included
- With 2 forged standard spring-holder pairs
