1/3
N/A KS Tools 500.8810 KS Tools 500.8810
EAN:
Part number:
Item no:
Technical specifications
- Connection thread 1/4"
- Operating pressure max (bar): 10 bar
- Width in mm 500.0 mm
- Max. Pressure (kg): 2400 kg
- Weight 91000 g
- Height in mm: 1200.0 mm
- Compression stroke (mm) 450.0 mm
- Length mm 400.0 mm
- Air consumption in l/min: 250 l/min.
- Material1: Special tool steel
- Product type

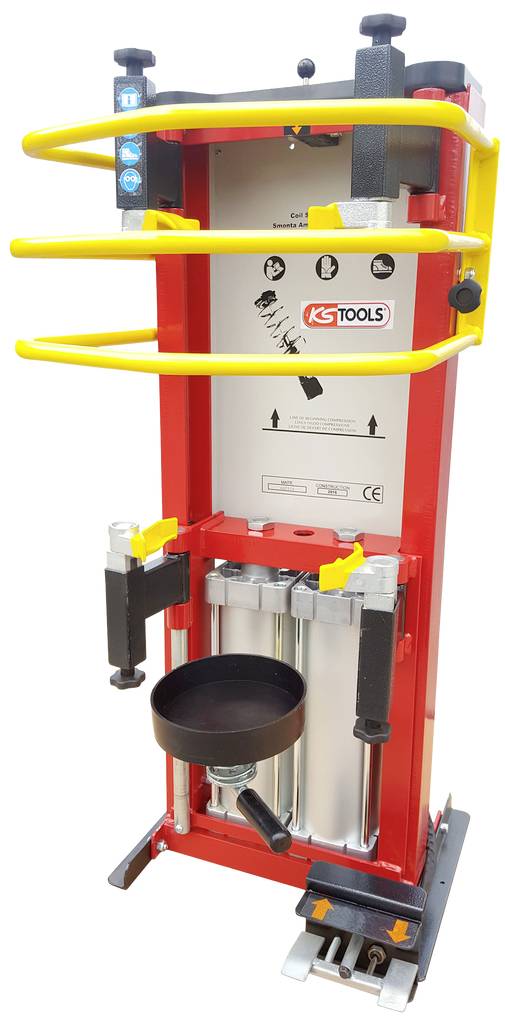

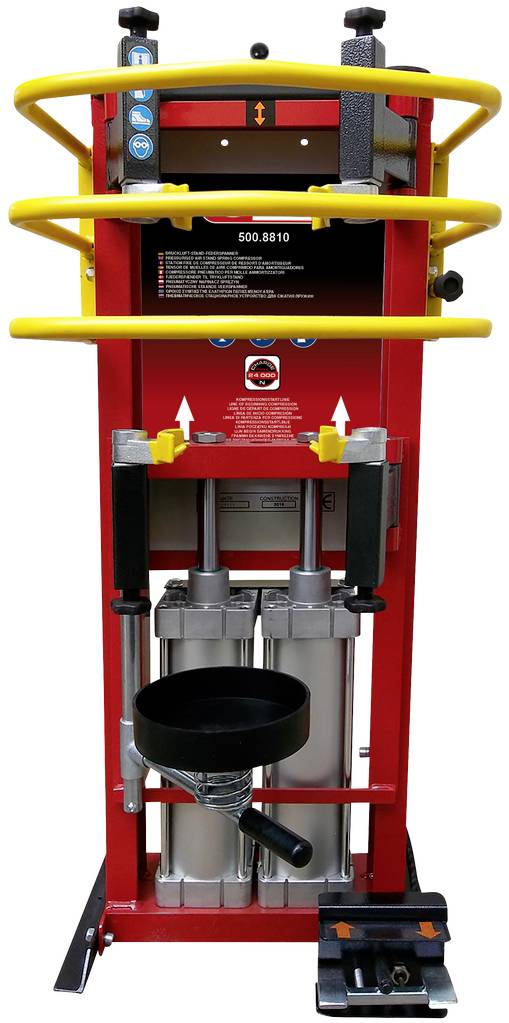

Pneumatic coil spring compressor
- Tension/pressure capacity
2400 kg
- Dim
(L x W x H) 400.0 x 500.0 x 1200.0 mm
- Weight
91000 g
- Content
1 pc(s)
- Width
500.0 mm
- Height
1200.0 mm
- Length
400.0 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3163211 N/A KS Tools 500.8810 KS Tools 500.8810
Information
Information 3163211 N/A KS Tools 500.8810 KS Tools 500.8810

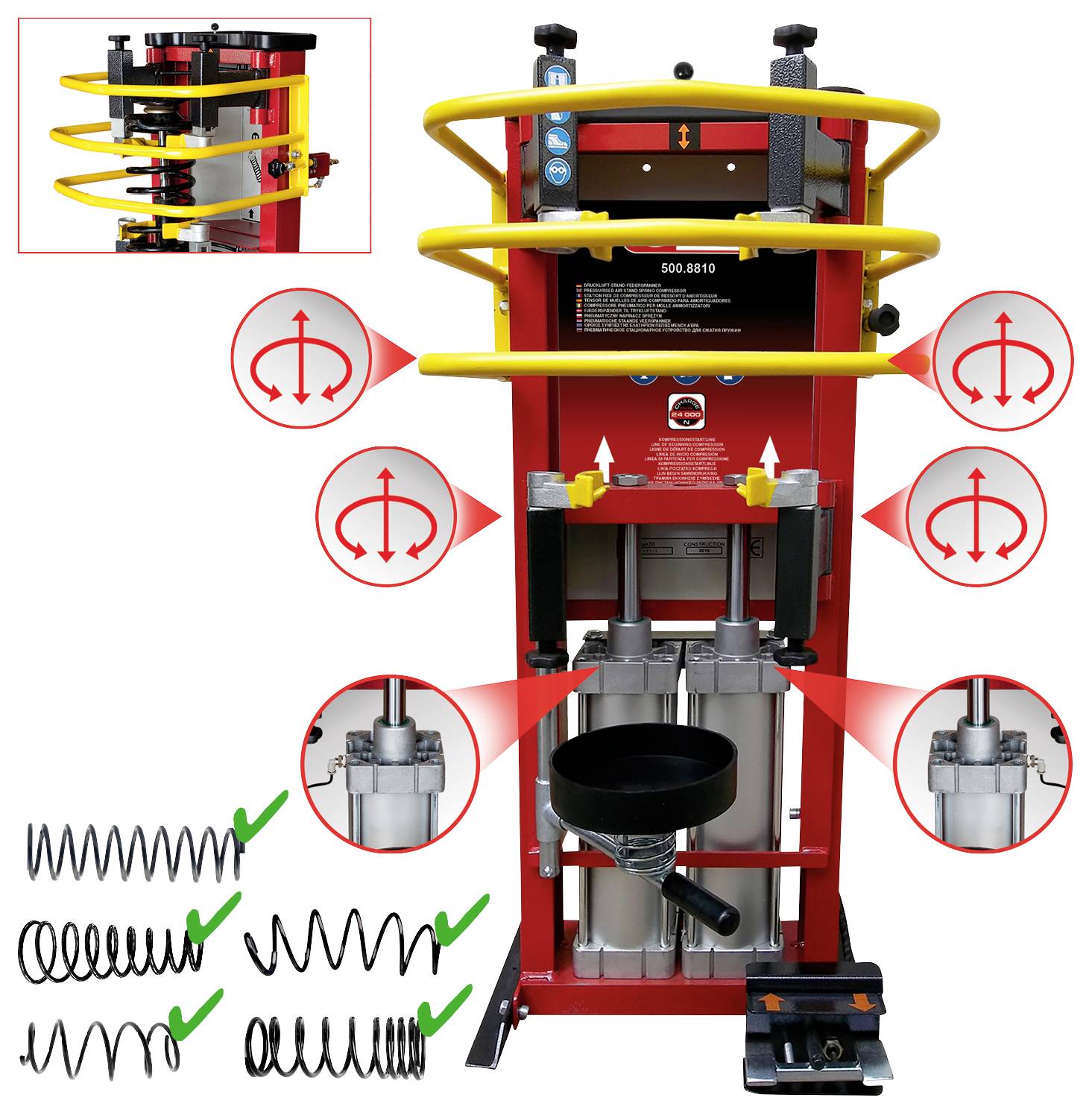

Description
Operating pressure 1200 kg at 5 bar, 2400 kg at 10 bar
Also suitable for strong springs by double cylinder with up to 2,400 kg (transporter, SUV, etc.)
Ideal for clamping the spring struts
Compressed air enables a highly comfortable working
Secure mounting and dismantling of shock absorbers with McPherson spring leg systems
Suitable for 95% of all vehicles on the market
Robust safety cage for avoiding accidents
Stable base for optimum stand
Simple and safe handling
Special tool steel
This text is machine translated.
Also suitable for strong springs by double cylinder with up to 2,400 kg (transporter, SUV, etc.)
Ideal for clamping the spring struts
Compressed air enables a highly comfortable working
Secure mounting and dismantling of shock absorbers with McPherson spring leg systems
Suitable for 95% of all vehicles on the market
Robust safety cage for avoiding accidents
Stable base for optimum stand
Simple and safe handling
Special tool steel
This text is machine translated.
