N/A KS Tools 500.8815 KS Tools 500.8815
EAN:
Part number:
Item no:
Technical specifications
- Connection thread 1/4"
- Operating pressure max (bar): 10 bar
- Width in mm 500.0 mm
- Max. Pressure (kg): 2400 kg
- Weight 98600 g
- Height in mm: 1200.0 mm
- Compression stroke (mm) 450.0 mm
- Length mm 400.0 mm
- Air consumption in l/min: 250 l/min.
- Material1: Special tool steel
- 2 -piece set.
- Product type
Pneumatic coil spring compressor
- Tension/pressure capacity
2400 kg
- Dim
(L x W x H) 400.0 x 500.0 x 1200.0 mm
- Weight
98600 g
- Content
1 pc(s)
- Width
500.0 mm
- Height
1200.0 mm
- Length
400.0 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3163212 N/A KS Tools 500.8815 KS Tools 500.8815
Description

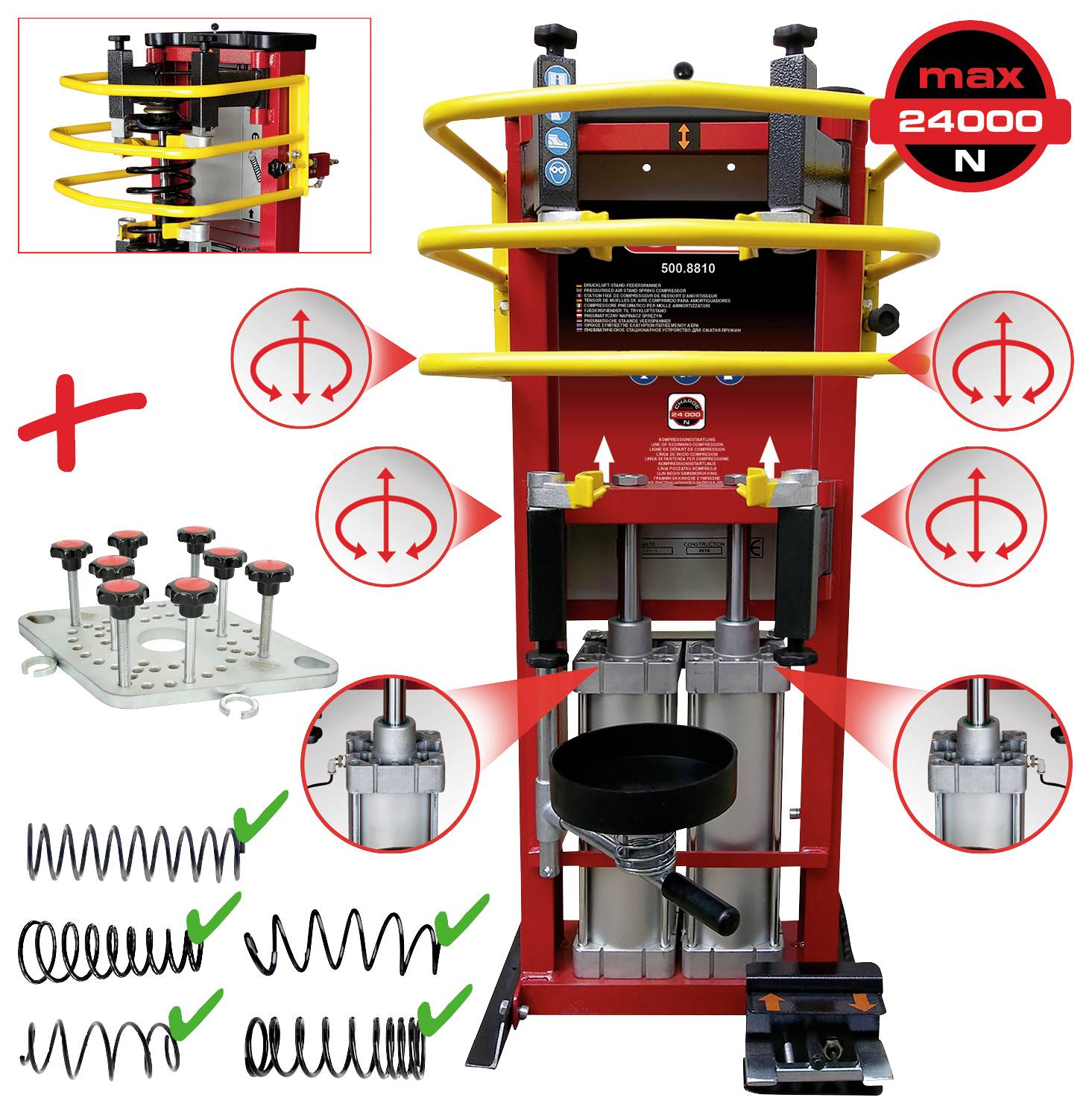

Operating pressure 1200 kg at 5 bar, 2400 kg at 10 bar
Also suitable for strong springs by double cylinder with up to 2,400 kg (transporter, SUV, etc.)
Ideal for clamping the spring struts
Compressed air enables a highly comfortable working
Secure mounting and dismantling of shock absorbers with McPherson spring leg systems
Suitable for 95% of all vehicles on the market
Robust safety cage for avoiding accidents
Stable base for optimum stand
Simple and safe handling
Special tool steel
This text is machine translated.
Also suitable for strong springs by double cylinder with up to 2,400 kg (transporter, SUV, etc.)
Ideal for clamping the spring struts
Compressed air enables a highly comfortable working
Secure mounting and dismantling of shock absorbers with McPherson spring leg systems
Suitable for 95% of all vehicles on the market
Robust safety cage for avoiding accidents
Stable base for optimum stand
Simple and safe handling
Special tool steel
This text is machine translated.
Scope of delivery

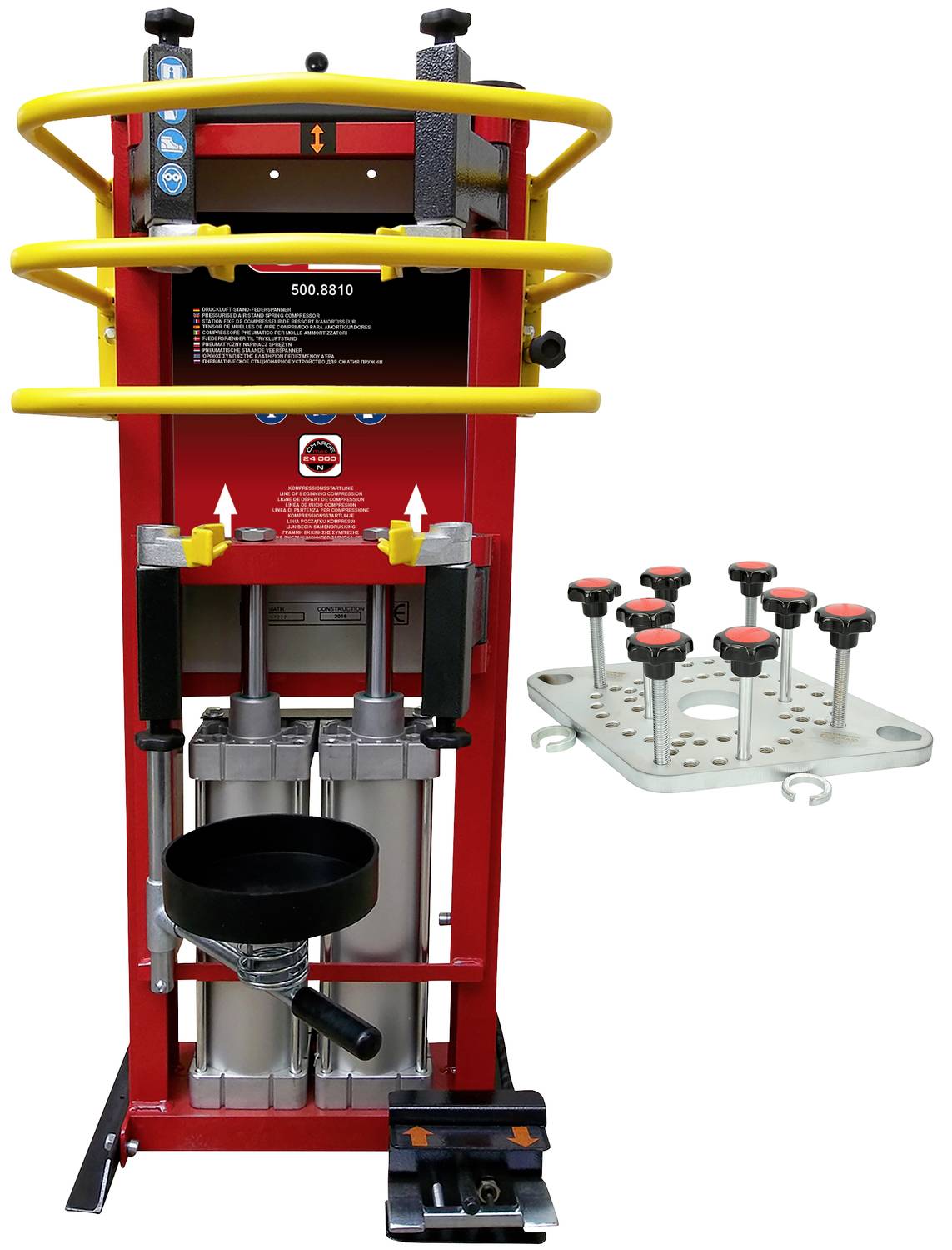

- 500.8810 - compressed air stand spring clamp with double cylinder
- 500.8801 - Adapter plate for compressed air stand-spring clamp
