Highlights & Details

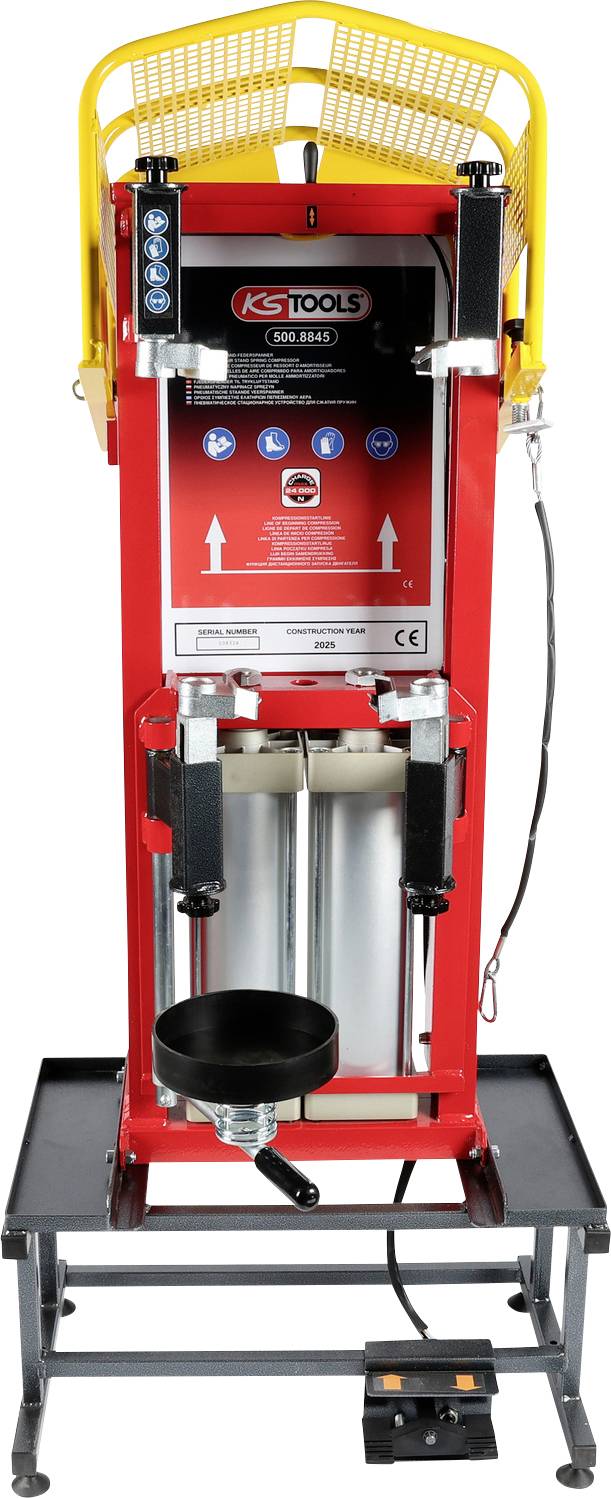

N/A KS Tools 500.8845
- Operating pressure 1200 kg at 5 bar, 2400 kg at 10 bar
- Also suitable for strong springs by double cylinder with up to 2,400 kg (transporter, SUV, etc.)
- Ideal for clamping the spring struts
- Compressed air enables a highly comfortable working
- Secure mounting and dismantling of shock absorbers with McPherson spring leg systems
- Suitable for 95% of all vehicles on the market
- Stable base for optimum stand
- Simple and safe handling
- Improved, robust safety cage for avoiding accidents
- Special tool steel
- Stable stand for adjusting the working height
- Easy mounting with straps and screws
- 4-edge pipe frame with firm stand
- This text is machine translated.
Technical specifications
- Connection thread 1/4"
- Operating pressure max (bar): 10
- Max. Compressive strength (kg): 2400
- Compression stroke (mm): 450.0
- Air consumption in l/min: 250
- Product type
Spring tensioner
- Tension/pressure capacity
2400 kg
- Weight
105000 g
- Content
1 pc(s)
