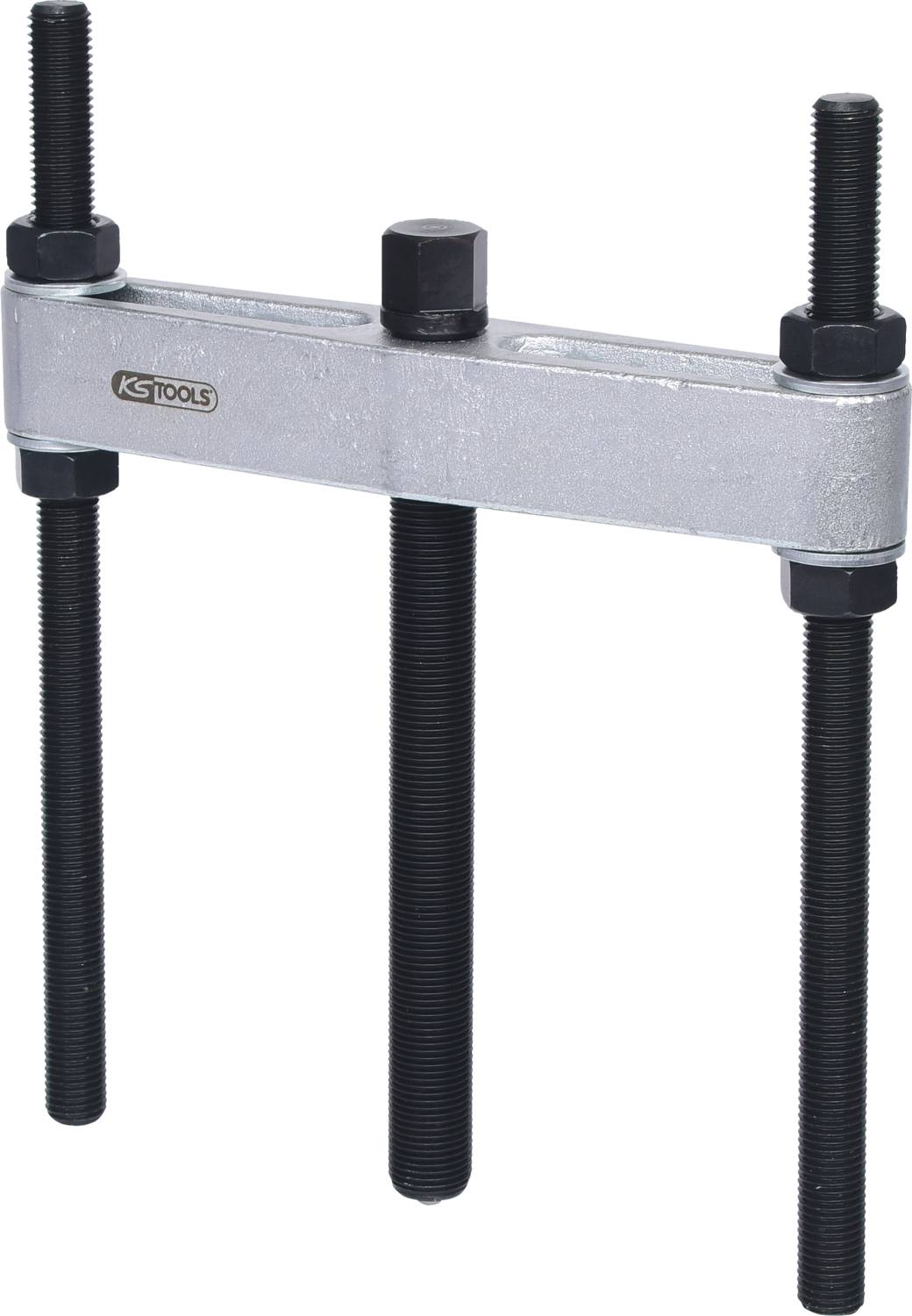

KS Tools 605.0113 Puller Clamping range (details) 55 - 205 mm
EAN:
Part number:
Item no:
Number
Total (€ 121.84 / piece)
€ 121.84
plus VAT.
Only 7 Piece(s) available
Technical specifications
- Hexagon drive in mm: 22 mm
- Torque max Nm:70 Nm
- Weight 2700 g
- Material1: Special tool steel
- max. Compressive strength KN: 40.0
- max. Compression force Nm: 70
- max. Pressure force t: 4
- Clamping depth B in mm 210 mm
- Span A in mm 55-205 mm
- Span up to [mm]: 205 mm
- Span [mm]: 55 mm
- Spindle size mm: G1/2"x14g x 210
- Variant items : 605.0111
- Draw bolt thread G M16
- Clamping range
55 - 205 mm
- Tension/pressure capacity
4 t
- Weight
2700 g
- Content
1 pc(s)
- Product type
Puller
- Span width (max.)
205 mm
- Span depth (max.)
210 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695123 KS Tools 605.0113 Puller Clamping range (details) 55 - 205 mm
Description
For use with cutting knivesThe towing bolts are screwed into the threads of the cutting knivesExtremely robust spindle with inductively hardened threadRetrofitable hydraulic pressure spindleSpecial tool steel
