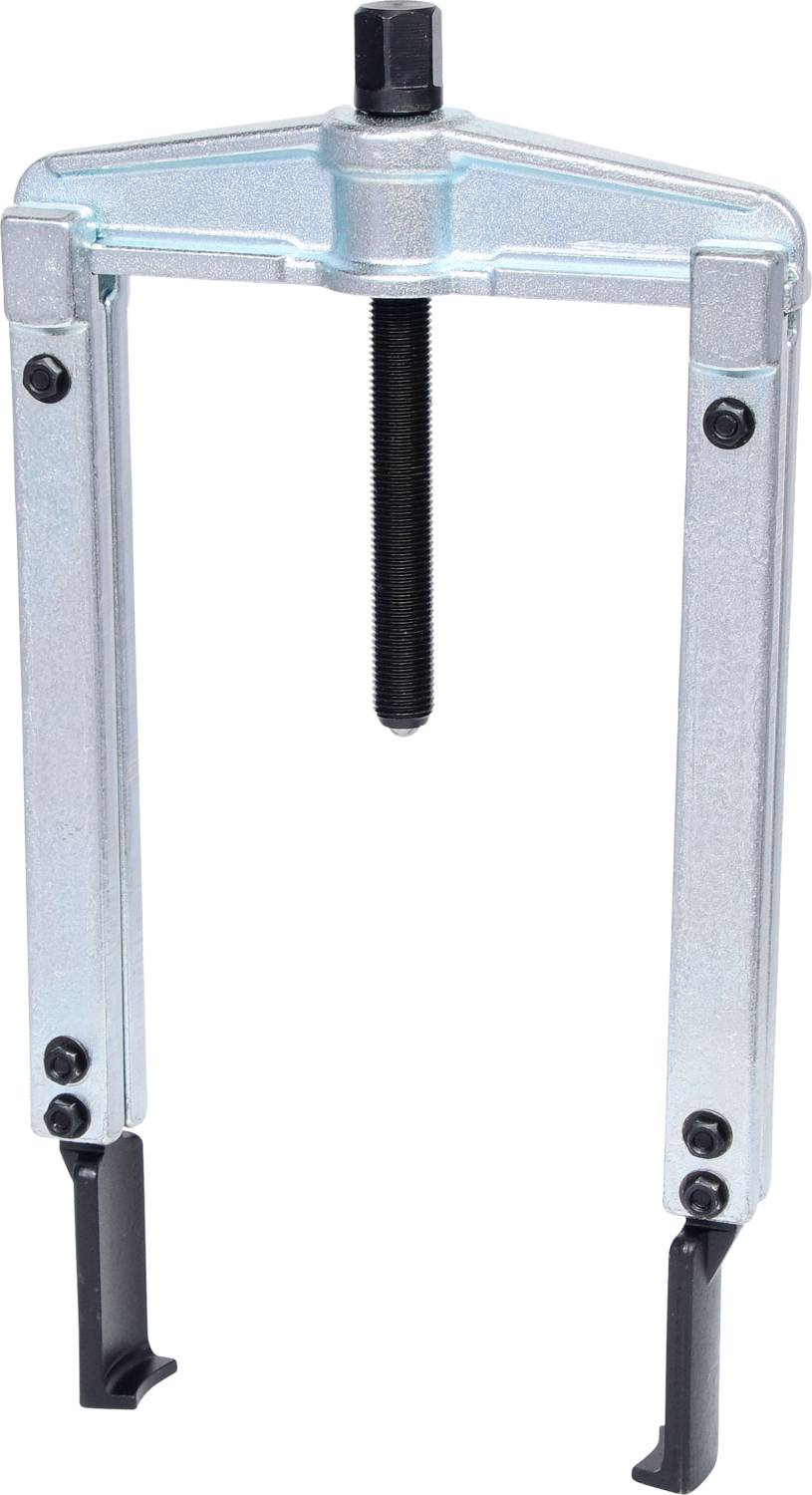

KS Tools 620.0006 Puller Clamping range (details) 25 - 130 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
Only 2 Piece(s) available
Technical specifications

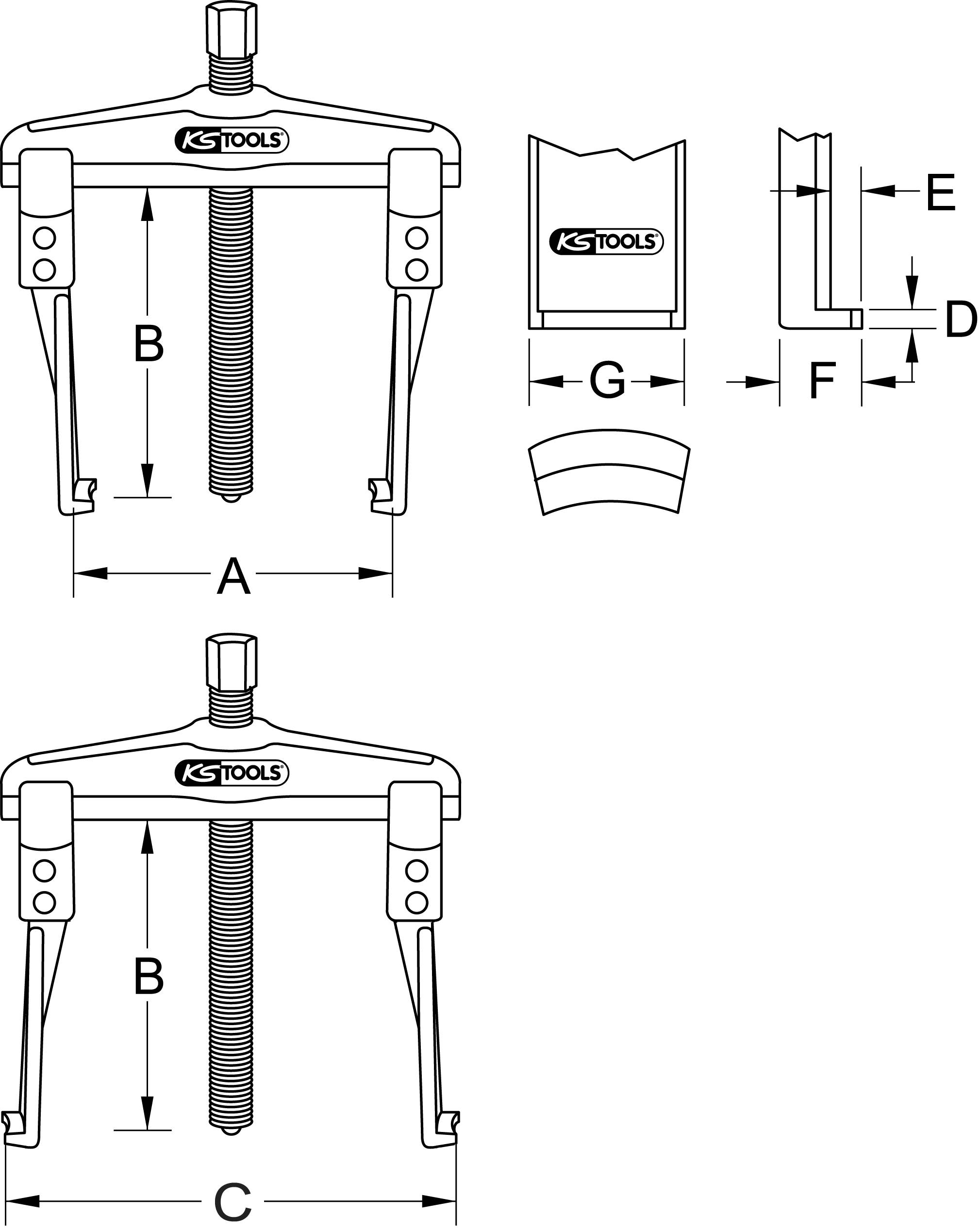

- Pull hook width G: 28 mm
- Pull hook total depth F: 14 mm
- Pull hook height D 3.6 mm
- Pull hook tip depth E: 8 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 17 mm
- Torque max Nm:80 Nm
- Shape: Slim design
- Function attribute 1: Reversible, interior/exterior removal
- Weight 1900 g
- Material1: Special tool steel
- max. Compressive strength KN: 45.0
- max. Compression force Nm: 80
- max. Pressure force t: 4.5
- Quick adjustment: No. nein
- Clamping depth B in mm 250 mm
- Span A in mm 25-130 mm
- Wingspan exterior puller C: 80-180
- Span up to [mm]: 130 mm
- Span [mm]: 25 mm
- Spindle size mm: M14x1.5 x 130
- Variant items : 620.0001
- Clamping range
25 - 130 mm
- Tension/pressure capacity
4.5 t
- Weight
1900 g
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span width (max.)
130 mm
- Span depth (max.)
250 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695249 KS Tools 620.0006 Puller Clamping range (details) 25 - 130 mm No. of hooks 2
Description
Ideally suited for narrow spacesLong styleEven load distribution and centered tighteningIt can be used as inside or outside puller by changing the hookVarious hook variants and hydraulic spindle can be retrofittedExtremely robust spindle with inductively hardened threadSpecial tool steel
