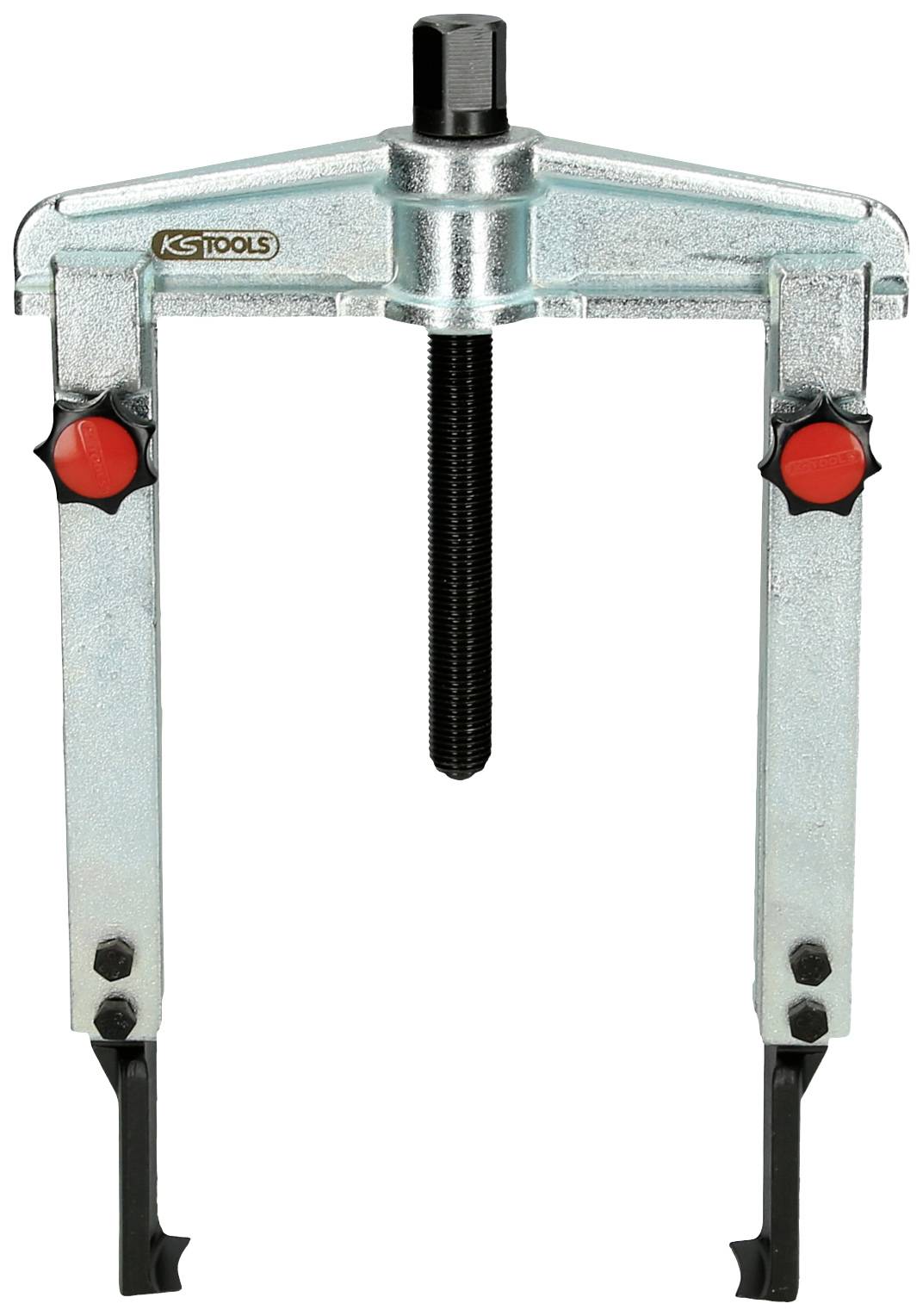

KS Tools 620.0035 Puller Clamping range (details) 70 - 130 mm No. of hooks 2
EAN:
Part number:
Item no:
Technical specifications

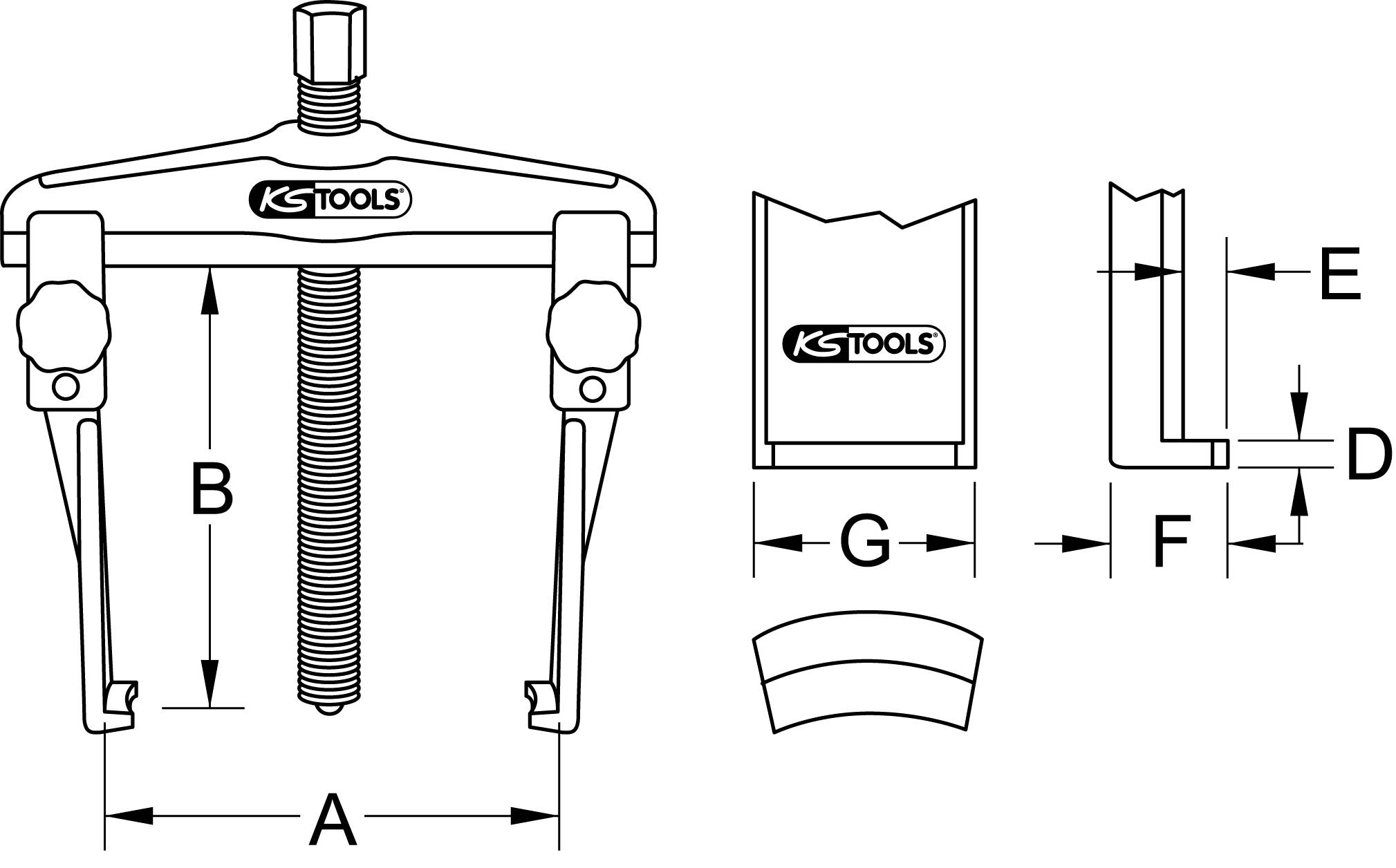

- Pull hook width G: 28 mm
- Pull hook total depth F: 14 mm
- Pull hook height D 2 mm
- Pull hook tip depth E: 8 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 17 mm
- Weight 1500 g
- Material1: Special tool steel
- max. Pressure force t: 3.5
- Quick adjustment: Yes
- Clamping depth B in mm 200 mm
- Span A in mm 20-90 mm
- Wingspan exterior puller C: 70-130
- Span up to [mm]: 90 mm
- Span [mm]: 20 mm
- Spindle size mm: M14x1.5 x 130
- Variant items : 620.0034
- Clamping range
70 - 130 mm
- Tension/pressure capacity
3.5 t
- Weight
1500 g
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span width (max.)
130 mm
- Span depth (max.)
200 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695268 KS Tools 620.0035 Puller Clamping range (details) 70 - 130 mm No. of hooks 2
Description
With quick clamping functionExtremely pointed hook baseIdeally suited for narrow spacesLong styleEven load distribution and centered tighteningIt can be used as inside or outside puller by changing the hookVarious hook variants and hydraulic spindle can be retrofittedExtremely robust spindle with inductively hardened threadSpecial tool steel
