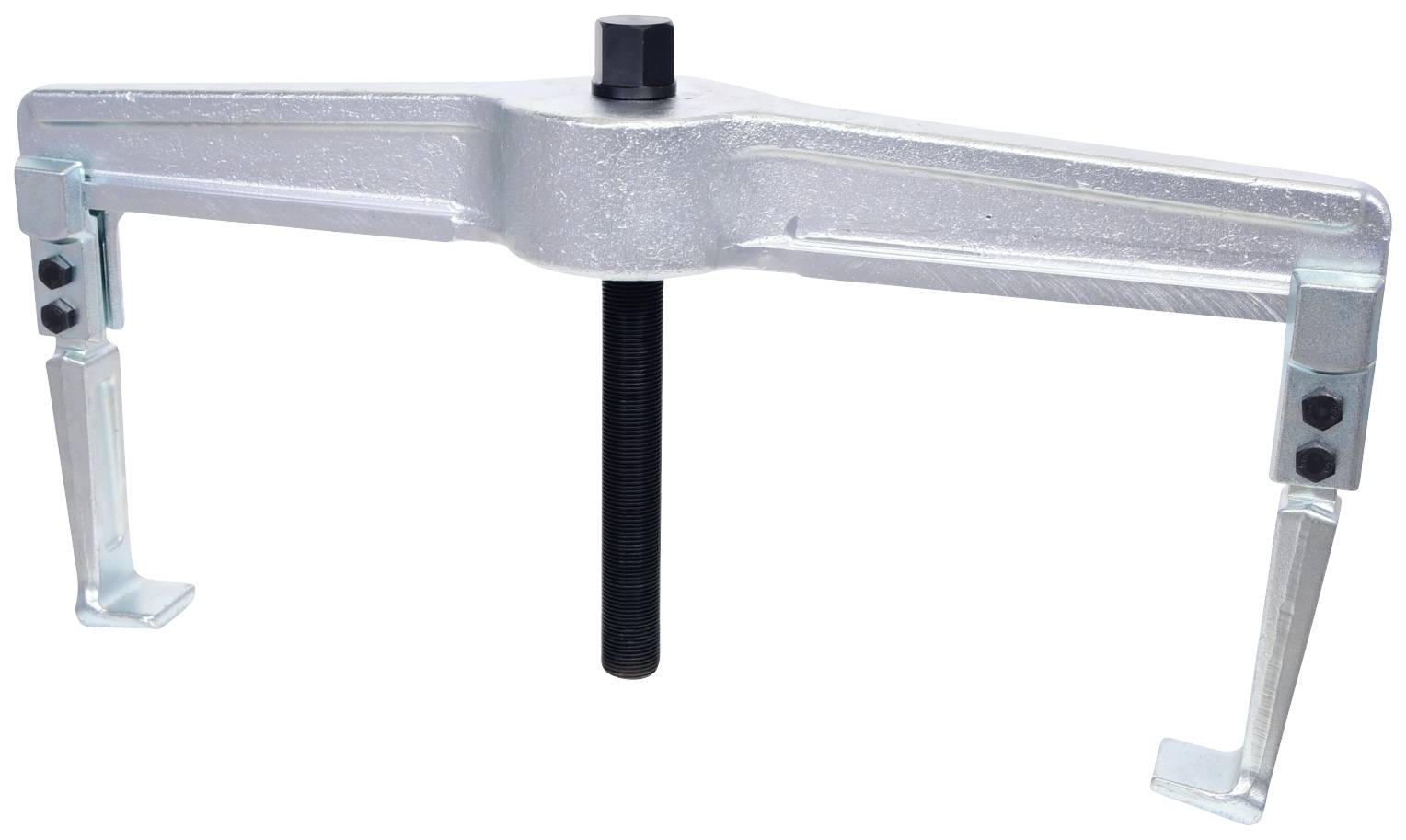

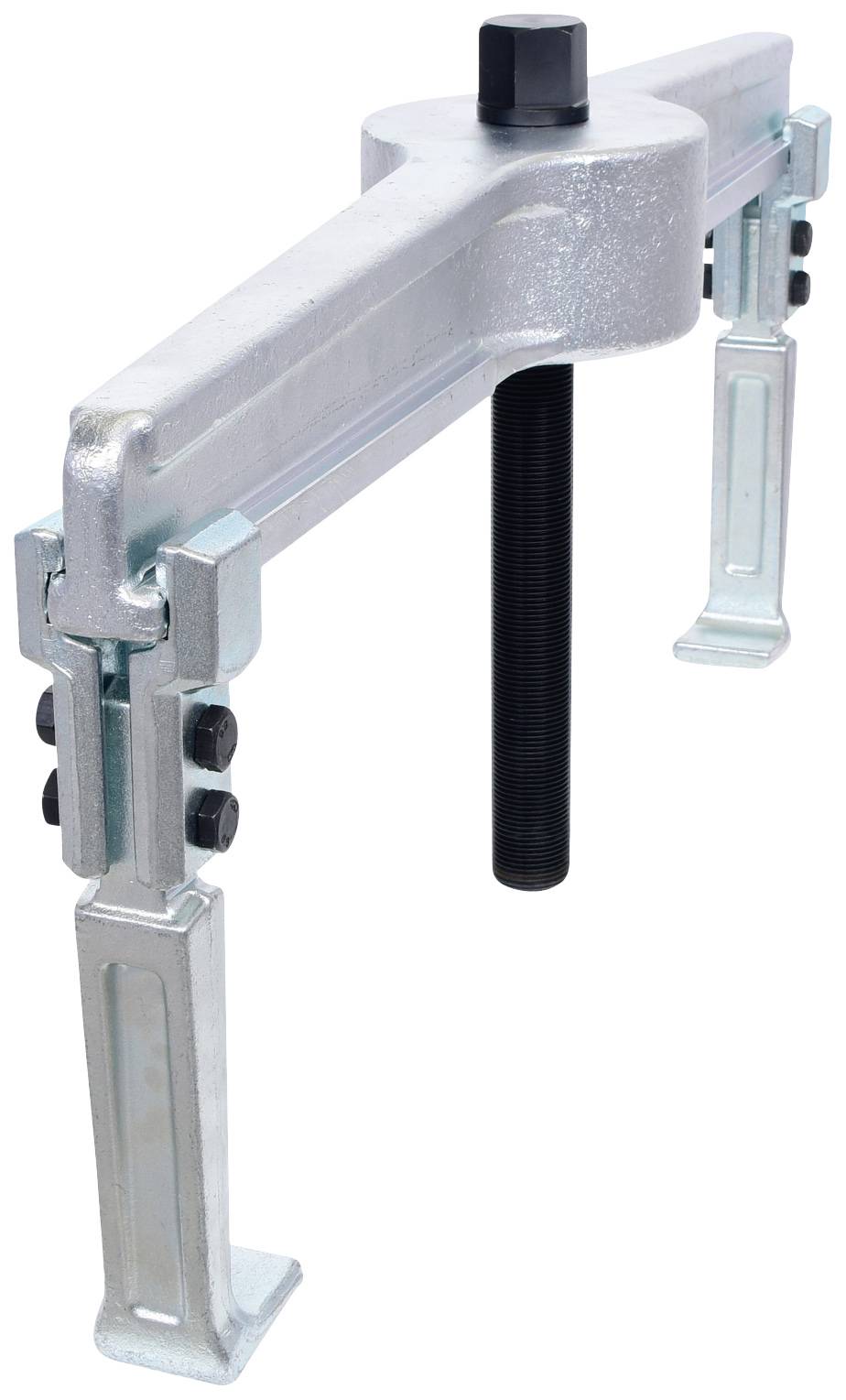

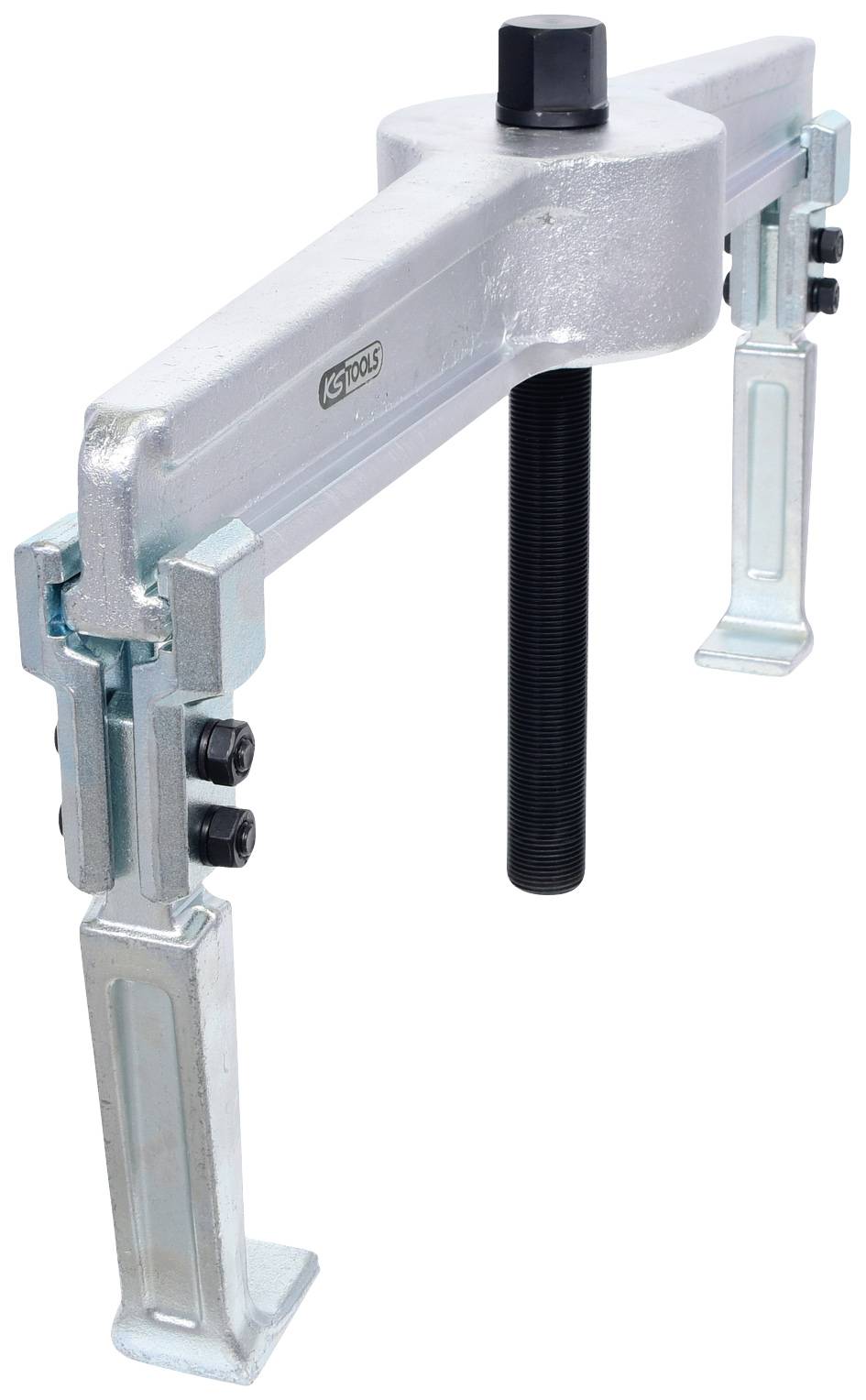

KS Tools 620.0108 Puller Clamping range (details) 170 - 640 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 878.15 / piece)
€ 878.15
plus VAT.
Only 2 Piece(s) available
Technical specifications

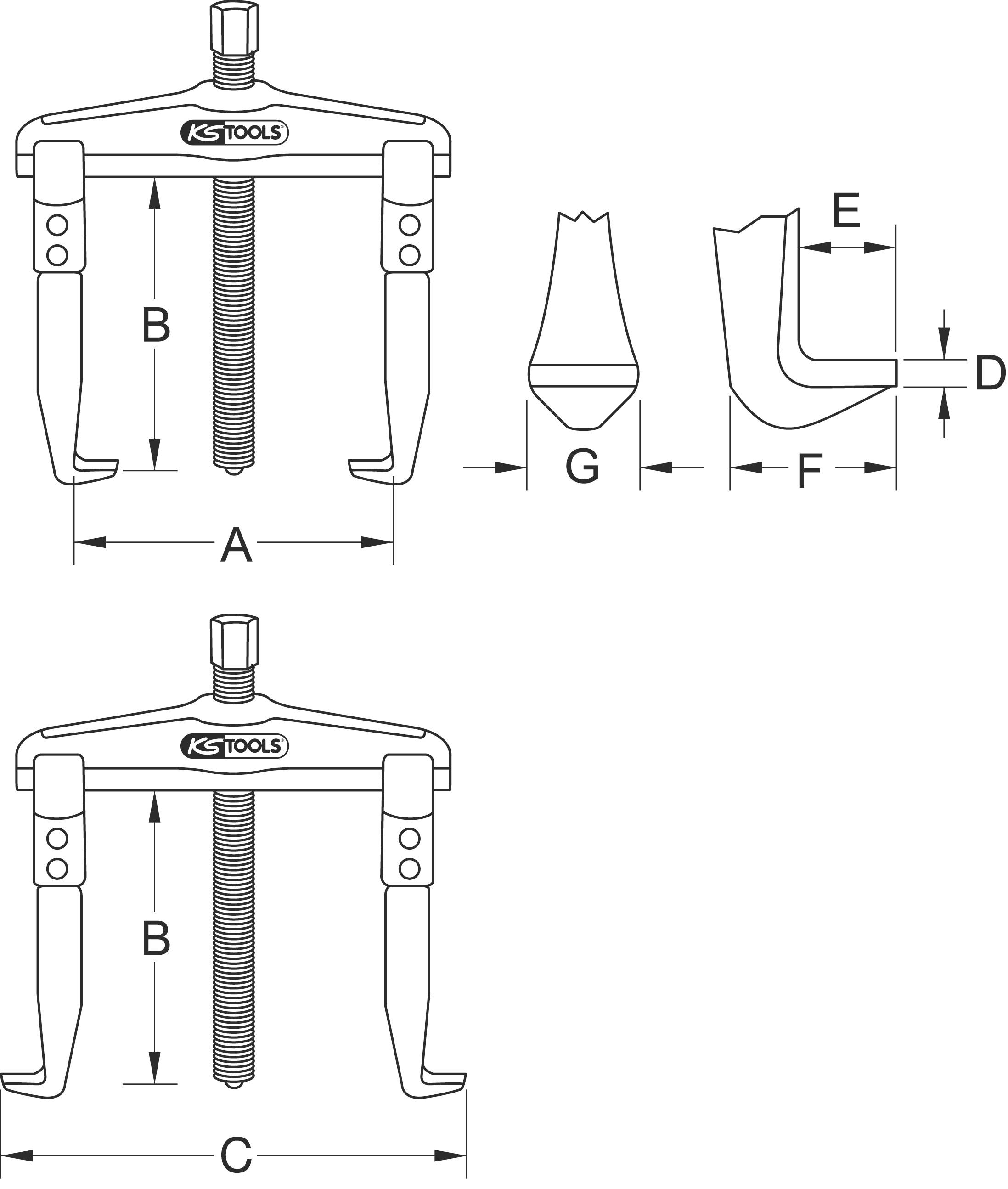

- Pull hook width G: 50 mm
- Pull hook total depth F: 55 mm
- Pull hook height D 10 mm
- Pull hook tip depth E: 33 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 36 mm
- Torque max Nm:400 Nm
- Function attribute 1: Reversible, interior/exterior removal
- Weight 23700 g
- Material1: Special tool steel
- max. Compressive strength KN: 180.0
- max. Compression force Nm: 400
- max. Pressure force t: 18
- Quick adjustment: No. nein
- Clamping depth B in mm 225 mm
- Span A in mm 170-640 mm
- Wingspan exterior puller C: 250-720
- Span up to [mm]: 640 mm
- Span [mm]: 170 mm
- Spindle size mm: G1"x11g x 310
- Variant items : 620.0101
- Clamping range
170 - 640 mm
- Tension/pressure capacity
18 t
- Weight
23700 g
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span width (max.)
640 mm
- Span depth (max.)
225 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695315 KS Tools 620.0108 Puller Clamping range (details) 170 - 640 mm No. of hooks 2
Description
It can be used as inside or outside puller by changing the hookHydraulic spindle can be retrofitted for thread G1/2" / G3/4" / G1"Extremely robust spindle with inductively hardened threadSpecial tool steel
