KS Tools 620.0701 Hydraulic puller Clamping range (details) 50 - 160 mm No. of hooks 2
EAN:
Part number:
Item no:
Total (€ 310.08 / piece)
€ 310.08
plus VAT.
14-day return policy included
Technical specifications

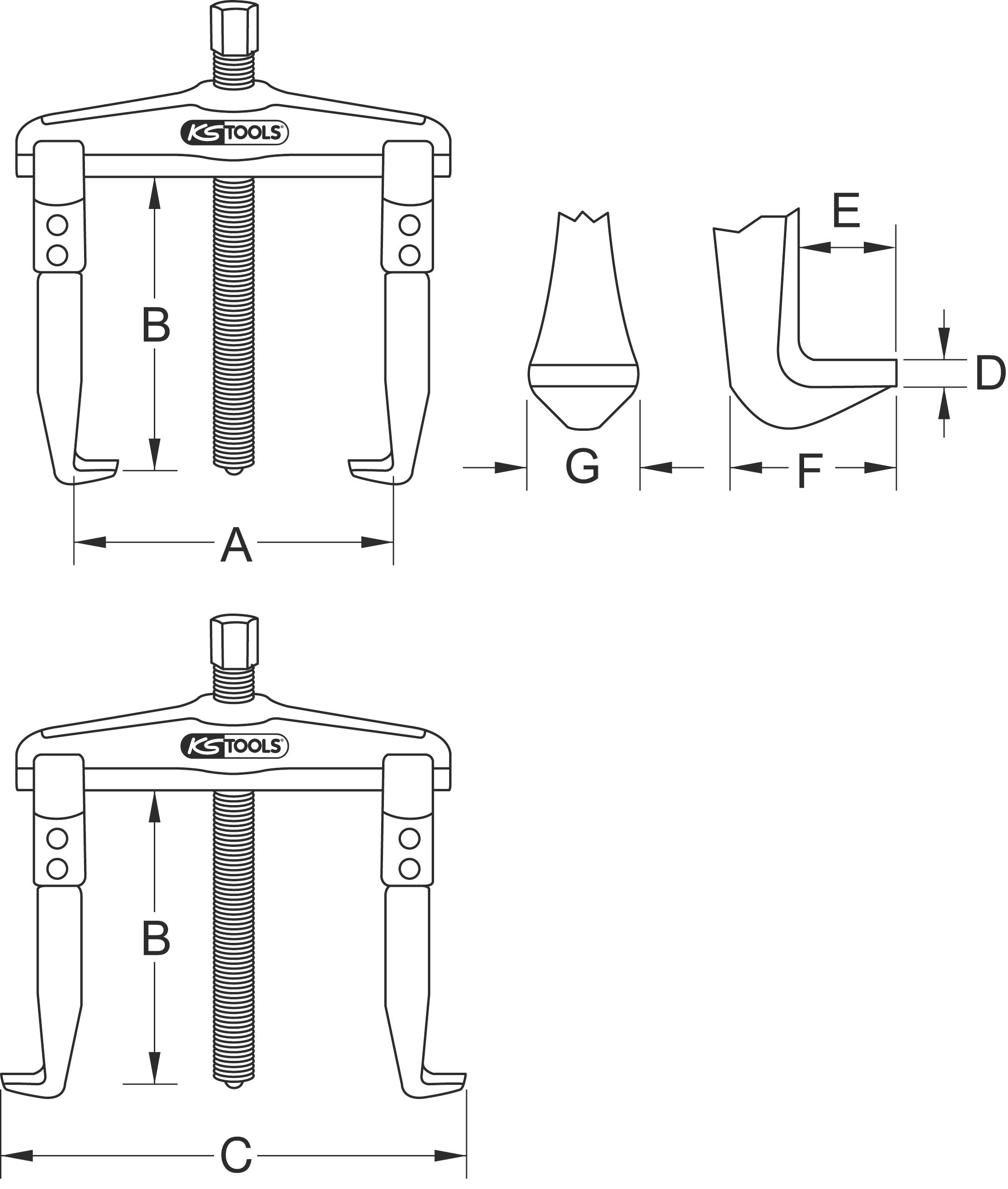

- Pull hook width G: 25 mm
- Pull hook total depth F: 35 mm
- Pull hook height D 4 mm
- Pull hook tip depth E: 16 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 13 mm
- Torque max Nm:60 Nm
- Function attribute 1: Reversible, interior/exterior removal
- Weight 3900 g
- Hydraulic spindle no.: 615.0002
- Material1: Special tool steel
- max. Compressive strength KN: 120
- max. Compression force Nm: 60
- max. Pressure force t: 12
- Quick adjustment: No. nein
- Clamping depth B in mm 225 mm
- Span A in mm 50-160 mm
- Wingspan exterior puller C: 105-220
- Span up to [mm]: 160 mm
- Span [mm]: 50 mm
- Variant items : 620.0701
- Clamping range
50 - 160 mm
- Tension/pressure capacity
12 t
- Weight
3900 g
- Content
1 pc(s)
- Hooks
2
- Product type
Hydraulic puller
- Span width (max.)
160 mm
- Span depth (max.)
225 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695337 KS Tools 620.0701 Hydraulic puller Clamping range (details) 50 - 160 mm No. of hooks 2
Description
It can be used as inside or outside puller by changing the hookHydraulic spindle can be retrofitted for G1/2" threadIncluding hydraulic pressure spindleLow force requiredSpecial tool steel
