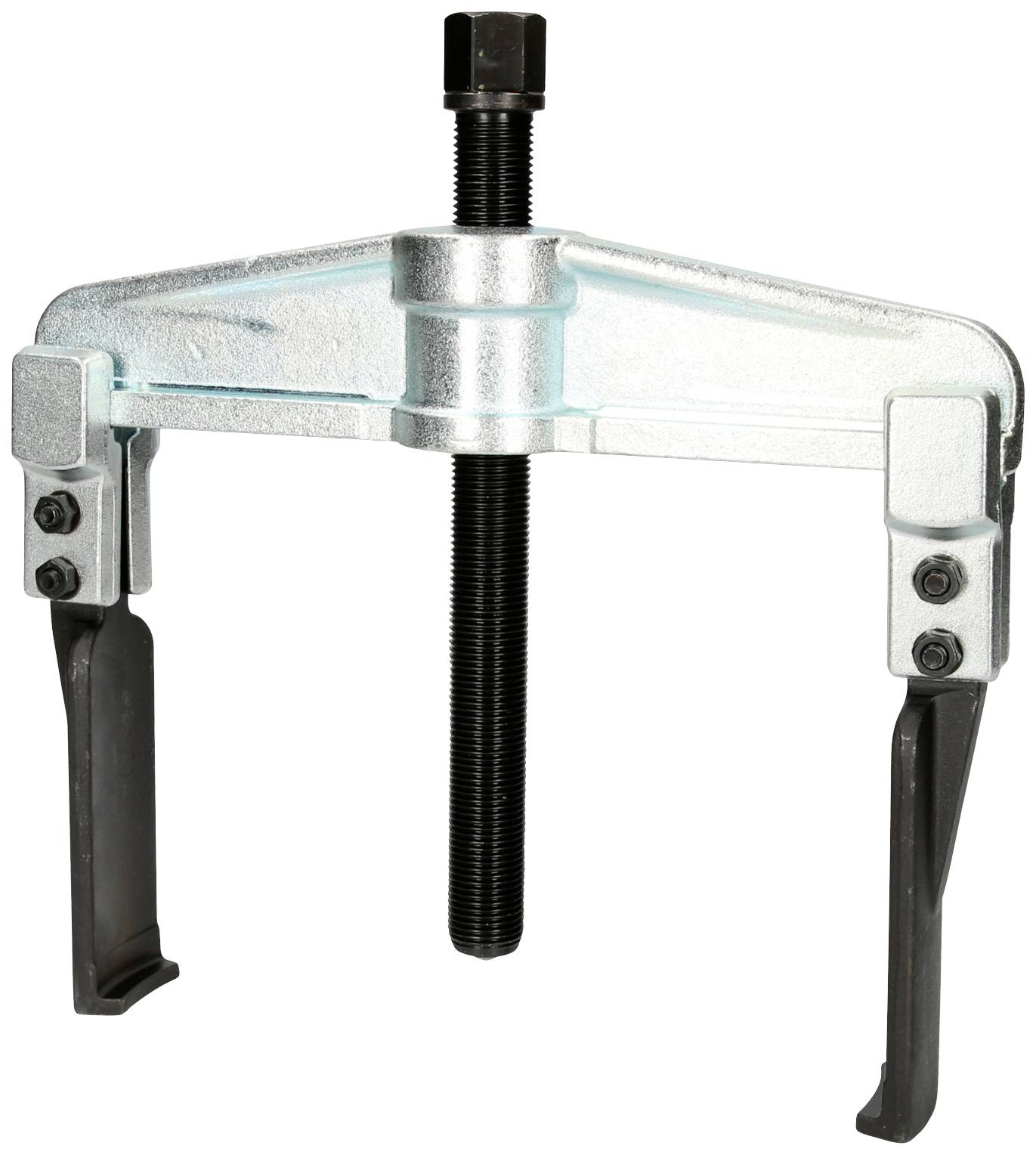

KS Tools 620.0904 Puller Clamping range (details) 60 - 200 mm No. of hooks 2
EAN:
Part number:
Item no:
Technical specifications

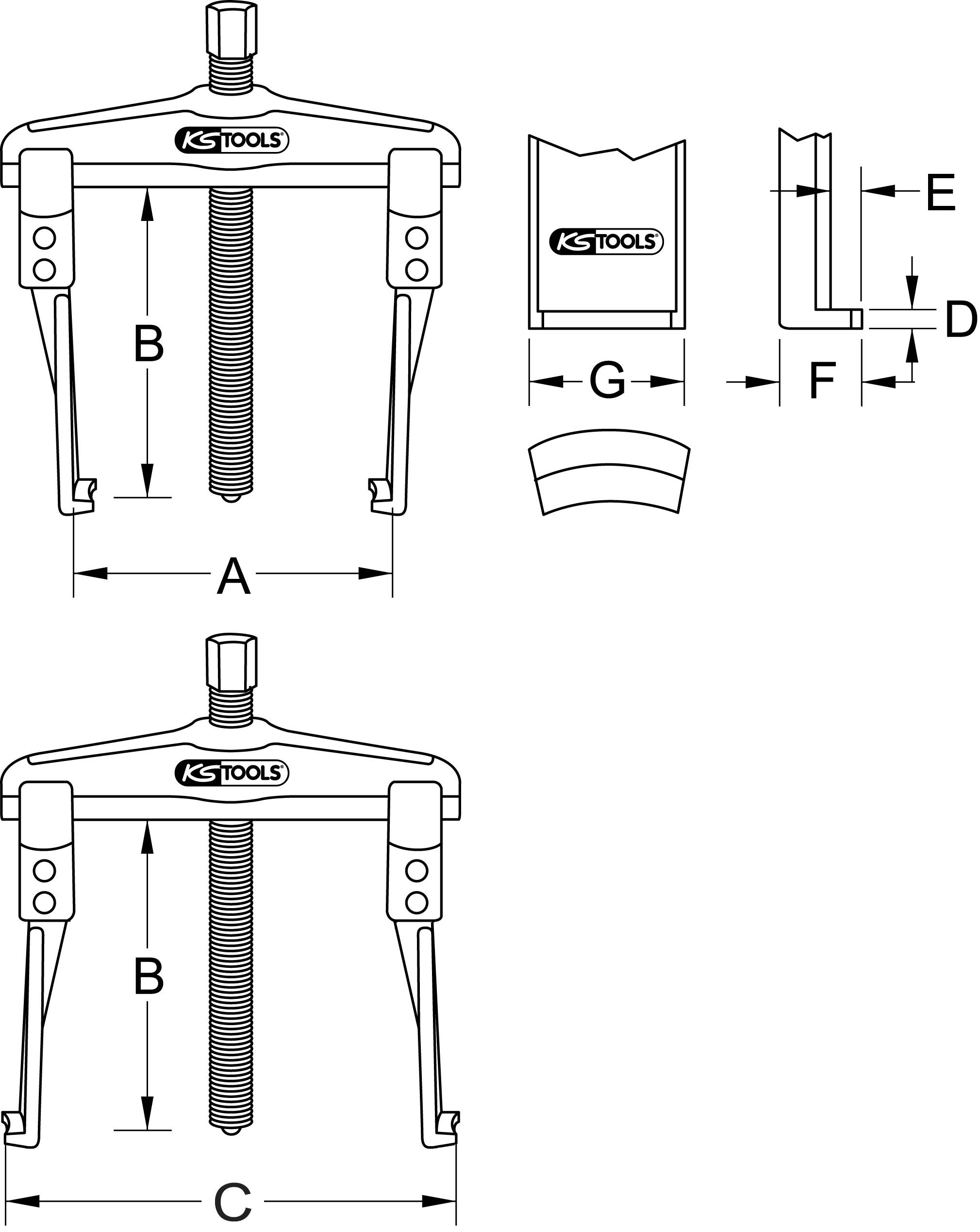

- Pull hook width G: 40 mm
- Pull hook total depth F: 17 mm
- Pull hook height D 5 mm
- Pull hook tip depth E: 8 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 22 mm
- Torque max Nm:150 Nm
- Shape: Slim design
- Function attribute 1: Reversible, interior/exterior removal
- Weight 3300 g
- Material1: Special tool steel
- max. Compressive strength KN: 65.0
- max. Compression force Nm: 150
- max. Pressure force t: 6.5
- Quick adjustment: No. nein
- Clamping depth B in mm 150 mm
- Span A in mm 60-200 mm
- Wingspan exterior puller C: 120-270
- Span up to [mm]: 200 mm
- Span [mm]: 60 mm
- Spindle size mm G1/2x14g x 210
- Variant items : 620.0901
- Clamping range
60 - 200 mm
- Tension/pressure capacity
6.5 t
- Weight
3300 g
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span width (max.)
200 mm
- Span depth (max.)
150 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695351 KS Tools 620.0904 Puller Clamping range (details) 60 - 200 mm No. of hooks 2
Description

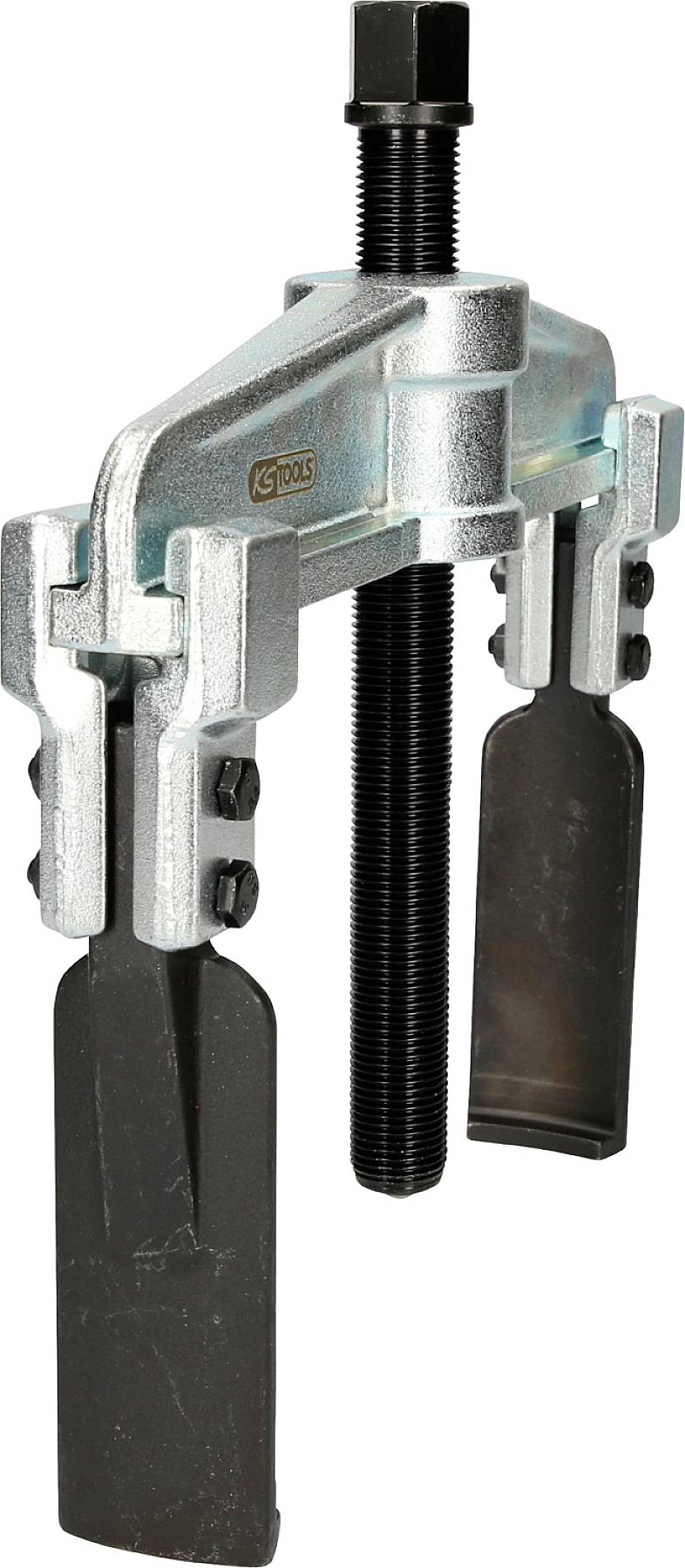

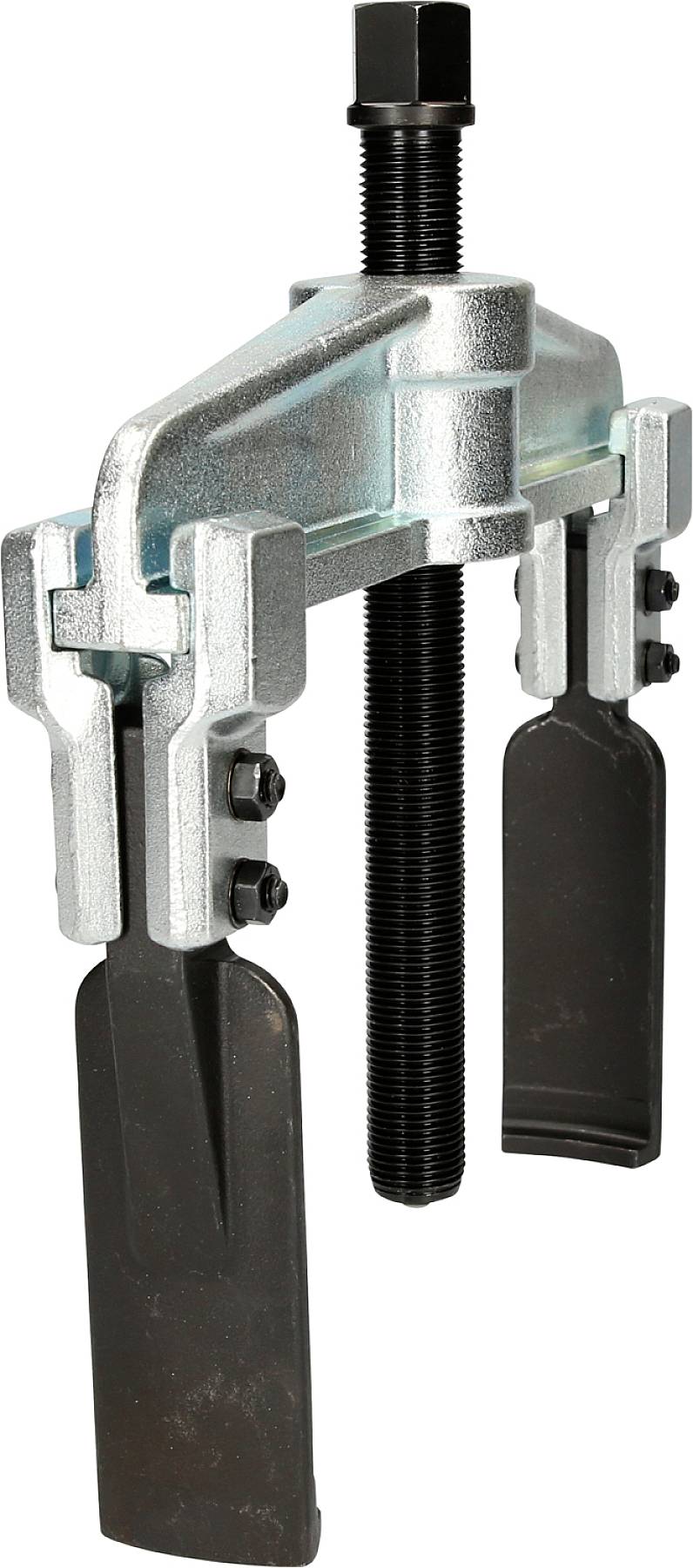

Ideally suited for narrow spacesEven load distribution and centered tighteningIt can be used as inside or outside puller by changing the hookVarious hook variants and hydraulic spindle can be retrofittedExtremely robust spindle with inductively hardened threadSpecial tool steel
