KS Tools 620.1101 Puller Clamping range (details) 70 - 130 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 88.23 / piece)
€ 88.23
plus VAT.
Only 3 Piece(s) available
Technical specifications

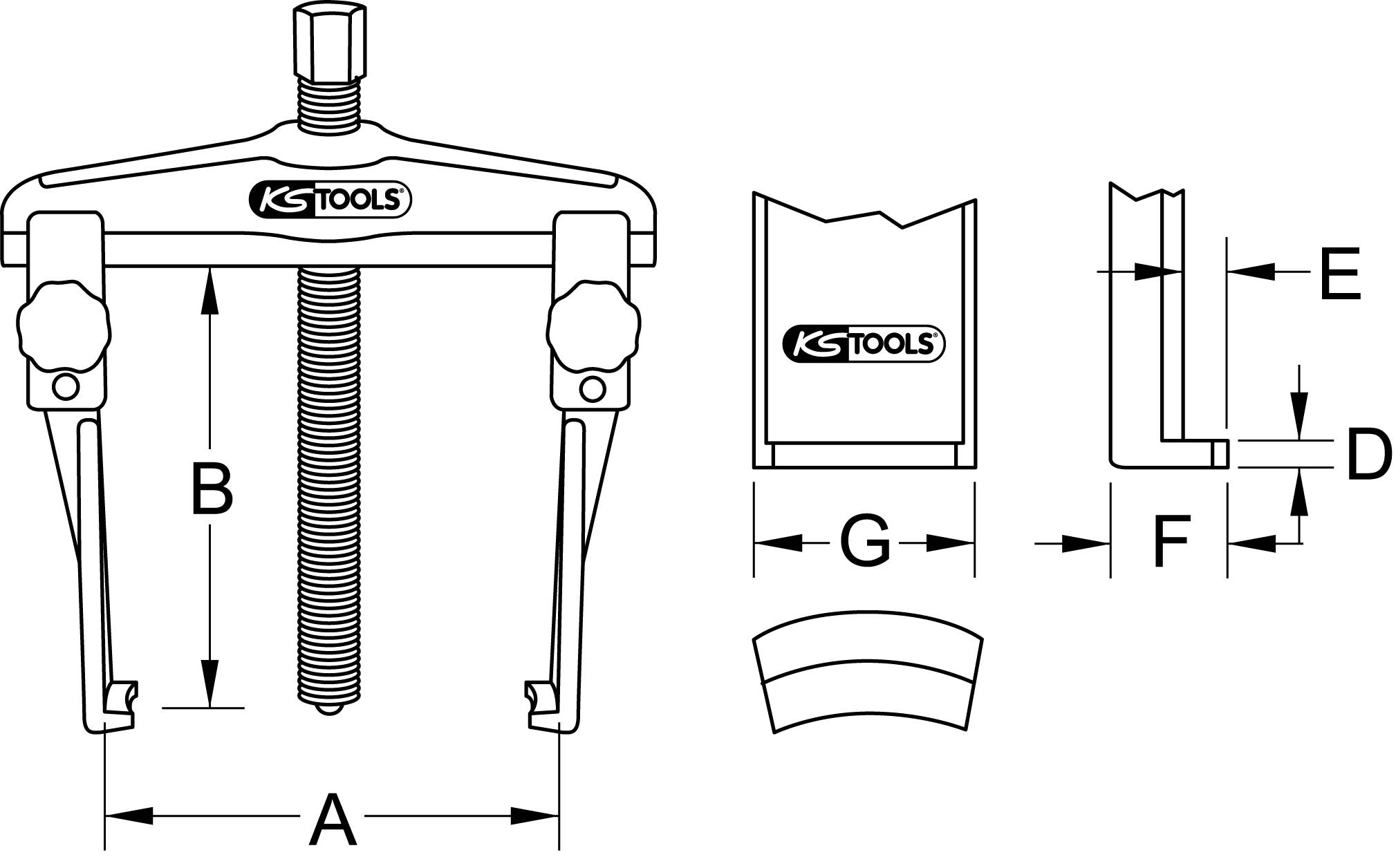

- Pull hook width G: 27 mm
- Pull hook total depth F: 13 mm
- Pull hook height D 3.6 mm
- Pull hook tip depth E: 6 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 17 mm
- Torque max Nm:80 Nm
- Shape: Slim design
- Function attribute 1: Reversible, interior/exterior removal
- Weight 1000 g
- Material1: Special tool steel
- max. Compressive strength KN: 45.0
- max. Compression force Nm: 80
- max. Pressure force t: 4.5
- Quick adjustment: Yes
- Clamping depth B in mm 100 mm
- Span A in mm 20-90 mm
- Wingspan exterior puller C: 70-130
- Span up to [mm]: 90 mm
- Span [mm]: 20 mm
- Spindle size mm: M14x1.5 x 140
- Variant items : 620.1101
- Clamping range
70 - 130 mm
- Tension/pressure capacity
4.5 t
- Weight
1000 g
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span width (max.)
130 mm
- Span depth (max.)
100 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695352 KS Tools 620.1101 Puller Clamping range (details) 70 - 130 mm No. of hooks 2
Description
With quick clamping functionIdeally suited for narrow spacesIt can be used as inside or outside puller by changing the hookHydraulic spindle can be retrofitted for G1/2" threadExtremely robust spindle with inductively hardened threadSpecial tool steel
