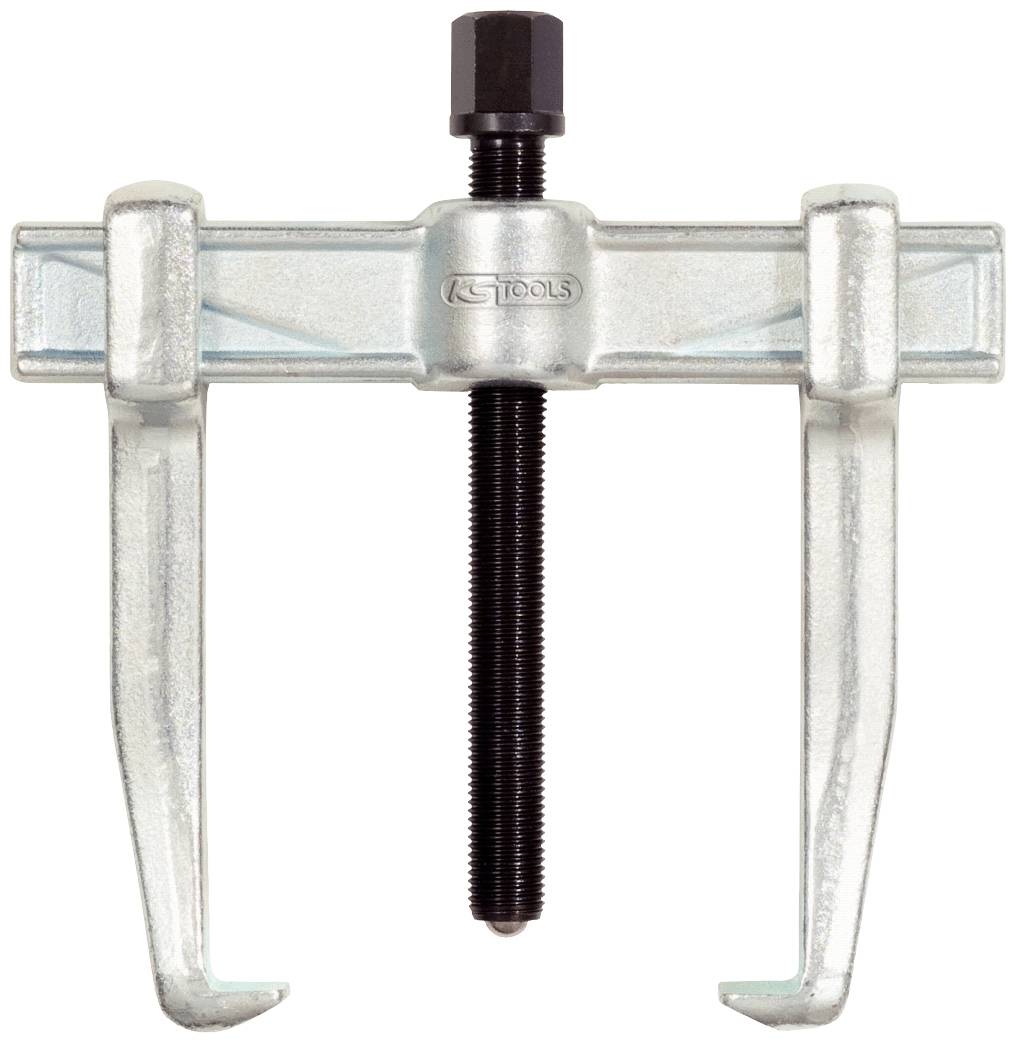

KS Tools 620.1306 Puller Clamping range (details) 40 - 350 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 242.86 / piece)
€ 242.86
plus VAT.
Only 3 Piece(s) available
Technical specifications

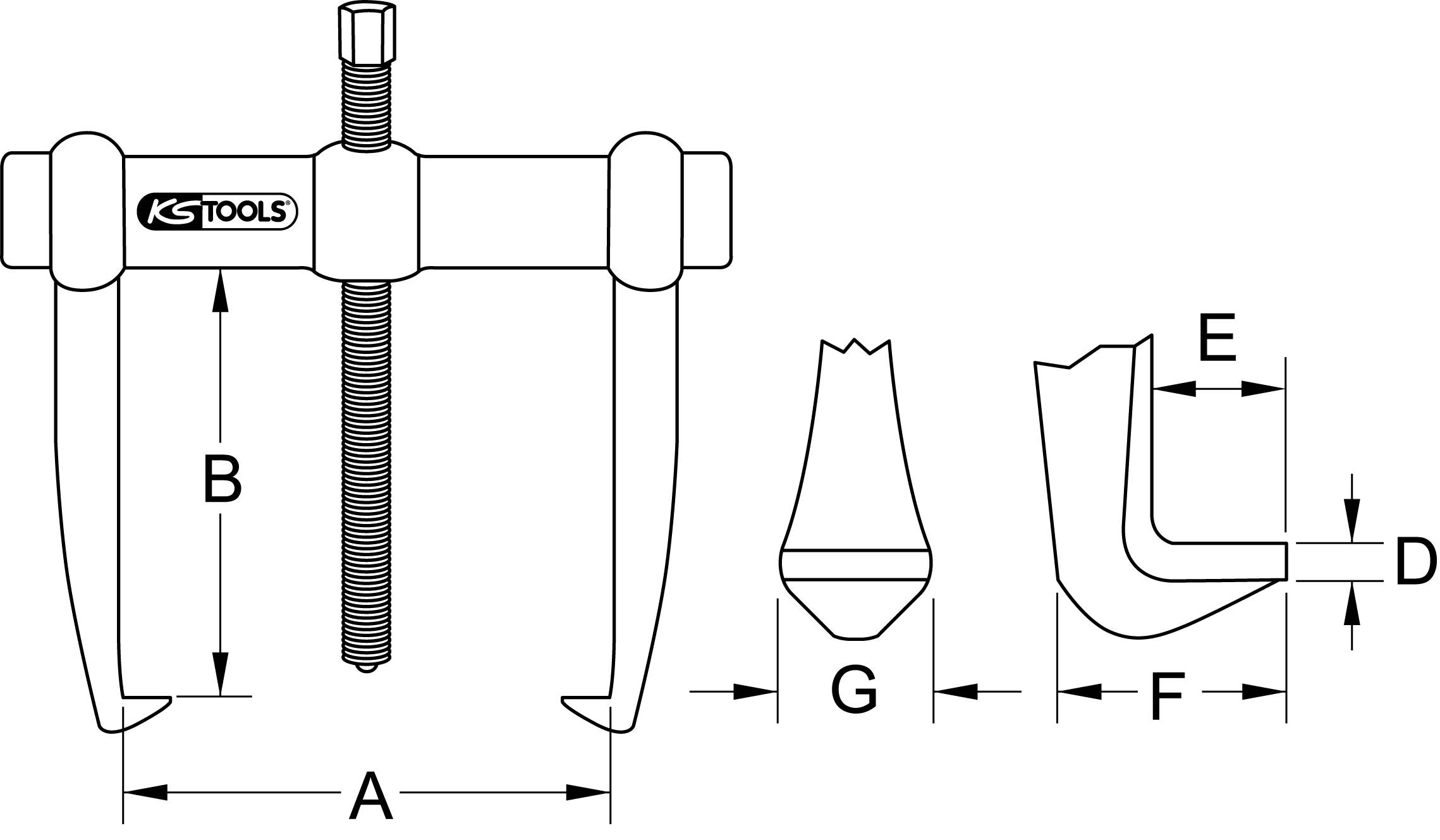

- Pull hook width G: 38 mm
- Pull hook total depth F: 43 mm
- Pull hook height D 6.5 mm
- Pull hook tip depth E: 23 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 27 mm
- Torque max Nm:150 Nm
- Function attribute 1: Reversible, interior/exterior removal
- Weight 7600 g
- Material1: Special tool steel
- max. Compressive strength KN: 80.0
- max. Compression force Nm: 150
- max. Pressure force t: 8
- Quick adjustment: No. nein
- Clamping depth B in mm 200 mm
- Span A in mm 40-350 mm
- Wingspan exterior puller C: 190-400
- Span up to [mm]: 350 mm
- Span [mm]: 40 mm
- Spindle size MM: G3/4"x14g x 280
- Variant items : 620.1301
- Clamping range
40 - 350 mm
- Tension/pressure capacity
8 t
- Weight
7600 g
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span width (max.)
350 mm
- Span depth (max.)
200 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695361 KS Tools 620.1306 Puller Clamping range (details) 40 - 350 mm No. of hooks 2
Description
It can be used as inside or outside puller by changing the hookHydraulic spindle can be retrofitted for thread G1/2" / G3/4"Extremely robust spindle with inductively hardened threadSpecial tool steel
This text is machine translated.
This text is machine translated.
