KS Tools 620.1705 Puller Clamping range (details) 80 -250 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 222.69 / piece)
€ 222.69
plus VAT.
Only 4 Piece(s) available
Technical specifications

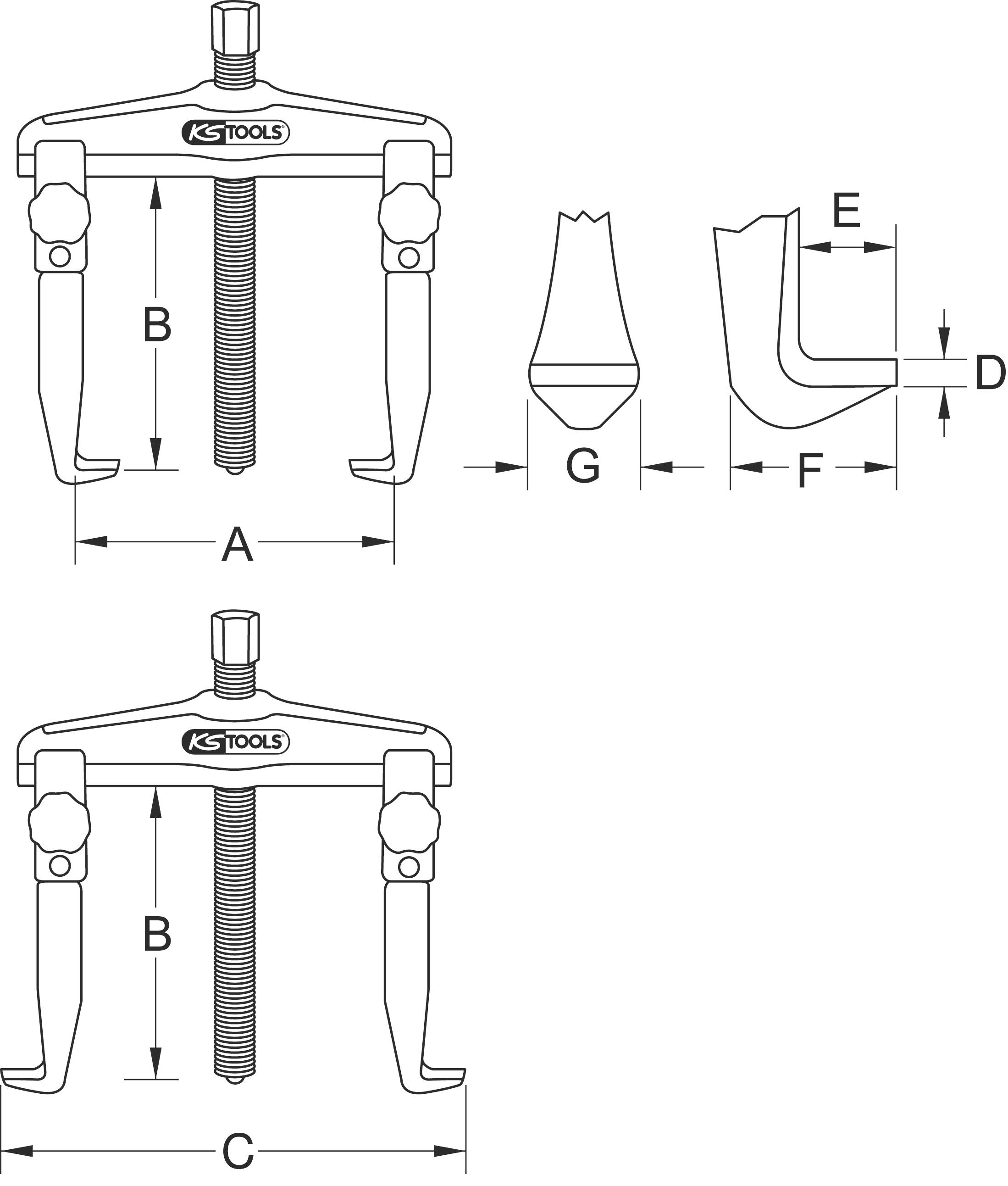

- Pull hook width G: 35 mm
- Pull hook total depth F: 54 mm
- Pull hook height D 5 mm
- Pull hook tip depth E: 25 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 27 mm
- Torque max Nm:320 Nm
- Function attribute 1: Reversible, interior/exterior removal
- Weight 7400 g
- Material1: Special tool steel
- max. Compressive strength KN: 110.0
- max. Compression force Nm: 320
- max. Pressure force t: 11
- Quick adjustment: Yes
- Clamping depth B in mm 200 mm
- Span A in mm 80-250 mm
- Wingspan exterior puller C: 160-330
- Span up to [mm]: 250 mm
- Span [mm]: 80 mm
- Spindle size MM: G3/4"x14g x 280
- Variant items : 620.1701
- Clamping range
80 -250 mm
- Tension/pressure capacity
11 t
- Weight
7400 g
- Content
1 pc(s)
- Hooks
2
- Product type
Puller
- Span width (max.)
250 mm
- Span depth (max.)
80 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695366 KS Tools 620.1705 Puller Clamping range (details) 80 -250 mm No. of hooks 2
Description
With quick clamping functionIt can be used as inside or outside puller by changing the hookHydraulic spindle can be retrofitted for thread G1/2" / G3/4"Extremely robust spindle with inductively hardened threadSpecial tool steel
