KS Tools 620.3801 Hydraulic puller Clamping range (details) 50 - 300 mm No. of hooks 2
EAN:
Part number:
Item no:
Number
Total (€ 310.08 / piece)
€ 310.08
plus VAT.
Only 1 Piece(s) available
Technical specifications

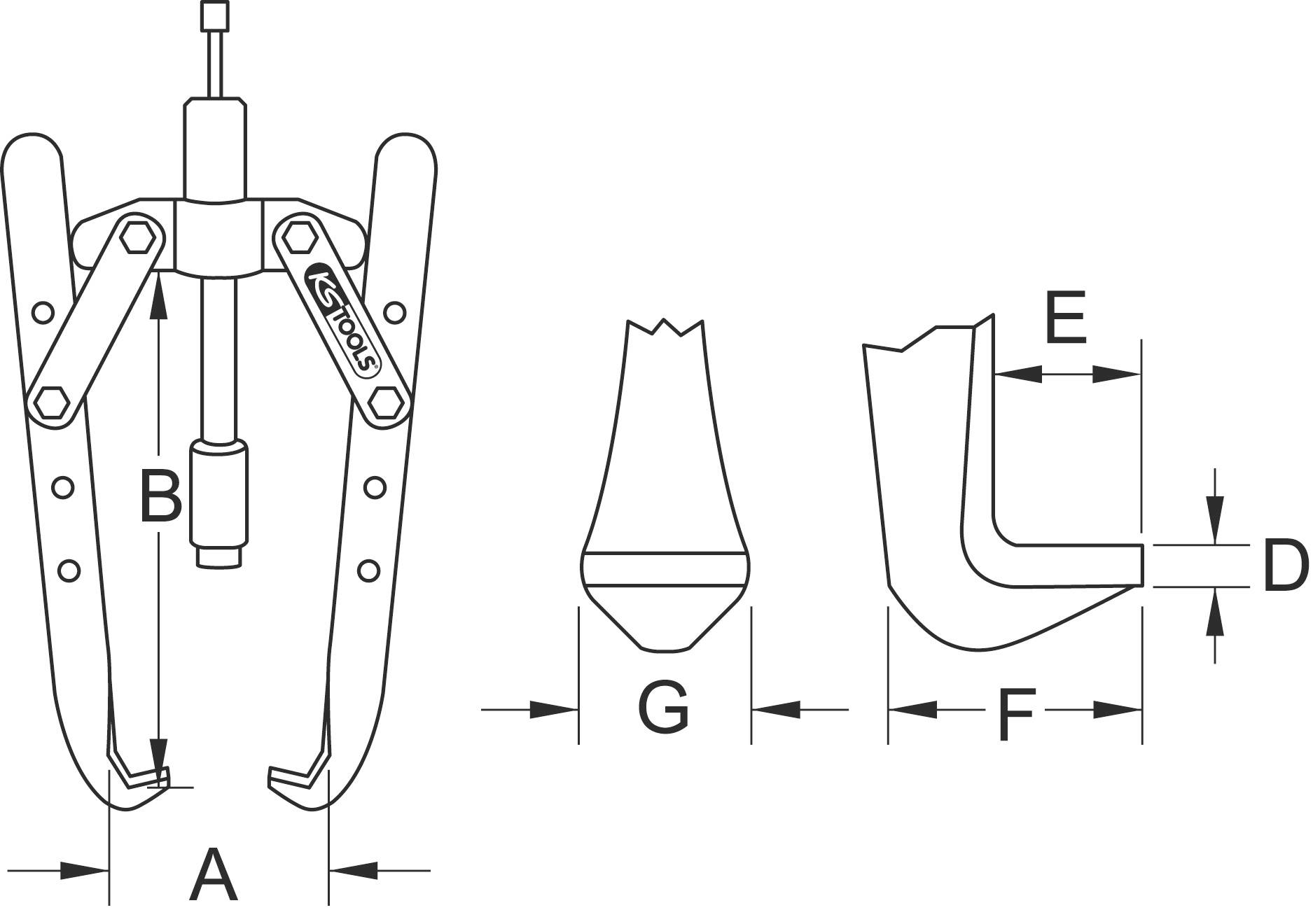

- Pull hook width G: 30 mm
- Pull hook total depth F: 48 mm
- Pull hook height D 5 mm
- Pull hook tip depth E: 25 mm
- Number of pull hooks: With 2 pull-off hooks
- Hexagon drive in mm: 32 mm
- Torque max Nm:60 Nm
- Functional attribute 1: Adjustable clamping depth
- Weight 5700 g
- Hydraulic spindle no.: 615.0002
- Material1: Special tool steel
- max. Compressive strength KN: 120.0
- max. Compression force Nm: 60
- max. Pressure force t: 12
- Quick adjustment: No. nein
- Clamping depth B in mm 175 mm
- Span A in mm 50-300 mm
- Span up to [mm]: 300 mm
- Span [mm]: 50 mm
- Variant items : 620.3801
- Additional outer hexagon drive in mm: 13 mm
- Clamping range
50 - 300 mm
- Tension/pressure capacity
12 t
- Weight
5700 g
- Content
1 pc(s)
- Hooks
2
- Product type
Hydraulic puller
- Span width (max.)
300 mm
- Span depth (max.)
175 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2695390 KS Tools 620.3801 Hydraulic puller Clamping range (details) 50 - 300 mm No. of hooks 2
Description
The clamping depth of hooks can be adjustedDifferent hook variants can be retrofittedIncluding hydraulic pressure spindleLess force requiredSpecial tool steel
